RB1G CHASSIS

W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/

W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A

282

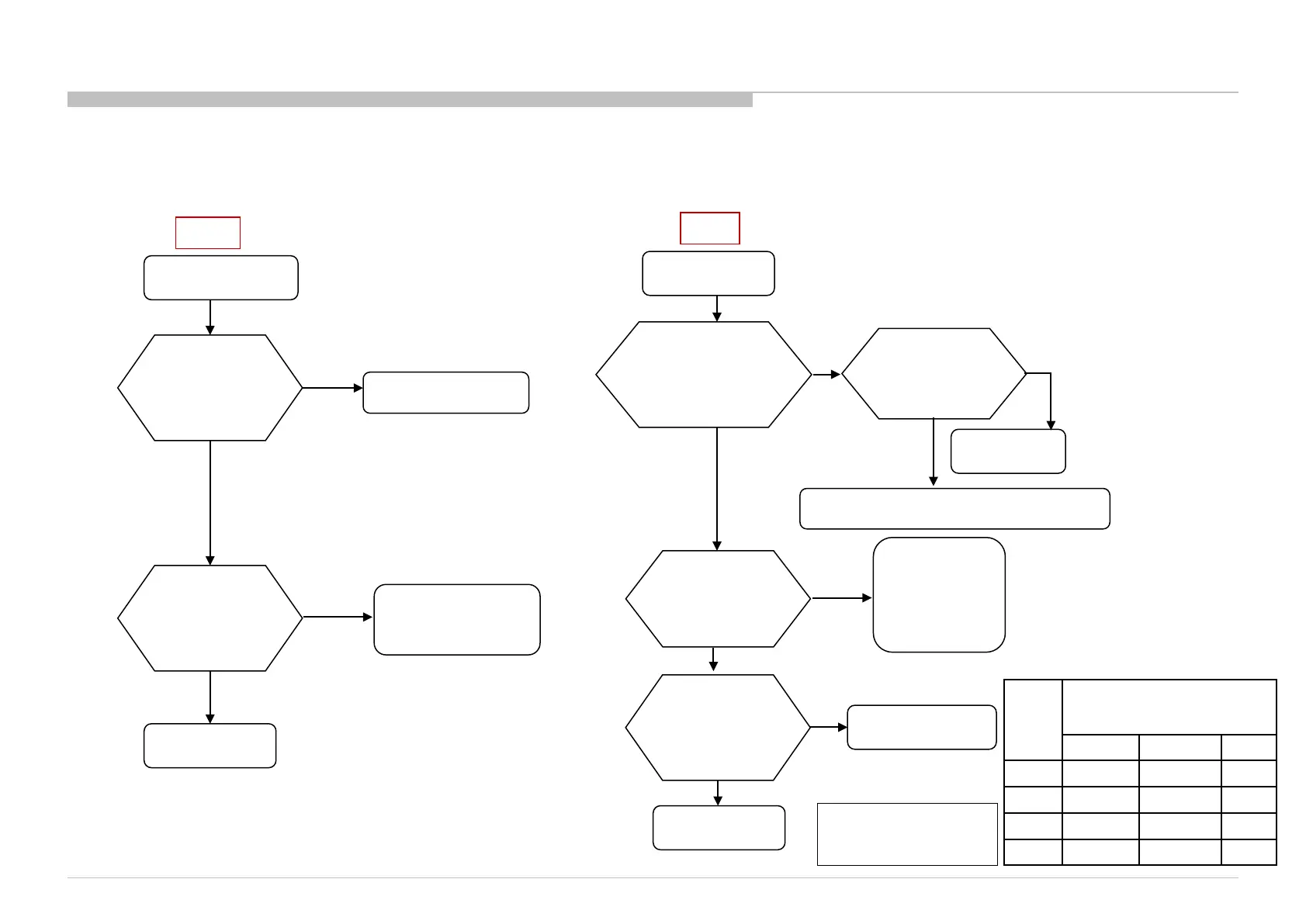

Troubleshooting

3-2-3. LED BLINKING 3x (Audio Error) – BKE, BKX, BKJ, BLE, BLX and BLJ board only

Check 19.5V

(at fuse F4601)

to GND

impedance

F4601,IC4601,etc

(B* Board)

Replace F4601

High

enough

Low impedance

IC4601

burn or broken ?

Replace IC4601

Yes

Check broken parts

around IC4601

IC4601,etc

(B* Board)

IC4601 or parts around IC4601 NG

Check the IC4601

Out pin 38, 42, 43, 47

Switching 0V to 19V

around 300-400kHz

Yes

Check the CN4601

DC level ~9.7V

(at JL4621~JL4624)

L4601-L4604

C4611-C4614

Yes

IC4601 NG

Check the IC4601

I2S line pin

4, 12, 15, 16 (at

CL4601~CL4604)

IC9000 NG

Check the IC4601

pin 18 (at CL4606)

is HIGH?

Yes

Solder NG

Note:

(AYU2/Ayu2L) – IC9000

(Brownie)- IC9001

Size B* Board Type

(Segment: LW)

OTHERS EUROPE JP

24” BLX BLE BLJ

32” BKX/BLX BKE/BLE BKJ/BLJ

42” BKX/BLX BKE/BLE BKJ/BLJ

50” BLX BLE -
