RB1G CHASSIS

W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/

W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A

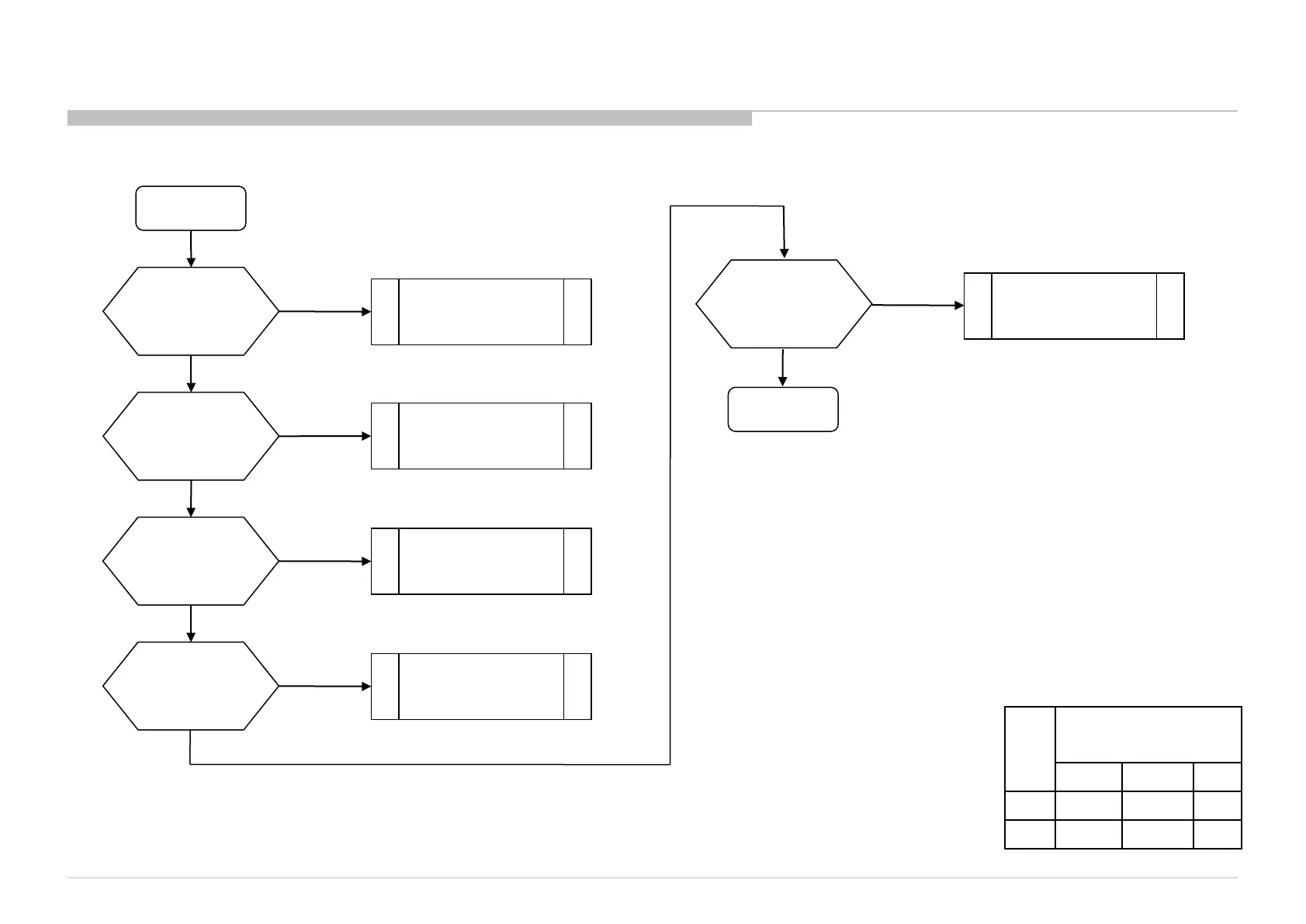

3-1-1. No POWER DC / DC Converter Check

Troubleshooting

START

Check SL9111 Voltage.

Is the voltage 1V?

Check SL9109 Voltage.

Is the voltage 5V?

Check SL9103 Voltage.

Is the voltage 3.3V?

Check SL9107 Voltage.

Is the voltage 1.5V?

END

Check F9105

Check F9104

Check F9102

yes

Check SL9105 is

it 1.18V?

yes

Check F9106

Size B* Board Type

(Segment: LW)

OTHERS EUROPE JP

32” BKX BKE BKJ

42” BKX BKE BKJ
