Sony RB1G - Method to disassemble Bracket Top and Chassis Box

To Next Page

To Previous Page

RB1G CHASSIS

W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/

W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A

Safety Notes

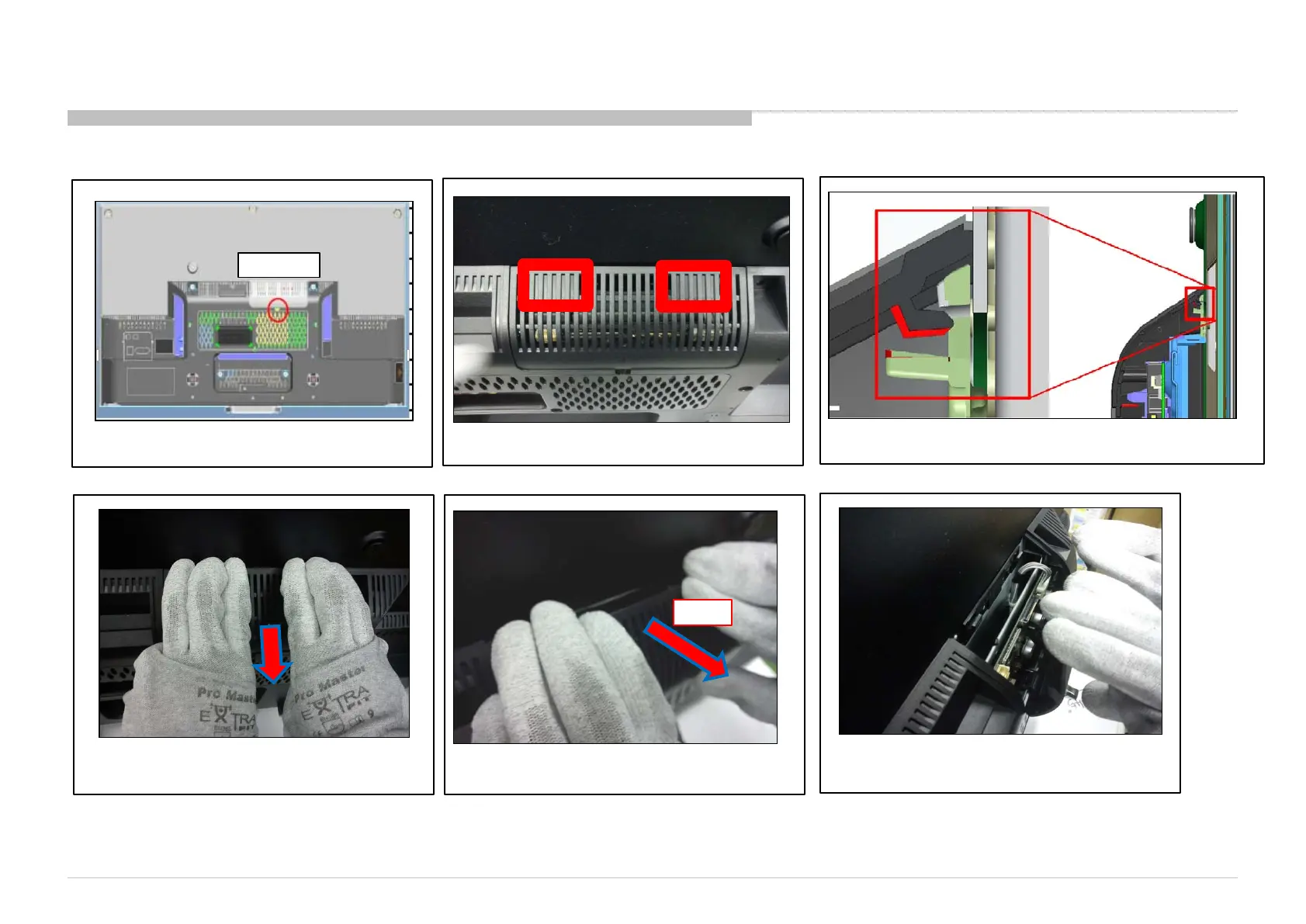

1-8. Method to disassemble Bracket Top and Chassis Box

1-8-1 . Method to disassemble Bracket Top

1. Remove One Screw from Bracket Top.

2. Highlighted is the hook area.

Bracket Top

3. Side view of Bracket Top hook area .

4.Pull Bracket Top at the hook area to make a

gap.

Pull

6.Take out Bracket Top.
