RB1G CHASSIS

W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/

W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A

Troubleshooting

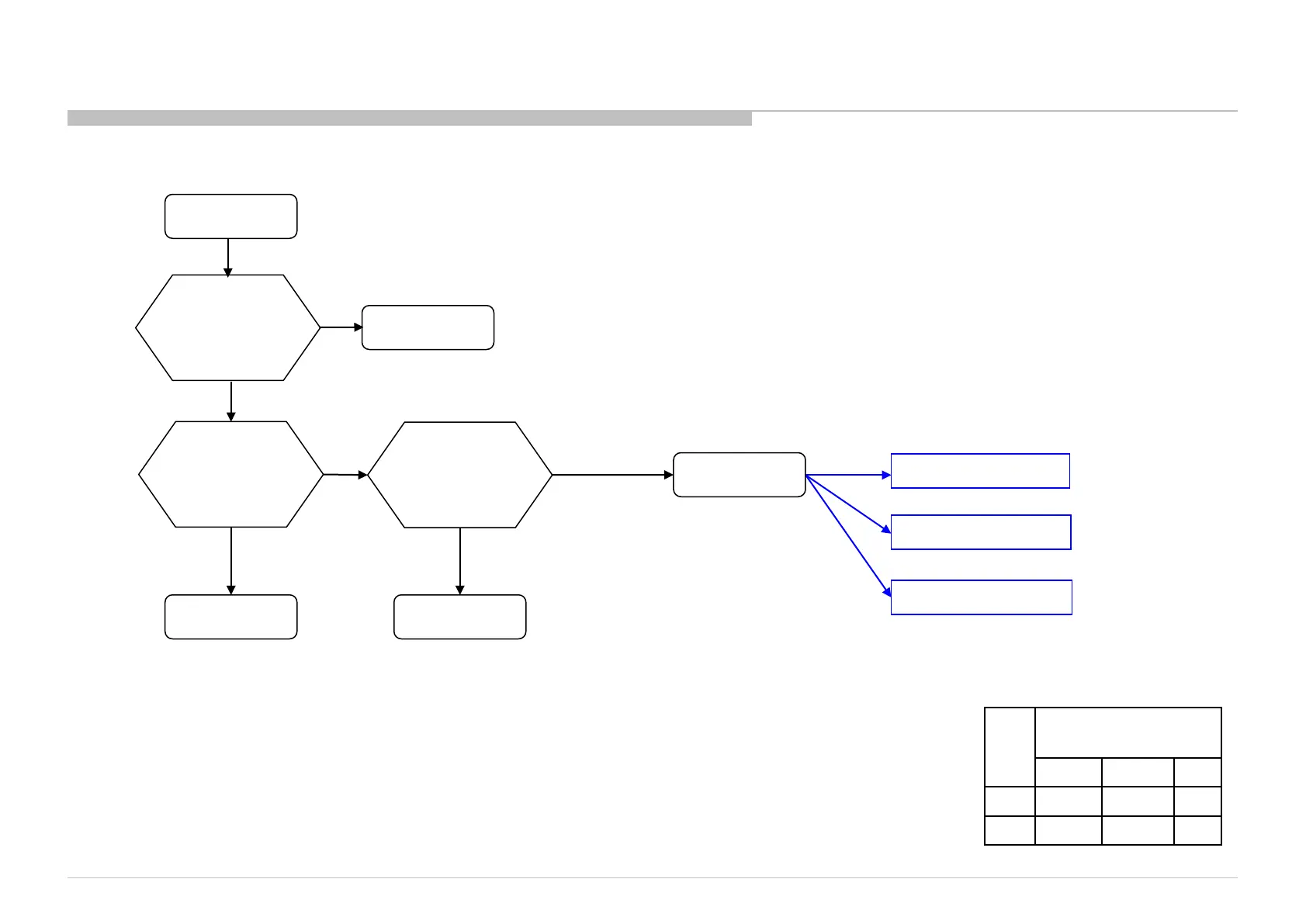

3-3. No Sound

No Sound

Change the Speaker

Harness

Speaker Harness

Replace

the B* Board

Speaker

Check the

“Speakers setting”

Change to

“TV Speaker”

“Audio System”

“TV Speakers”

Symptom

improvement

Symptom

improvement

No Sound: Audio

No Sound: Tuner

No Sound: HDMI

B* Board

Size B* Board Type

OTHERS EUROPE JP

32” BKX BKE BKJ

42” BKX BKE BKJ
