Sony RB1G - Slide Number 199

To Next Page

To Previous Page

RB1G CHASSIS

W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/

W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A

199

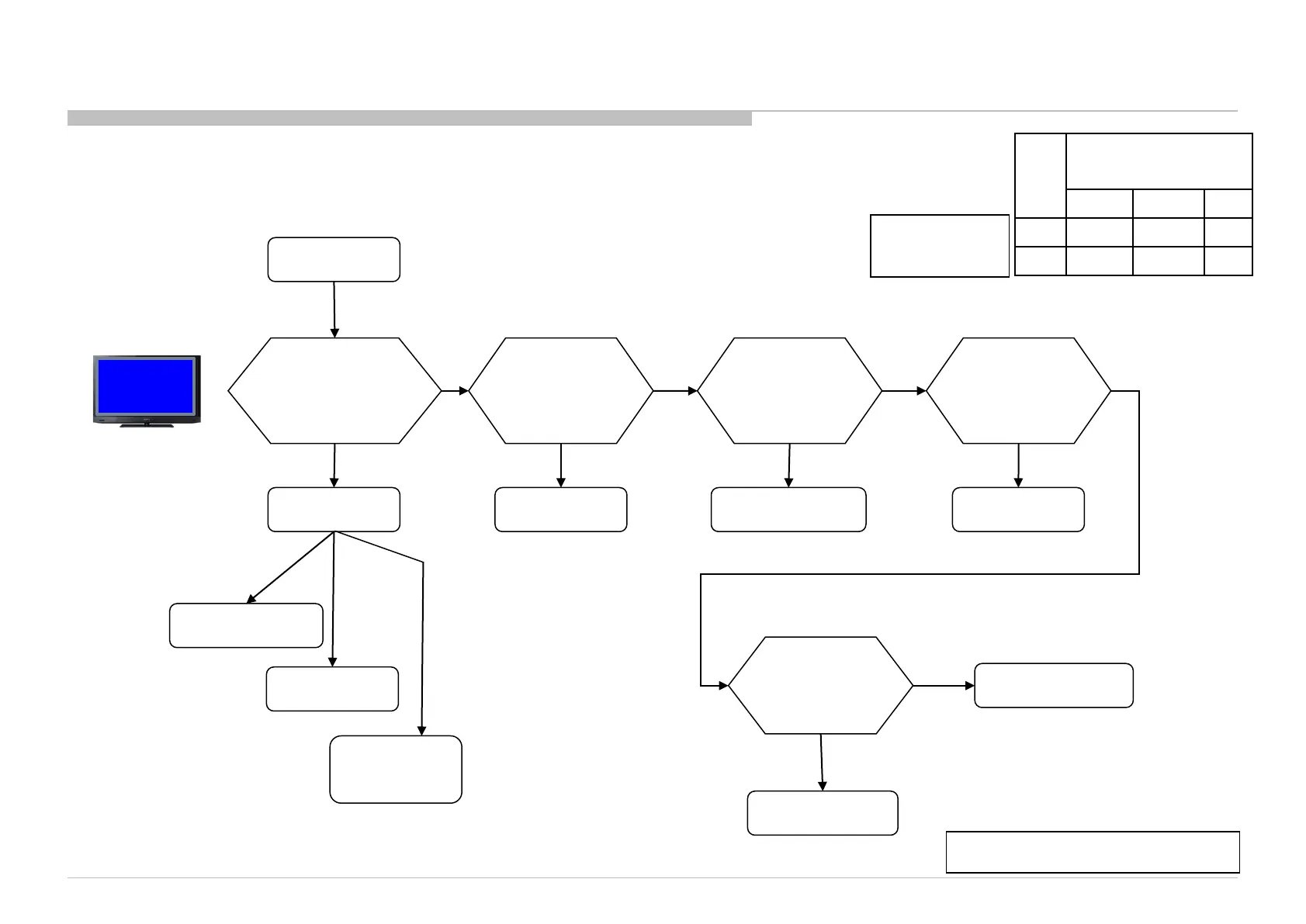

3-5-16. NO PICTURE: LD Models only

Troubleshooting

No Picture

All blue picture is on?

(Factory SW is booted.)

B* Board

Yes

Replace

the B-Tcon, Tcon-LD*

FFC

B-Tcon, Tcon-LD*

FFC

B* Board

Check the G*(n/a)

- LD*

Harness

Change B* Board

G* Board (others)

LCD Panel

(T-con, LD*)

Change G* Board

(others)

Symptom

improvement

Symptom

improvement

Symptom

improvement

Tuner No Picture

HDMI No Picture

EXT. Video Input

No Picture

・

3-5.No Picture

Note:

(AYU2) – IC9000

(Brownie)- IC9001

Size B* Board Type

(Segment: LW)

OTHERS EUROPE JP

32” BKX BKE BKJ

42” BKX BKE BKJ

Note:

G BOARD : ( N/A FOR THIS MODEL)
