RB1G CHASSIS

W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/

W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A

Detailed check

CN3102 signal path

Pin 1, pin 2, pin 3

Check wave between

R3149/R3150

and IC9001

Detailed check

CN3102 pin13,

pin 14 path

Check wave between

C3126/C3127/C3128

and IC9001

Check if input OSD

is GREY OUT

No Picture

Detailed TMDS path

check between

IC9001 and IC5009

Confirm other analog

Input working

Ayu2 [IC9000]

Problem

Check signal

between IC9001 and

IC5009 [RB5008]

Brownie [IC9001]

Problem

Check CN3102

Connection,

PC_CON_DET at

C7012

HDMI EQ [IC5009]

Problem

Confirm HDMI

input working

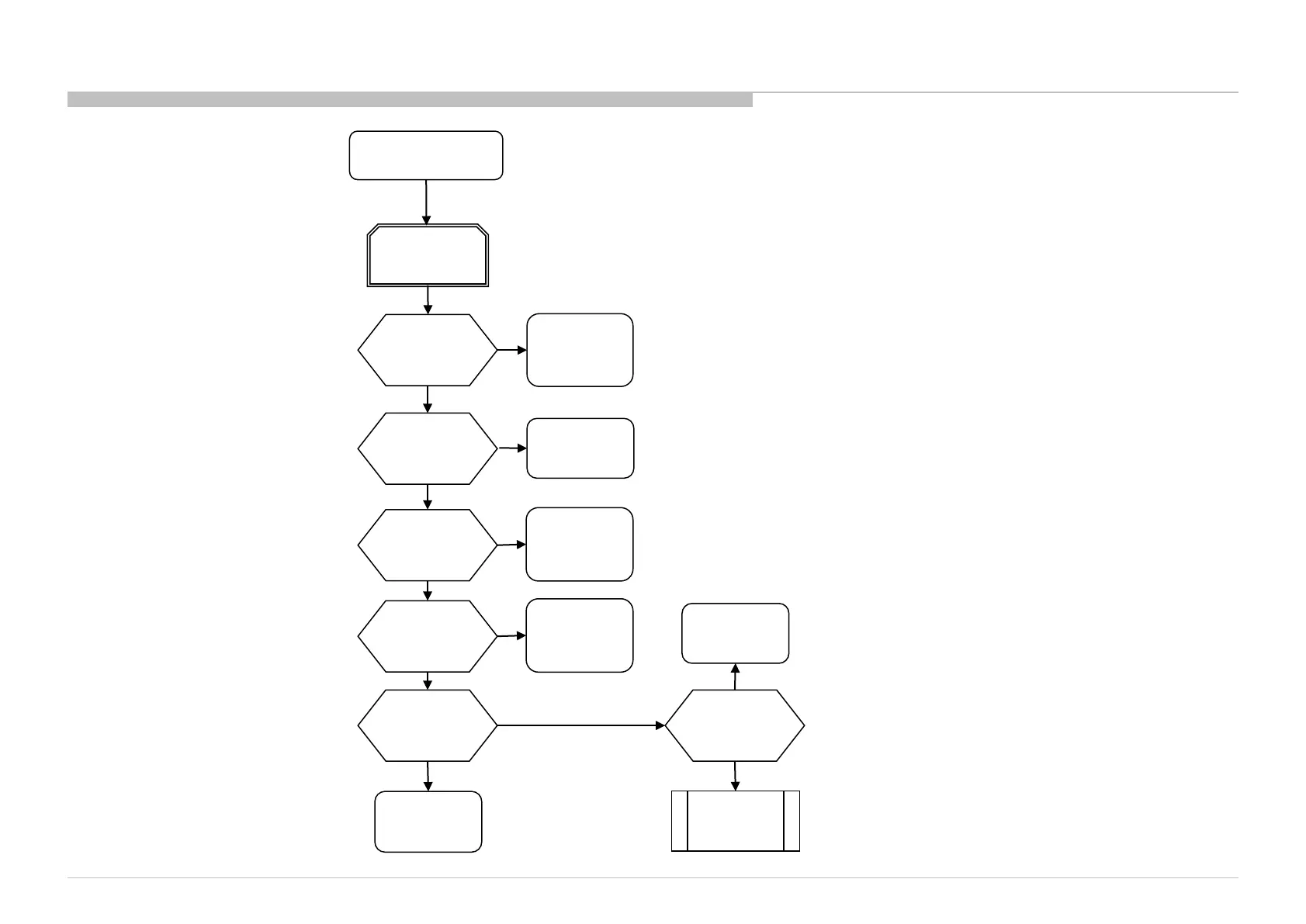

No Picture B2B

Troubleshooting

3-5. No Picture

3-5-2. No Picture HOTEL_B2B (BA2-S HOTEL_B2B)
