RB1G CHASSIS

W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/

W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A

3-9. Light Sensor Error

209

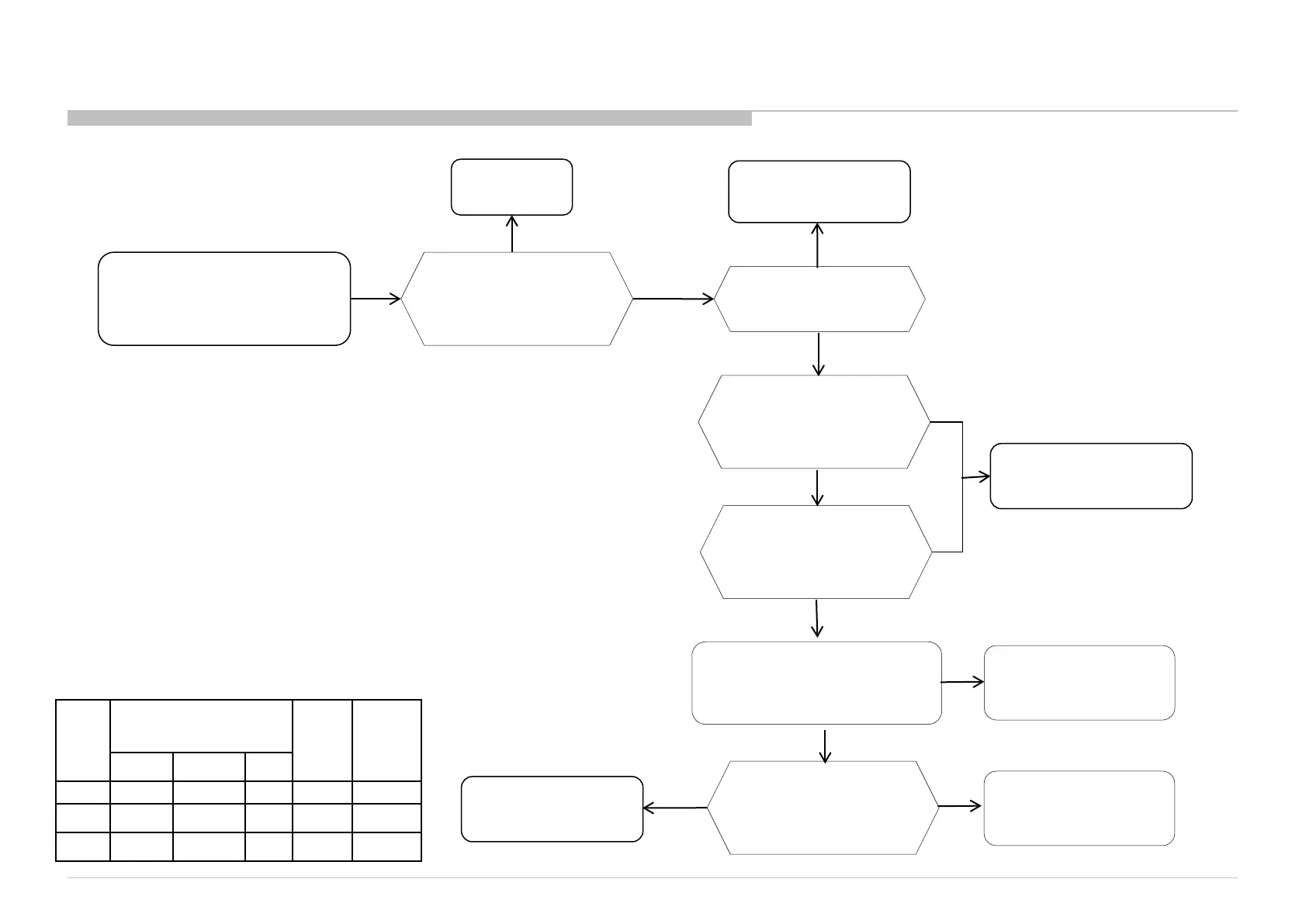

Troubleshooting

Backlight doesn’t change

when ambient lighting

level changed

Check UI setting for light

sensor .

Make sure it is “on”

Check current Software

Change B* Board

Update Software

Change the UI

setting to “:ON”

Check whether harness is

Connected on HIR and

HSC Board

Connect the Harness

properly

Check whether

harness is

Connected on HSC

and B* Board

Change Smart Core

Problem with Smart Core

HSC or HIR

or HSC-HIR harness

Change

HSC-B* board Harness

HSC-B* board harness

problem

Size B* Board Type H*

Board

Type

H**

Board

Type

OTHERS

EUROPE JP

24” BKX BKE BKJ

HIR HSC

32” BKX BKE BKJ

HIR HSC

42” BKX BKE BKJ

HIR HSC
