Sony RB1G - Slide Number 301

To Next Page

To Previous Page

RB1G CHASSIS

W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/

W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A

301

Troubleshooting

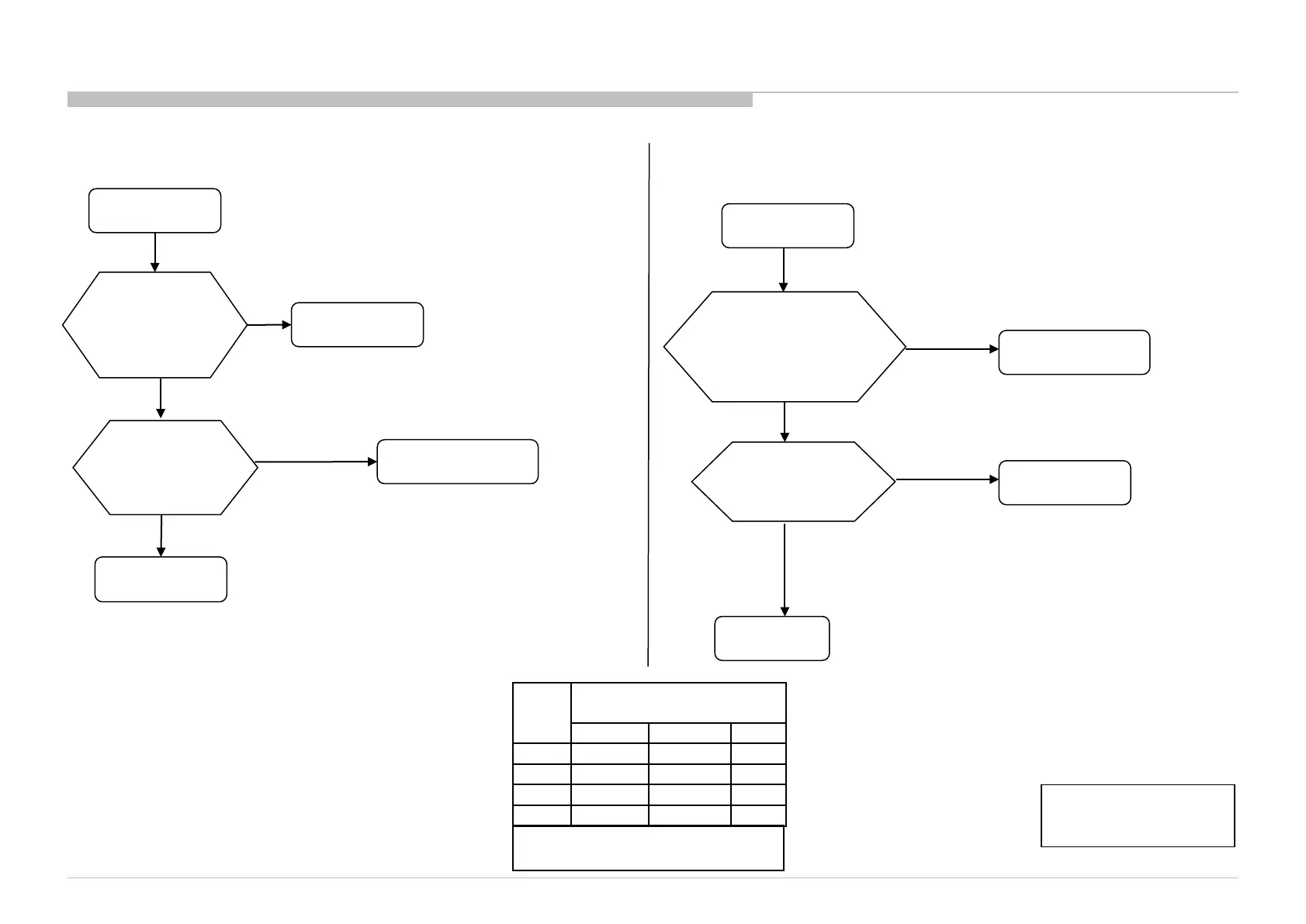

3-2-6. LED Blinking 6x (Backlight Error)

6-time blinking

Check

BACKLIGHT_MON

on the B Board

B Board

Low

G* Board

High

Symptom

improvement

Change G* Board

*Proceed to next step

if no G-Board

Panel

Note:

(AYU2/Ayu2L) – IC9000

(Brownie)- IC9001

Note:

G BOARD : ( N/A FOR THIS MODEL)

Refer to LED Blinking 4x for measuring points

3-2-7. LED Blinking 7x (Temperature Error)

7-time blinking

B* Board

Yes

Panel

Change B* Board,

and Aging a few hours

Setting circumstance

is OK?

Temperature,

Ventilation, etc.

Set to another

location, etc.

Symptom

improvement

For Ayu2/Ayu2L(IC9000)

replacement check related

section

Size B* Board Type

(Segment: LW)

OTHERS EUROPE JP

24” BLX BLE BLJ

32” BKX/BLX BKE/BLE BKJ/BLJ

42” BKX/BLX BKE/BLE BKJ/BLJ

50” BLX BLE -
