Sony RB1G - Slide Number 193

To Next Page

To Previous Page

RB1G CHASSIS

W600A/ W603A/ W605A/ W607A/ W650A/ W651A/ W653A/

W654A/ W655A/ W656A/W657A/ W658A/ W670A/ W674A

193

Troubleshooting

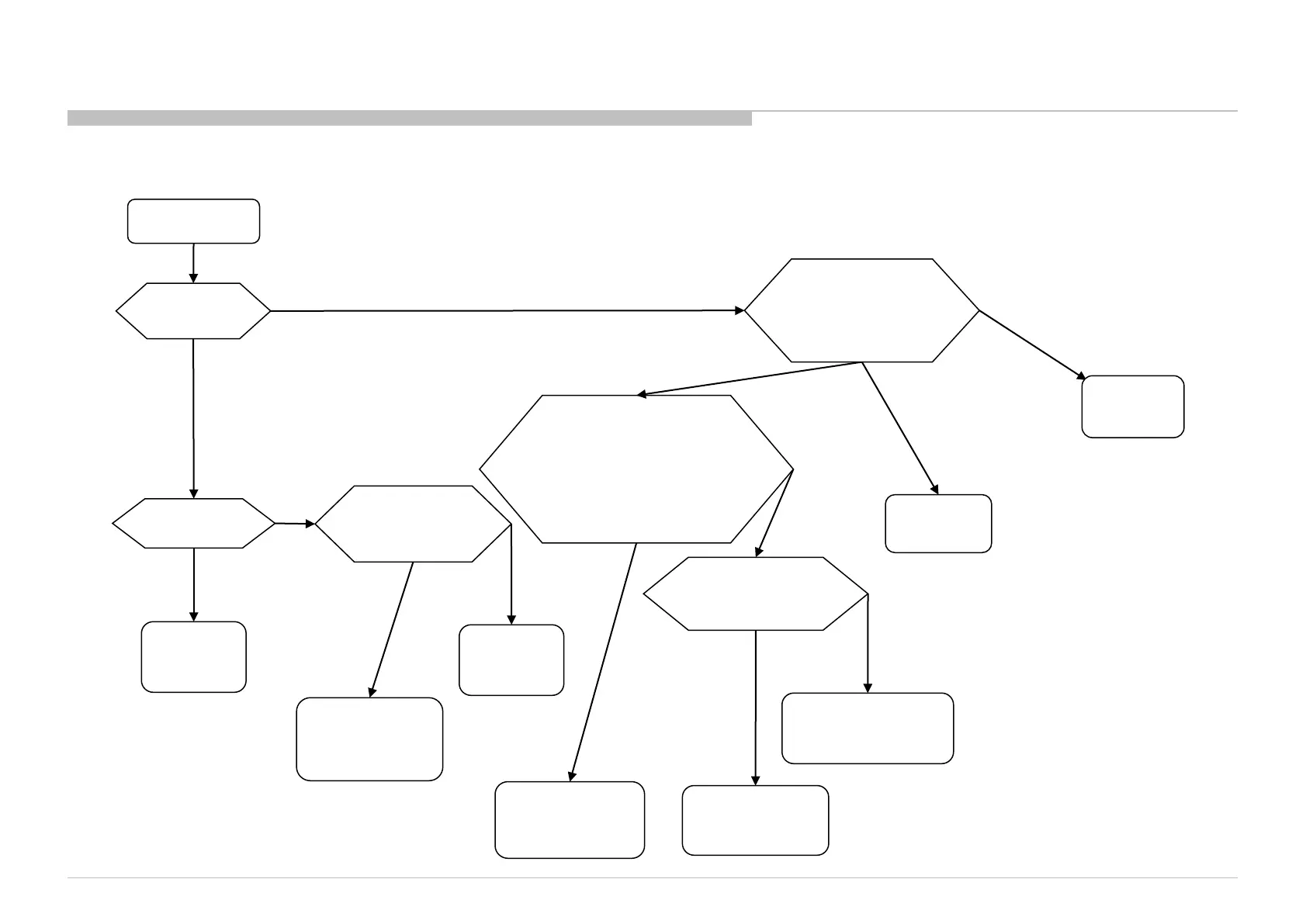

3-5. No Picture

3-5-14. NO PICTURE: MHL (BA2 & BM) (not applicable for this model)

No Picture

Check 68pin

of IC5009

High

Low

Check Source equipment

by Reference TV set

(For example, Samsung TV(UN46ES7000)

, Toshiba TV(42WL863))

or VA-1836

Check CBUS_HPD4 line (Pin 19 CN5001)

and TMDS(D0+/D0-) lines (Pin 7 & 9 CN5001)

by the IC5009 side

Replace

IC5009

CBUS_HPD4

line is NG

Replace

RB5020

Only TMDS lines

are NG

All lines

are OK

Check the settings of

Source equipment

Low

Inform the designer

of it

Check DSCL_4

Check RB5019,

D5001 and D5002

Replace

NG part

Change

MHL cable

High

Check +5.0V_MHL

and STBY_+3.3V

Check HDMI picture

in this input

Check “NO PICTURE

– HDMI” flow
