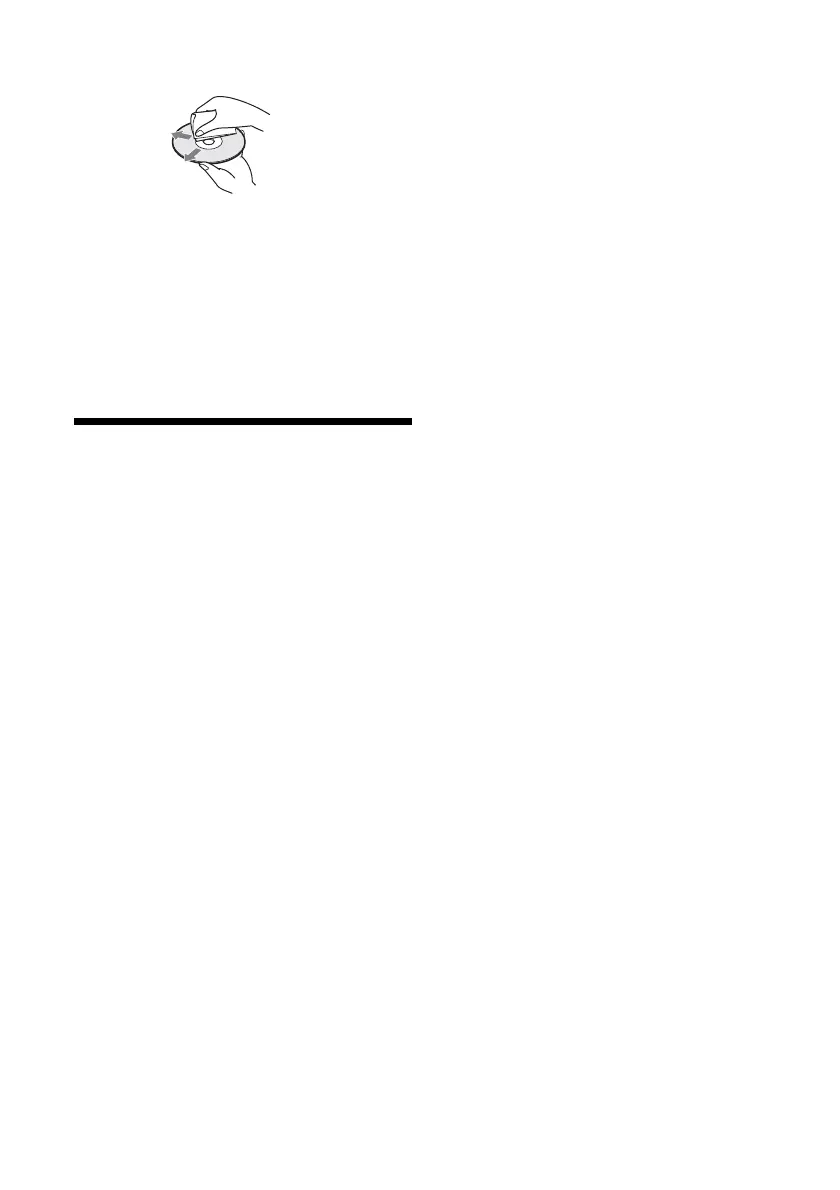

• Clean the disc with a cleaning cloth. Wipe the
disc from the center out.
• Do not use solvents such as benzine, thinner,
commercially available cleaners, or anti-static
spray intended for vinyl LPs.
• Do not use the following discs.
– A disc that has a non-standard shape (e.g.,
card, heart).
– A disc with a label or sticker on it.
– A disc that has cellophane tape or sticker
adhesive on it.
Specifications
System
Laser: Semiconductor laser
Channel coverage:
NTSC (national television system committee)
VHF (very high frequency): 2 to 13/
UHF (ultra high frequency): 14 to 69/
CATV (cable television): A-8 to A-1, A to W,
W+1 to W+84
Video reception: Frequency synthesizer system
Audio reception: Split carrier system
Antenna: 75-ohm antenna terminal for VHF/
UHF (very high frequency/ultra high
frequency)
Timer: Clock: Quartz locked/Timer indication:
12-hour cycle (digital)/Power back-up
duration: 1 hour
Video recording format: MPEG (moving
picture experts group) Video
Audio recording format/applicable bit
rate: Dolby Digital 2 ch/256 kbps
Inputs and outputs
LINE OUT (line out)
(AUDIO): Phono jack/2 Vrms/10 kilohms
(VIDEO (video)): Phono jack/1.0 Vp-p
(S VIDEO (S video)): 4-pin mini DIN/
Y:1.0 Vp-p, C: 0.286 Vp-p
LINE IN (line in) 1/2/3
(AUDIO): Phono jack/2 Vrms/more than
22 kilohms
(VIDEO (video)): Phono jack/1.0 Vp-p
(S VIDEO (S video)): 4-pin mini DIN/
Y:1.0 Vp-p, C: 0.286 Vp-p
DV IN (digital video in): 4-pin/i.LINK S100
DIGITAL OUT (digital out) (OPTICAL
(optical)): Optical output jack/–18 dBm
(wave length: 660 nm)
DIGITAL OUT (digital out) (COAXIAL
(coaxial)): Phono jack/0.5 Vp-p/75 ohms
COMPONENT VIDEO OUT (component
video out) (Y, PB, PR):
Phono jack/Y: 1.0 Vp-p/
PB, PR: interlace*=0.648 Vp-p,
progressive or interlace**=0.7 Vp-p
* “Y/Pb/Pr Out Black Level” is “On”
** “Y/Pb/Pr Out Black Level” is “Off”
General
Power requirements: 110 – 240 V AC, 50/
60 Hz
Power consumption: 30 W
Dimensions (approx.): 430 × 65 × 328 mm
(17 × 3 × 13 in.) (width/height/depth) incl.
projecting parts
Mass (approx.): 4.1 kg (9.0 lb)
Operating temperature: 5ºC to 35ºC (41ºF to
95ºF)
Operating humidity: 25% to 80%
Supplied accessories:
Audio/video cord (1)
Power cord (1)
Antenna cable (1)
Remote commander (remote) (1)
Size AA (R6) batteries (2)
Plug adapter (1)
Specifications and design are subject to change
without notice.
