Hookups and Settings
z Hint
For correct speaker location, see the operating
instructions supplied with the connected components.
b Notes
• Do not connect your TV’s audio output jacks to the
LINE IN (line in) (R-AUDIO-L (right-audio-left))
jacks at the same time. This will cause unwanted noise
to come from your TV’s speakers.
• In the connection A, do not connect the LINE IN (line
in) (R-AUDIO-L (right-audio-left)) and LINE OUT
(line out) (R-AUDIO-L (right-audio-left)) jacks to your
TV’s audio output jacks at the same time. This will
cause unwanted noise to come from your TV’s
speakers.
• In the connection B, after you have completed the
connection, make the appropriate settings under
“Audio Connection” in “Easy Setup” (page 25).
Otherwise, no sound or a loud noise will come from
your speakers.
• With the connection B, the surround sound effects of
this recorder cannot be used.
*1
Manufactured under license from Dolby Laboratories.
“Dolby,” and the double-D symbol are trademarks of
Dolby Laboratories.
*2
“DTS” and “DTS Digital Out” are trademarks of
Digital Theater Systems, Inc.
Step 5: Connecting the AC
power cord
Connect the supplied power cord to the AC IN
(AC in) terminal of the recorder. Then plug the
recorder and TV power cords into an AC outlet.
After you connect the power cord, you must
wait for a short while before operating the
recorder. You can operate the recorder once the
front panel display lights up and the recorder
enters standby mode.
If you connect additional equipment to this
recorder (page 28), be sure to connect the power
cord only after all connections are complete.

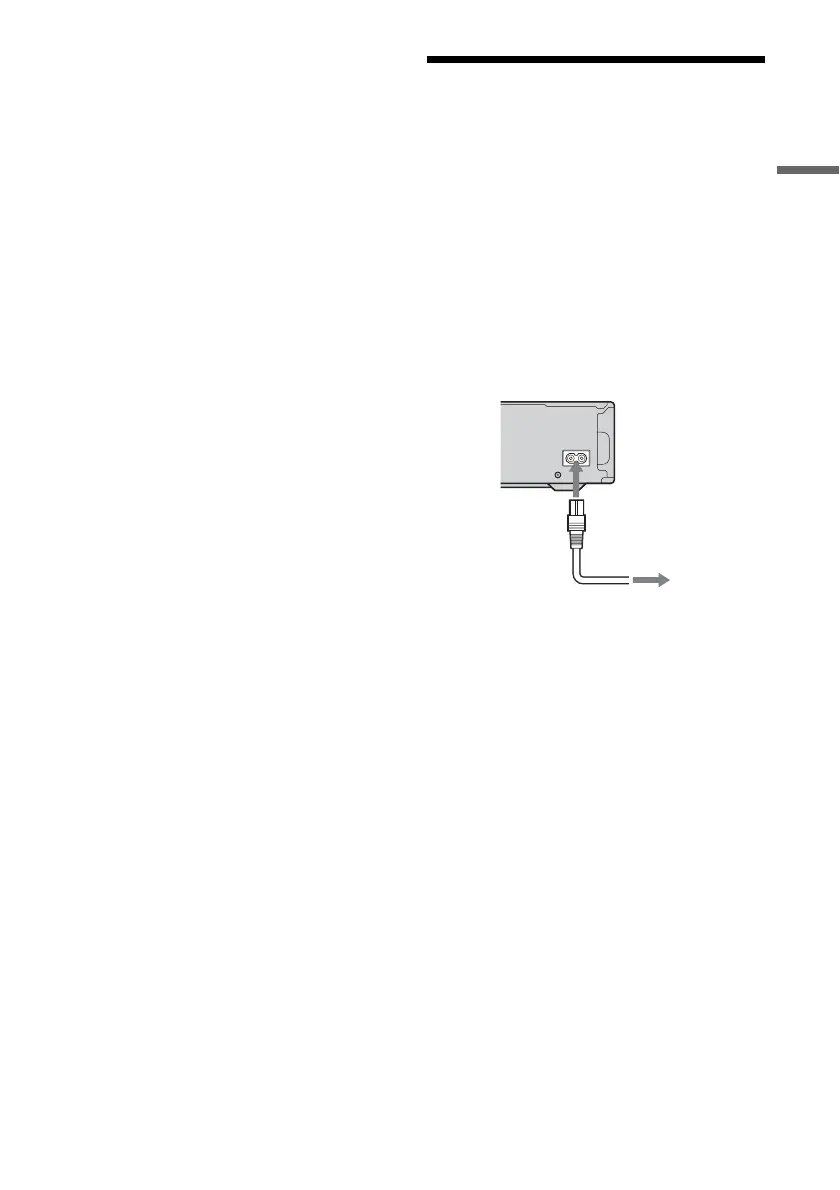

~ AC IN
to AC outlet
to AC IN (AC in)
1
2
To Next Page
