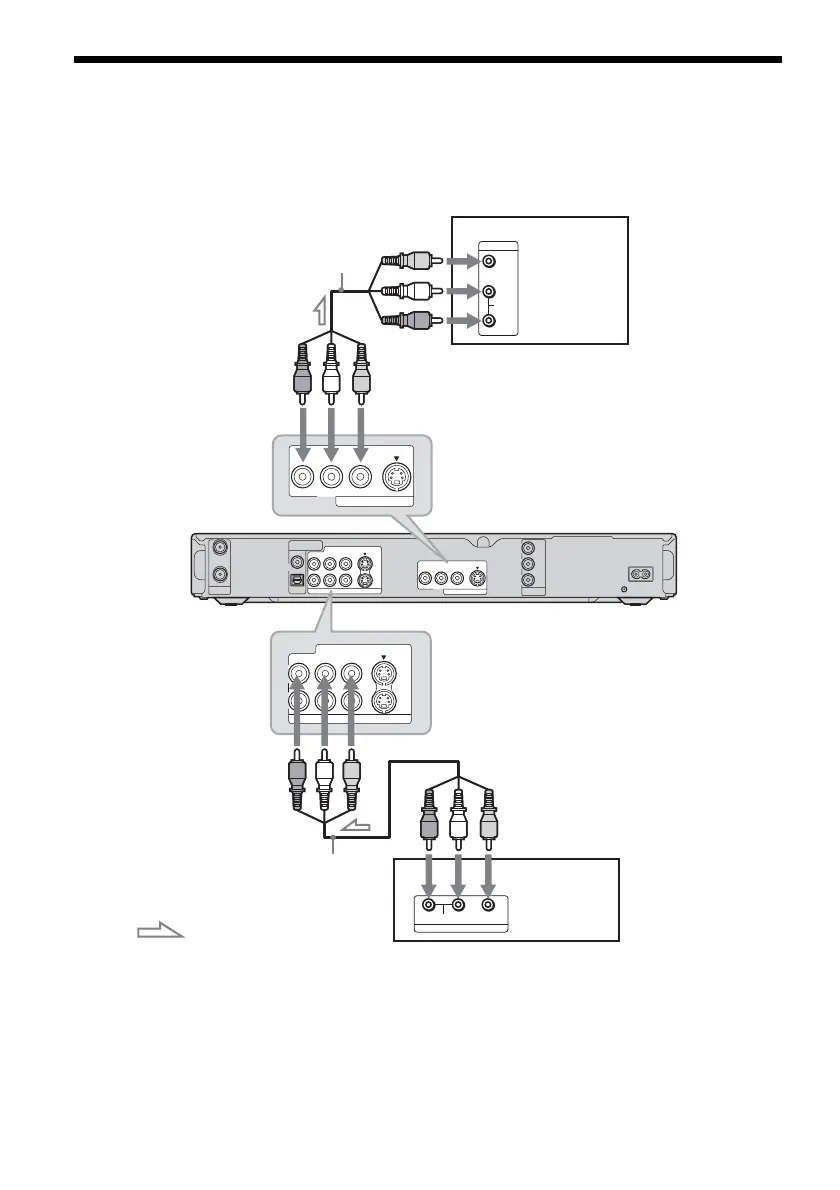

Connecting to a Satellite or Digital Tuner
Connect a satellite or digital tuner to this recorder using the LINE IN (line in) 1 jacks. Disconnect the
recorder’s mains lead from the mains when connecting the tuner.
To use the Synchro-Rec function, see below.
If you want to use the Synchro Rec function
This connection is necessary to use the Synchro-
Recording function. See “Recording from
connected equipment with a timer (Synchro Rec)”
on page 52.
b Notes
• Synchro-Recording does not work with some tuners.
For details, see the tuner’s operating instructions.
• If you disconnect the recorder’s mains lead, you will
not be able to view the signals from the connected
tuner.
