Additional Information

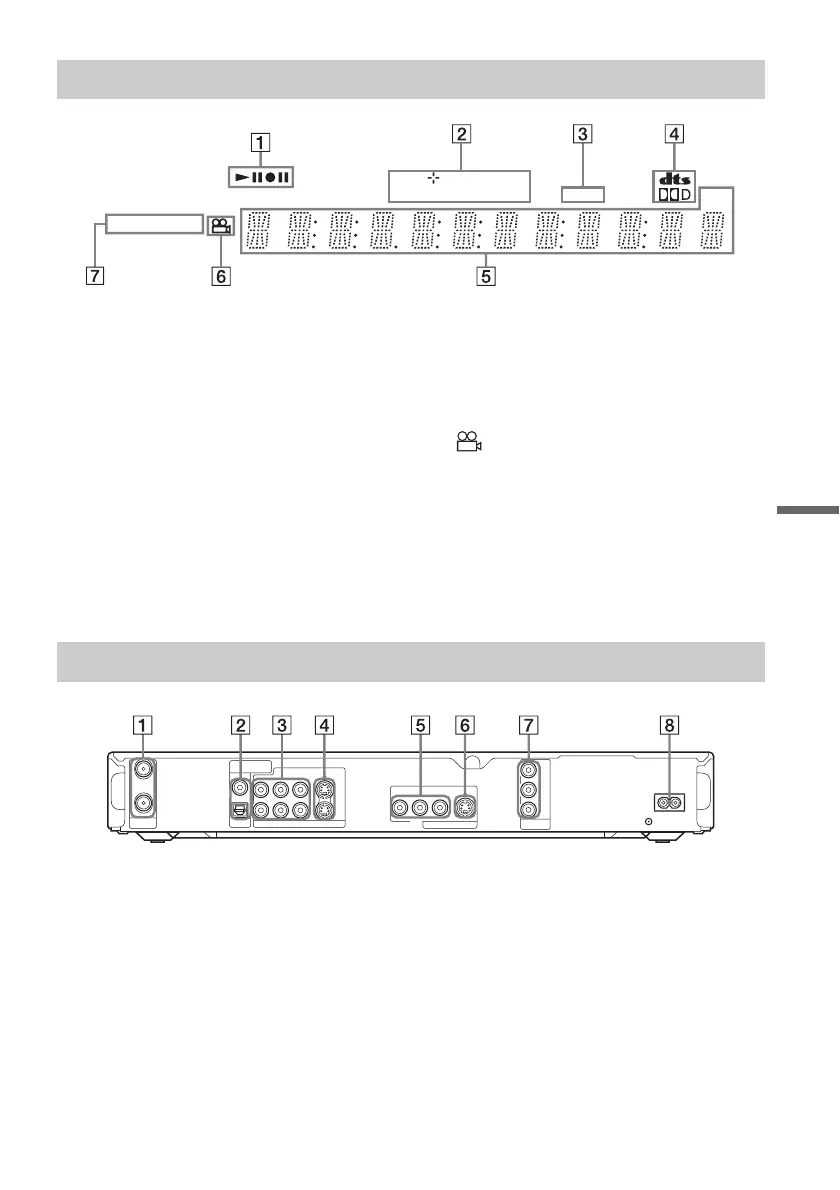

A Playing/recording status
B Disc type*/recording format
C SAP (Second Audio Program) indicator
(44)
D Audio signal indicators (36)
E Displays the following (38):
• Playing time/remaining time
• Current title/chapter/track/index number
• Recording time/recording mode
•Clock
• Channel
F (angle) indicator (57)
G PROGRESSIVE (progressive) indicator
(19)
* Displays DATA CDs (data compact disc) as “CD” (compact disc).
z Hint
You can turn off the front panel display when the recorder is turned off by setting “Dimmer” to “Power Save” in
“Options” setup (page 90).
A VHF/UHF IN/OUT (very high frequency/
ultra high frequency in, out) jacks (14)
B DIGITAL OUT (digital out) (COAXIAL
(coaxial)/OPTICAL (optical)) jacks (20)
C LINE IN 1/3 (line in 1/3) (R-AUDIO-L
(right-audio-left)/VIDEO (video)) jacks
(29)
D LINE IN 1/3 (line in 1/3) (S VIDEO (S
video)) jack (29)
E LINE OUT (line out) (R-AUDIO-L (right-
audio-left)/VIDEO (video)) jacks (18, 20)
F LINE OUT (line out) (S VIDEO (S video))
jack (18)
G COMPONENT VIDEO OUT (component
video out) (Y, P
B, PR) jacks (18)
H AC IN (AC in) terminal (21)
Front panel display
DVD RW VCD
VR
SAP
CH
PROGRESSIVE
Rear panel
COAXIAL
DIGITAL OUT
OPTICAL
PCM/DTS/DOLBY DIGITAL
VHF/UHF
IN
LINE IN
COMPONENT
VIDEO OUT
LINE OUT
VIDEO
S VIDEO
R-AUDIO-L
PB
Y
P
R
~ AC IN
OUT
1
3
VIDEO
S VIDEO
R-AUDIO-L
