Sony STR-DA2800ES - DCDC Board-1

STR-DA2800ES
13

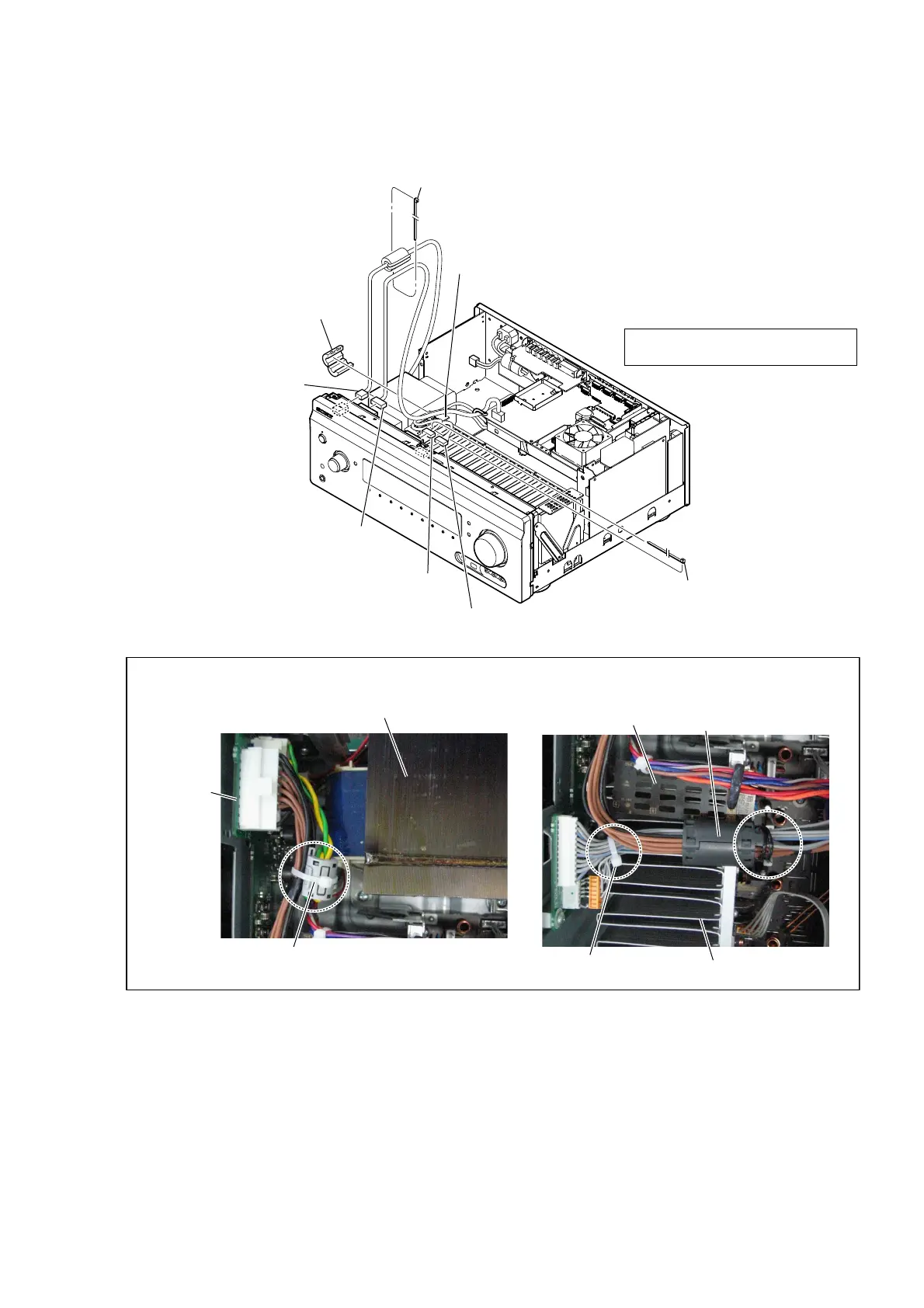

2-3. DCDC BOARD-1
Note 1:
In reassembling, use new cable tie
to fasten the clamp same as before.
1 Cut the cable tie.
(See Fig. B)
1 Cut the cable tie.
(See Fig. A)
cable tie
3
clamp filter (ferrite core)
(FC3)
(See Fig. B)
4
connector
(CN1404)
5
connector
(CN1401)
6
connector
(CN1405)
7
connector
(CN1406)
clamp filter (ferrite core)
(FC3)
< Fig. B >< Fig. A >
 Wire setting
Note 3:
The wire must not touch heat sink.
Note 2:
The wire must not touch power transformer.
2 Remove wire from lead pin.
(See Fig. B)
cable tie
GUIDE_B board
DCDC board
