Sony STR-DA2800ES Service Manual

STR-DA2800ES
18

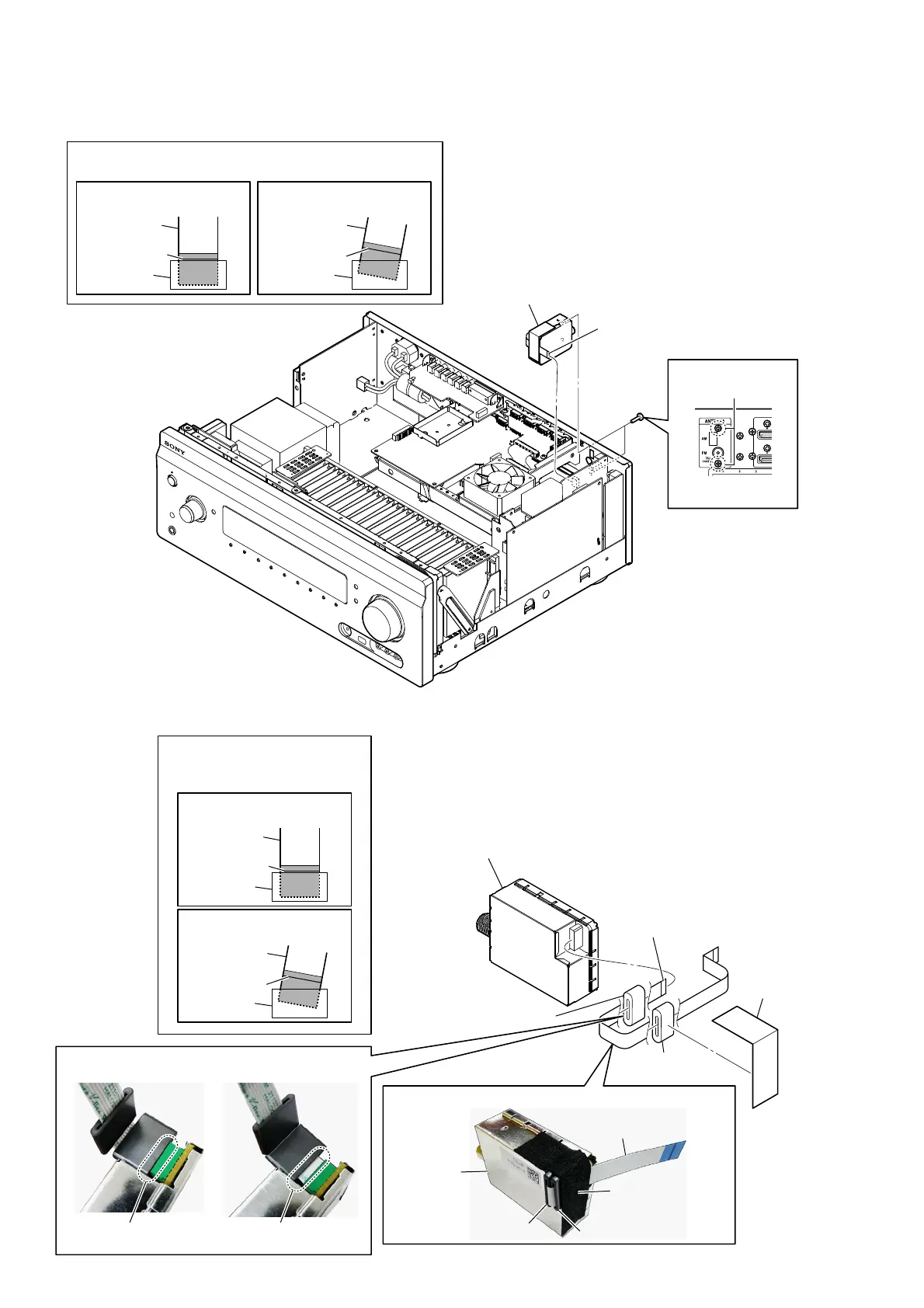

2-9. TUNER BLOCK
2-10. TUNER ASSY (TU1)
colored line
colored line
Insert is straight to the interior. Insert is incline
wire (flat type)
wire (flat type)
connectorconnector
OK
NG
Note:
When installing the wire (flat type),
ensure the colored line.
No slanting after insertion.
1 wire (flat type) (9 core)
(CN2131)
3 tuner block
2
two screws
(BVTP3
u
8)
– Rear side view –
5
tuner assy
(TU1)
tuner assy
(TU1)
colored line
colored line
Insert is straight to the interior.
Insert is incline
wire (flat type)
wire (flat type)
connector
connector
OK
NG
Note:
When installing the wire (flat
type), ensure the colored line.
No slanting after insertion.
2
wire (flat type) (9 core)
(FFC2)
wire (flat type) (9 core)
(FFC2)
3
ferrite core
(FC6)
4
ferrite core (FC7)
ferrite core (FC6)
ferrite core (FC7)
1
saranet
cushion
(LXWXT)
saranet cushion
(LXWXT)
:LUHIODWW\SHFRUH))&VHWWLQJ
Ferrite core (FC7) has not
ridden on the connector.
Ferrite core (FC7) has
ridden on the connector.
)HUULWHFRUH)&VHWWLQJ
OK NG

Sony STR-DA2800ES Specifications

General

Bi-amping	Yes
Night mode	No
Sample rate	192 kHz
Product color	Black
Connector contacts plating	Nickel
Case or master carton weight	15 kg
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W
Dimensions (WxDxH)	500 x 258 x 487 mm
Total Harmonic Distortion (THD)	0.09 %

Weight and Dimensions

Weight	12400 g
