Sony STR-DA2800ES - STBY Board-1

STR-DA2800ES
34

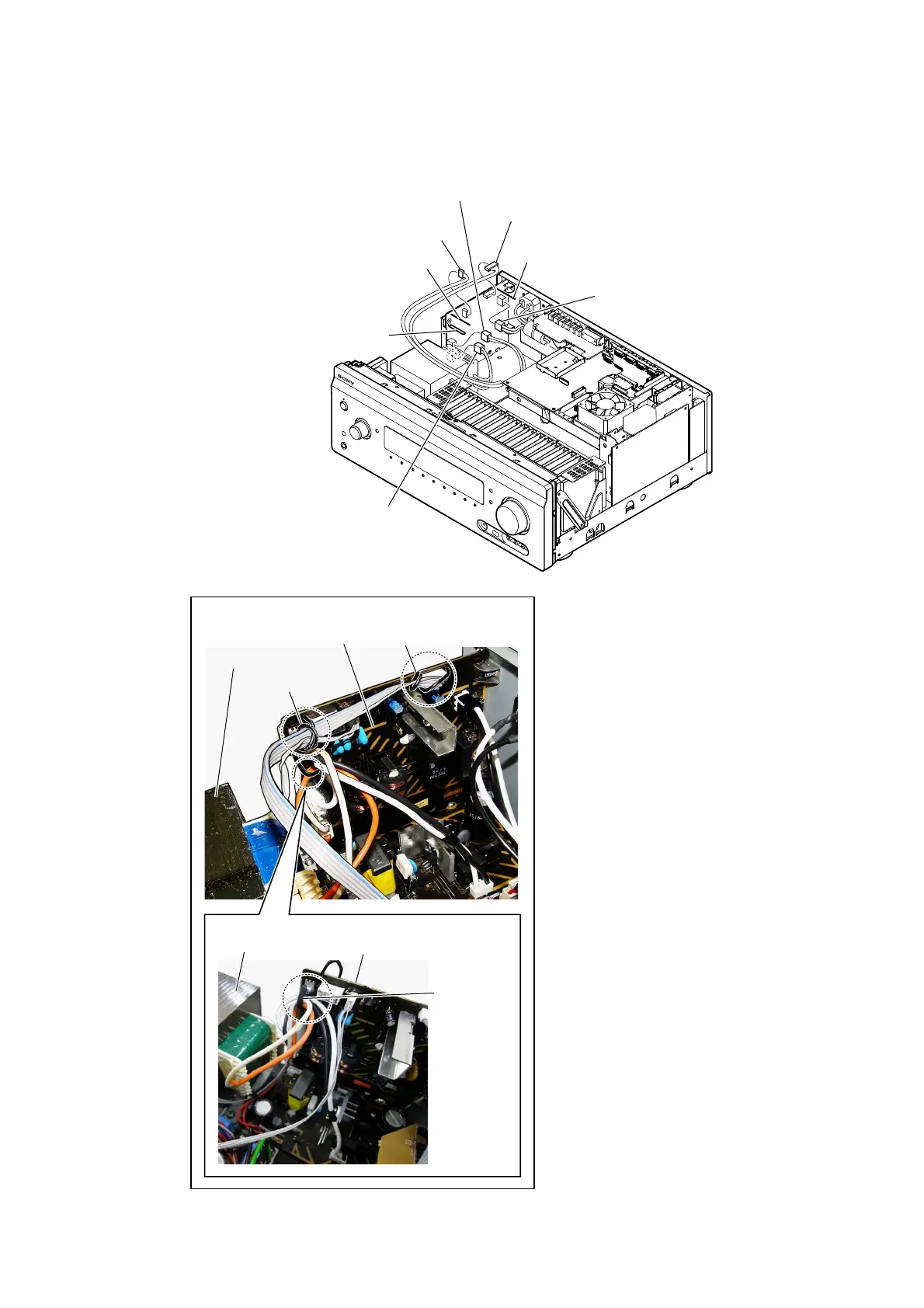

2-27. STBY BOARD-1
3 connector
(CNP54)
7 connector
(CNP51)
4 connector
(CN903)
5 connector
(CN902)
6 connector
(CN02)
1 Remove wire from lead pin.
(See Fig. Y)
lead pin
1 Remove wire from lead pin.
(See Fig. Y)
2 Remove wire from wiring stopper.
(See Fig. Z)
< Fig. Z >
< Fig. Y >
 Wire setting
lead pin
wiring stopper
STBY board
STBY board
power transformer
power transformer
