STR-DA2800ES
23

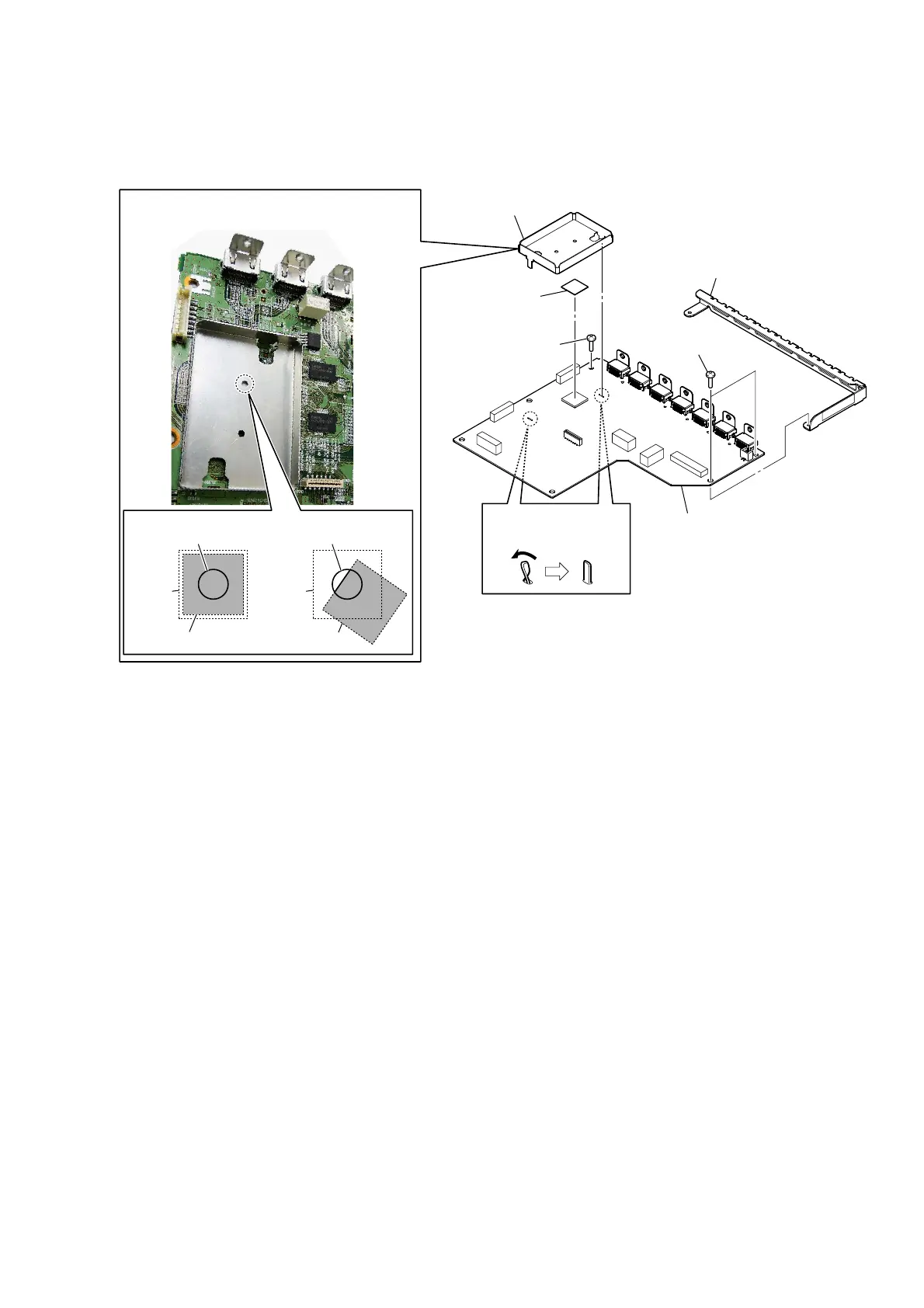

2-15. D-VIDEO BOARD
1
two screws
(BVTP3
u
8)
2
HDMI-7 bracket block
4
heat sink (2011)
5
radiation sheet
1
screw
(BVTP3
u
8)
6
D-VIDEO board
3 Bend the claw in the
direction of an arrow.
Note:
When installing the heat sink (2011), check
that the radiation sheet has not shifted.
heat sink (2011) hole heat sink (2011) hole
radiation sheet radiation sheet
OK
IC3500IC3500
NG
