STR-DA2800ES
19

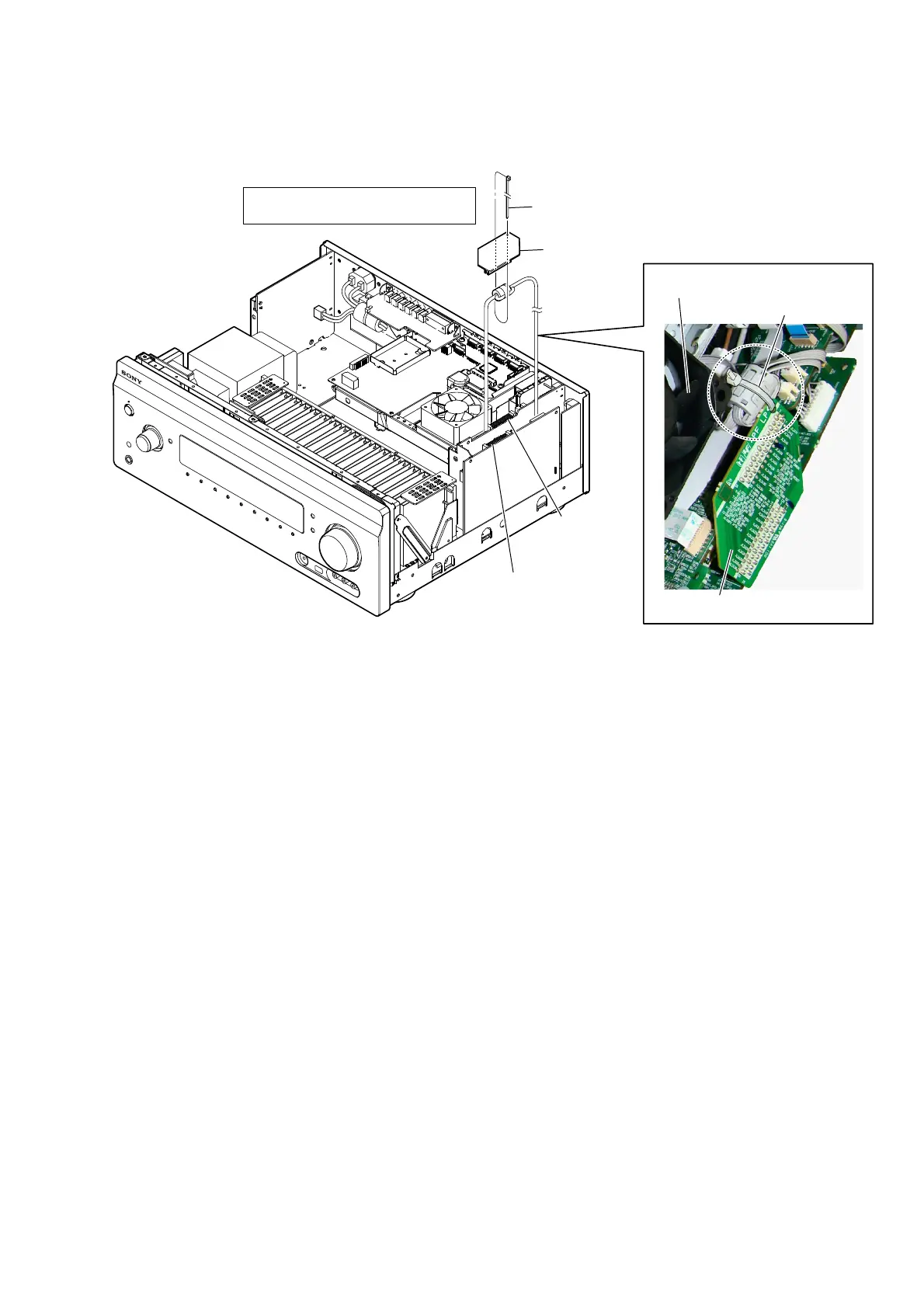

2-11. D-AUDIO_CONNECT BOARD
Note 1:
In reassembling, use new cable tie
to fasten the clamp same as before.
1 Cut the cable tie.
cable tie
4 D-AUDIO_CONNECT board
D-AUDIO_CONNECT board
2 connector
(CN2003)
3 connector
(CN2142)
:LUHsetting
Note 2:
The wire must not touch DC fan.
