STR-DA2800ES
16

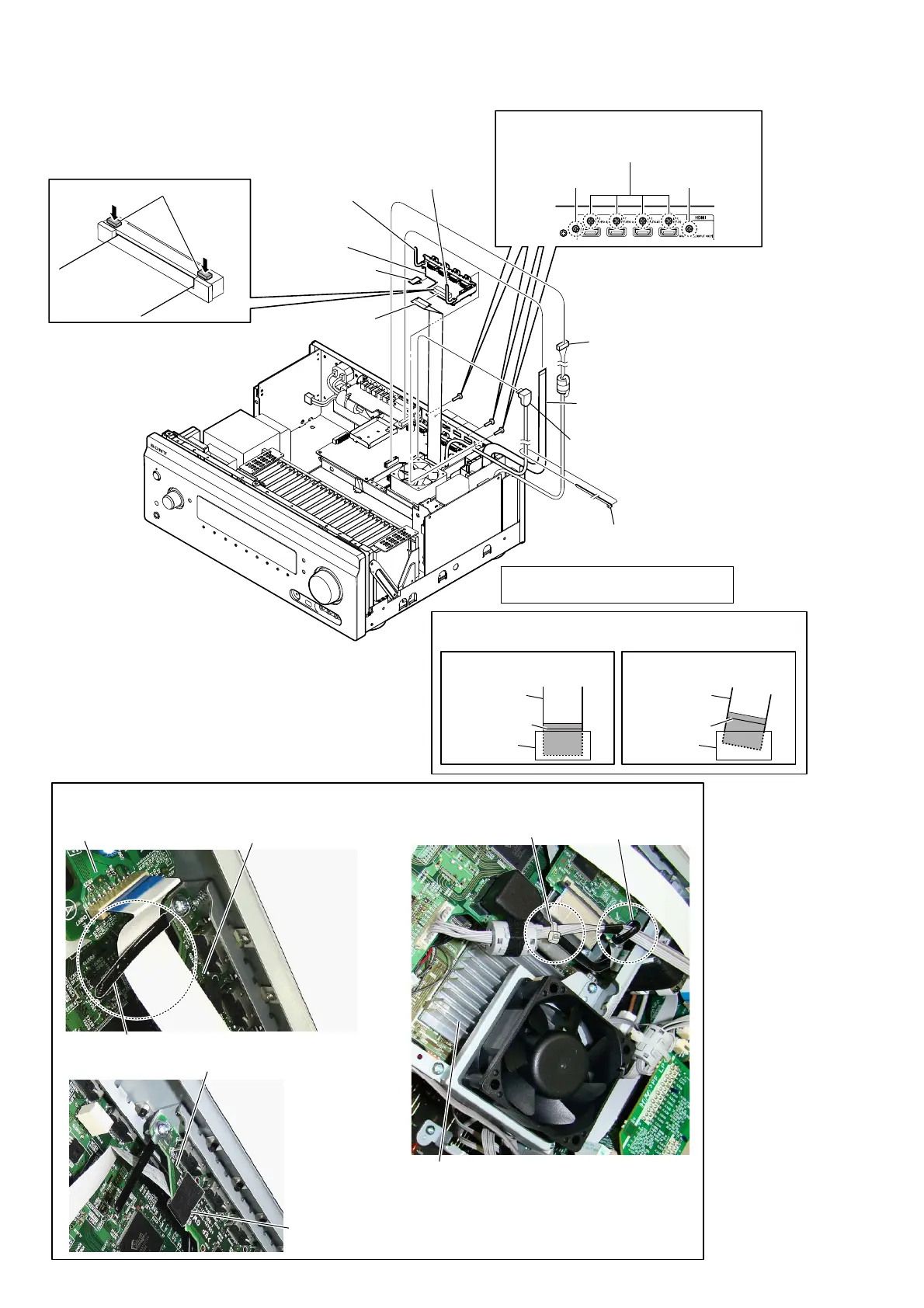

2-6. SUB D-VIDEO BOARD BLOCK
8
Push two buttons of connector.
Note 1:
In reassembling, use new cable tie
to fasten the clamp same as before.
3 Cut the cable tie.
(See Fig. G)
qs SUB D-VIDEO
board block
5 Remove wire from
wiring stopper.
(See Fig. G)
7 HDMI cable (HDC1)
(CN3701)
6 connector
(CN3571)
9 flexible flat cable
(CN7001)
4 saranet cushion
(See Fig. F)
2 wire (flat type) (17 core)
(CN807)
qa
screw
(BVTP3
u
8)
qa
screw
(BVTP3
u
8)
0
four screws
(B3
u
5)
colored line
colored line
Insert is straight to the interior. Insert is incline
wire (flat type)
wire (flat type)
connectorconnector
OK
NG
Note 2:
When installing the wire (flat type),
ensure the colored line.
No slanting after insertion.
– Rear side view –
cable tie
saranet cushion
wiring stopper
wiring stopper
HAT board
SUB D-VIDEO board
SUB D-VIDEO board
< Fig. E > < Fig. G >
< Fig. F >
 Wire setting
Note 3:
The wire must not touch heat sink.
1 Remove wire from
wiring stopper.
(See Fig. E)
