STR-DA2800ES
35

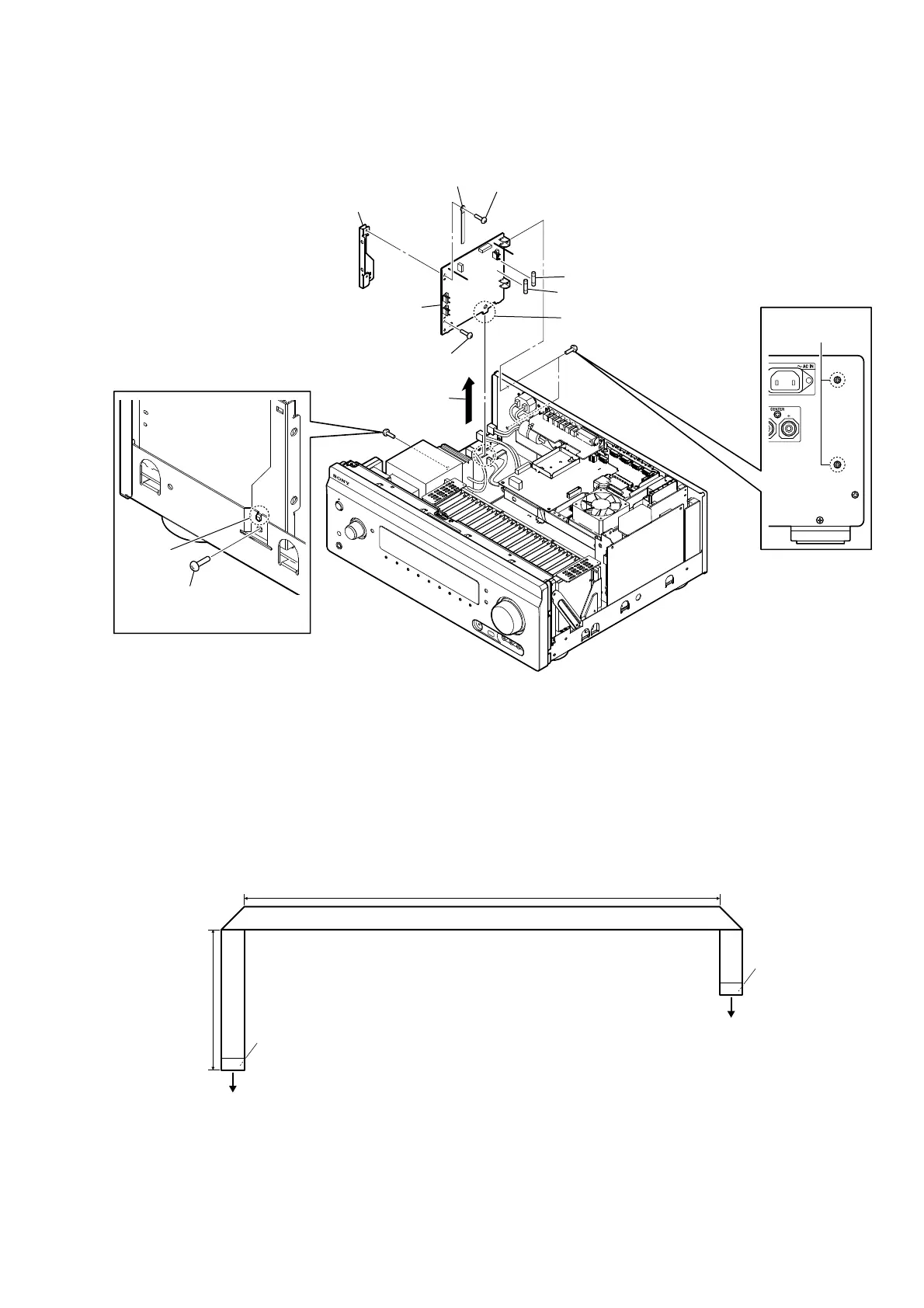

2-28. STBY BOARD-2
1 two screws
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
6 screw
(BVTP3 u 8)
6 screw
(BVTP3 u 8)
2 hook
3
Remove the STBY
board in the direction
of an arrow.
4
fuse (F001)
5
fuse (F901)
7 wiring stopper
8 bracket (AC1) block
9 STBY board
Note:
When installing the STBY
board block, fit the convex
part with the hole.
2-29. HOW TO BEND WIRE (FLAT TYPE)
ZLUHIODWW\SHFRUHOHQJWKPP5HI1R))&
D-VIDEO board
(CN3510)
CONTROL board
(CN2861)
80 ± 2 mm
270 ± 2 mm
The lower side
is contact side.
The lower side
is contact side.
