Sony STR-DA2800ES - NETWORK Board Section

169
STR-DA2800ES

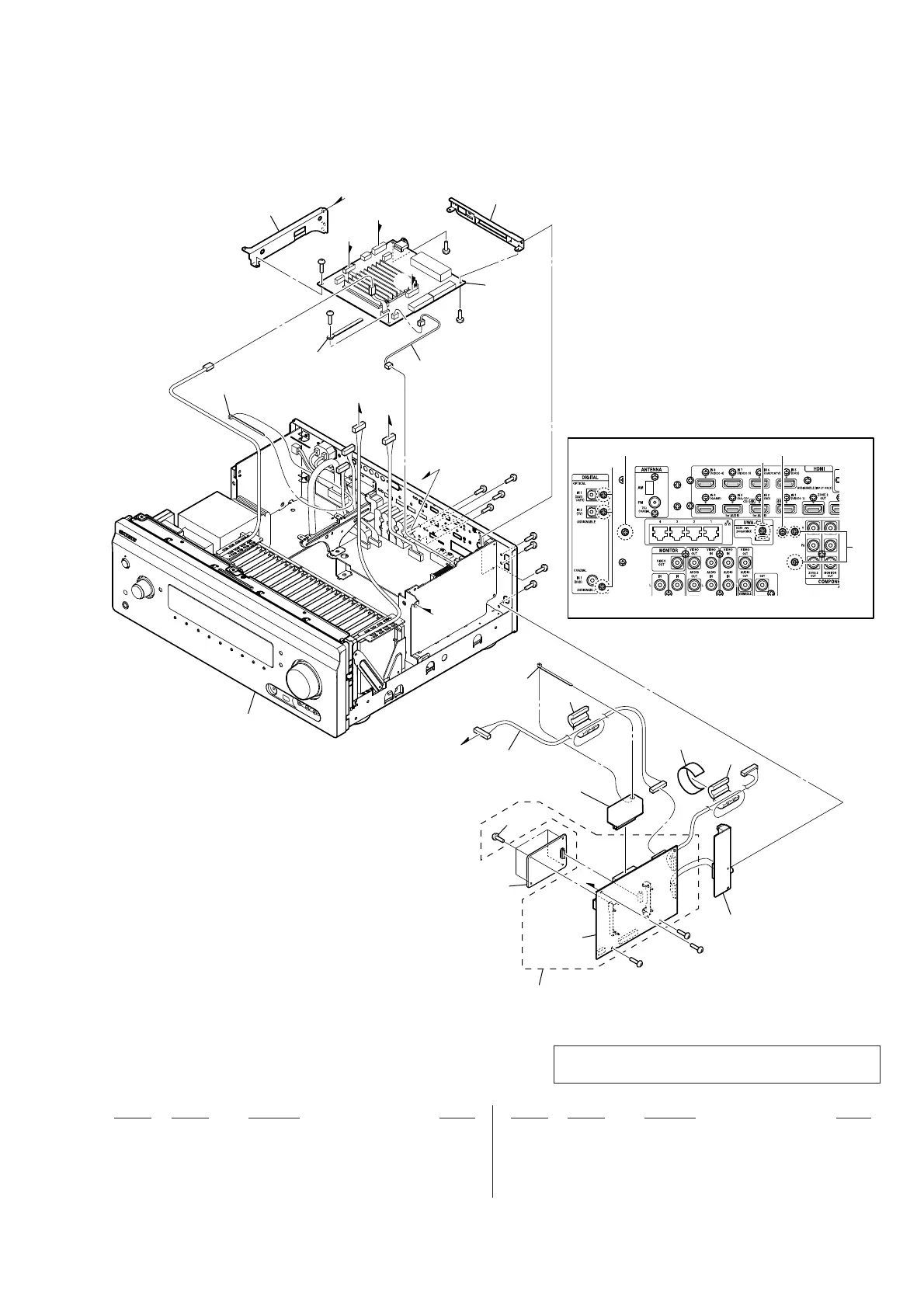

6-4. NETWORK BOARD SECTION
151 A-1880-367-A NETWORK BOARD, COMPLETE (for SERVICE)
152 A-1880-328-A D-AUDIO BOARD, COMPLETE
153 3-087-053-01 +BVTP2.6 (3CR)
154 A-1880-340-A DSP BOARD, COMPLETE
155 A-1880-336-A OPT-COAX BOARD, COMPLETE
FC4 1-500-082-11 CLAMP, SLEEVE FERRITE
FC8 1-500-082-11 CLAMP, SLEEVE FERRITE
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-682-147-01 SCREW +P 3X6
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
#1
#1
#4
#1
#1
FC4
FC8
not supplied
(D-AUDIO_CONNECT board)
not supplied
not supplied
not supplied
D-AUDIO
board
152
155
154
153
#1
#1
#1
qj
qj
A-VIDEO board section
#1
not supplied
not supplied
not supplied
not supplied
151
#1
#1
not supplied
qf
qg
qf
qg
qd
qd
qh
qh
#1
– Rear side view –
#1
#1
#1
#4
#1
#1
#1
#1
Note: When replacing the NETWORK board, refer to “NOTE
OF REPLACING THE NETWORK BOARD” (page 6).
