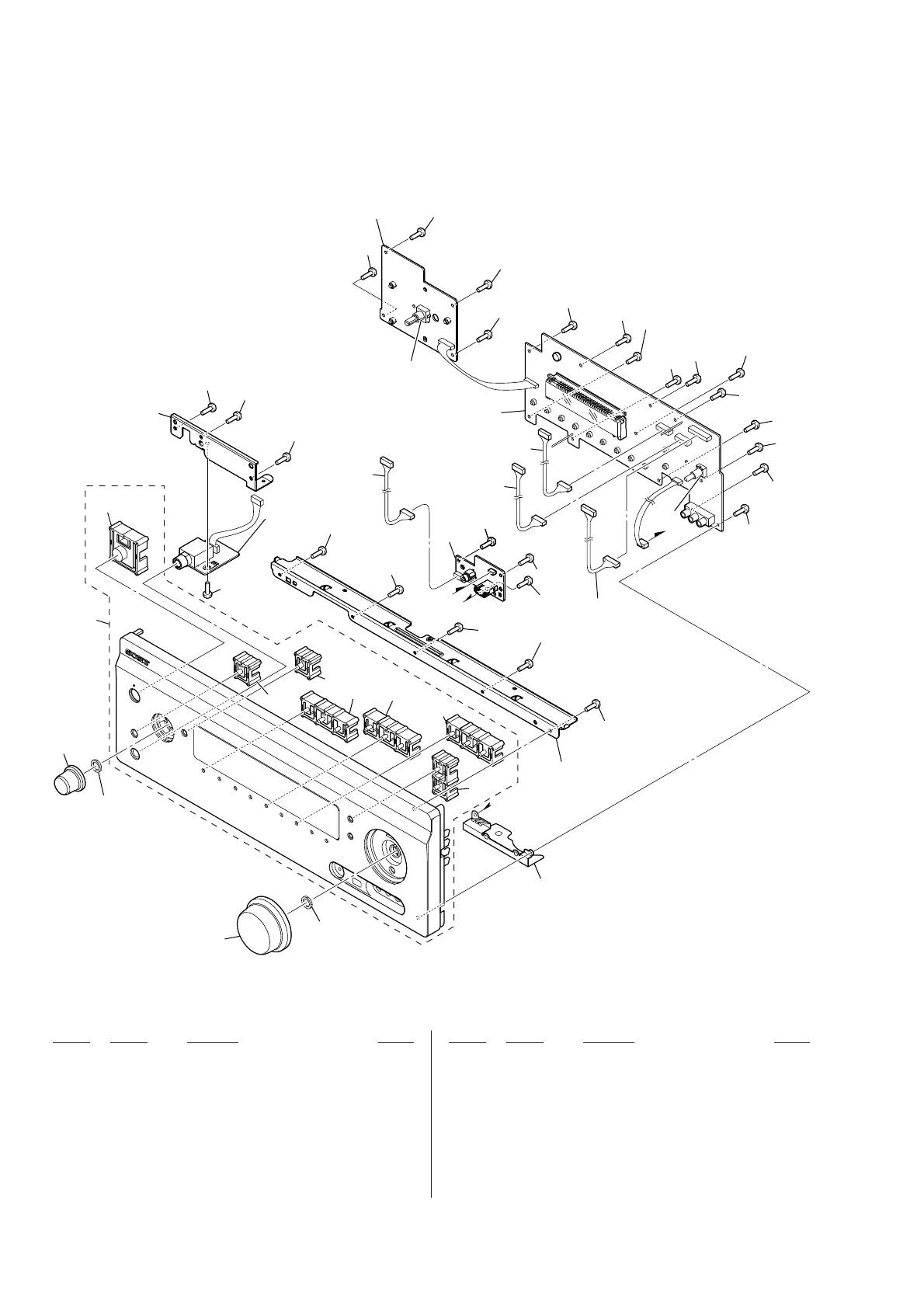

6-9. FRONT PANEL SECTION
401 4-423-347-01 KNOB, VOLUME A-8
402 4-284-031-01 KNOB (MENU)
403 A-1880-314-A DISPLAY BOARD, COMPLETE
404 4-423-345-01 BUTTON, POWER LED (\/1)
405 4-423-346-01 BUTTON, SPEAKERS
(SPEAKERS (OFF/A/B/A+B))
406 4-423-344-01 BUTTON, FUNCTION 3 (MEMORY/ENTER,
TUNING MODE, TONE MODE, TONE/TUNING +/−,
2CH/A.DIRECT, A.F.D., MOVIE/HD-D.C.S., MUSIC)
407 4-423-343-01 BUTTON, MODE A28 (INPUT MODE)
408 4-423-342-01 BUTTON, MODE 2 (DISPLAY MODE, DIMMER)
409 3-087-053-01 +BVTP2.6 (3CR)
410 A-1880-354-A USB BOARD, COMPLETE
411 X-2584-490-3 PANEL, FRONT X-ASSY (A28)
S108 1-418-725-41 ENCODER, ROTARY (12 TYPE) (Including Nut)
(MASTER VOLUME)
S181 1-418-817-21 ENCODER, ROTARY (Including Nut)
(INPUT SELECTOR)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
401
402
409
409
409
409
409
409
409
409
409
409
409
403
409
409
409
409
409
409
409
409
409
409
409
409
409
409
410
409
404
411
405
406
407
406
406
408
supplied
with S108
supplied
with S181
S181
not supplied
not supplied
not supplied
not supplied
(POWERKEY board)
not supplied
(HP board)
es
es
ea
ea
not supplied
409
not supplied
not supplied
not supplied
S108
