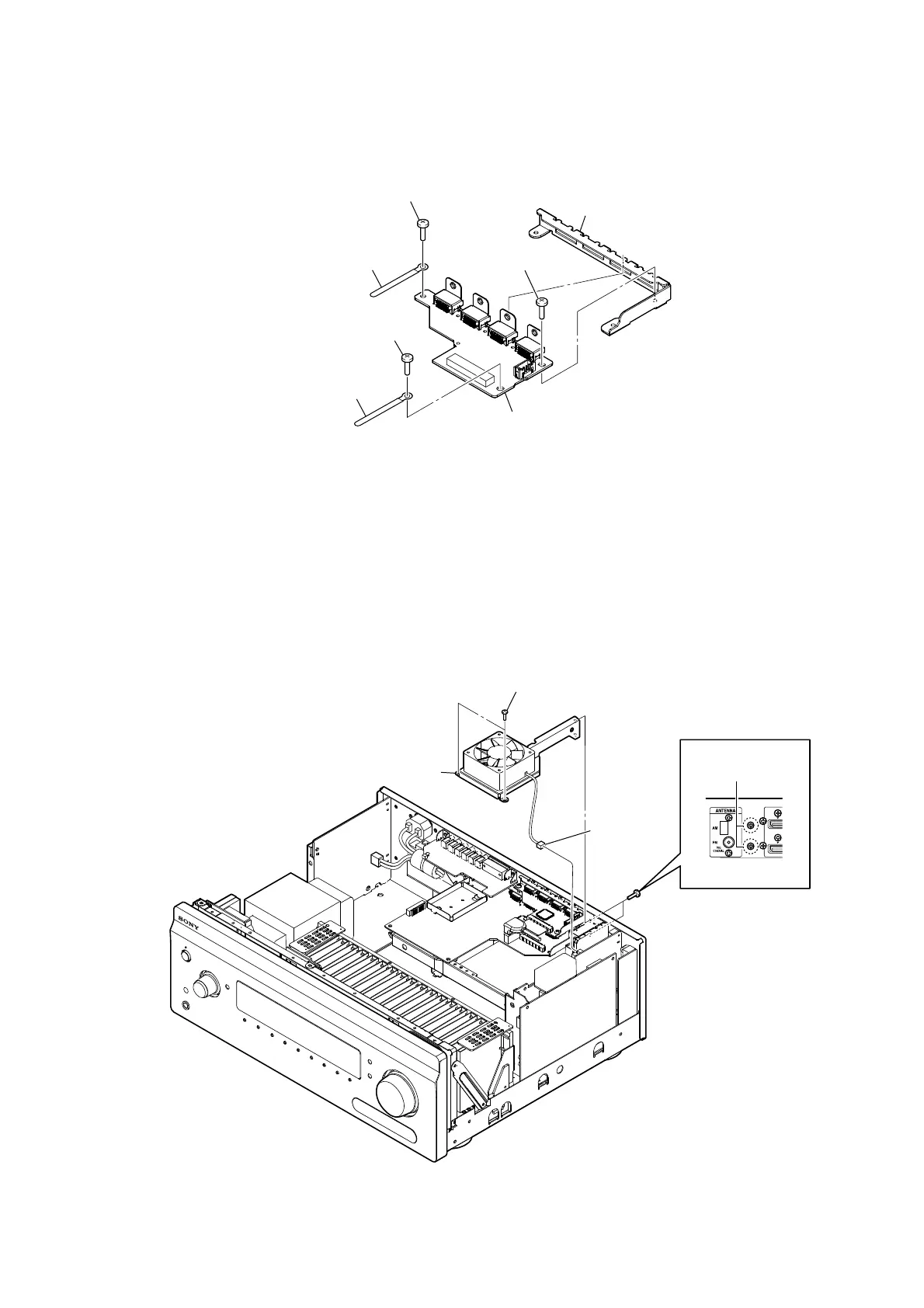

2-8. DC FAN BLOCK
2-7. SUB D-VIDEO BOARD
1
screw
(BVTP3
u
8)
1
screw
(BVTP3
u
8)
2
wiring stopper
3
bracket (S-HDMI)
4
SUB D-VIDEO board
1
screw
(BVTP3
u
8)
2
wiring stopper
1 connector
(CN2141)
2
two screws
(BVTP3
u
8)
3
DC fan block
2
two screws
(BVTP3
u
8)
– Rear side view –
