166
STR-DA2800ES
SECTION 6
EXPLODED VIEWS
1 3-286-852-11 CASE
2 2-580-630-01 SCREW, +BVST 4X8
3 3-906-887-11 SCREW (+BTP) (DIA. 3) (BZN-N)
4 A-1880-350-A HAT BOARD, COMPLETE
5 3-655-653-11 BAND (TAITON), BINDING
FFC1 1-828-002-61 WIRE (FLAT TYPE) (17 CORE)
J861 1-822-149-11 D-SUB CONNECTOR 9P (Including Screw)
(RS232C)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

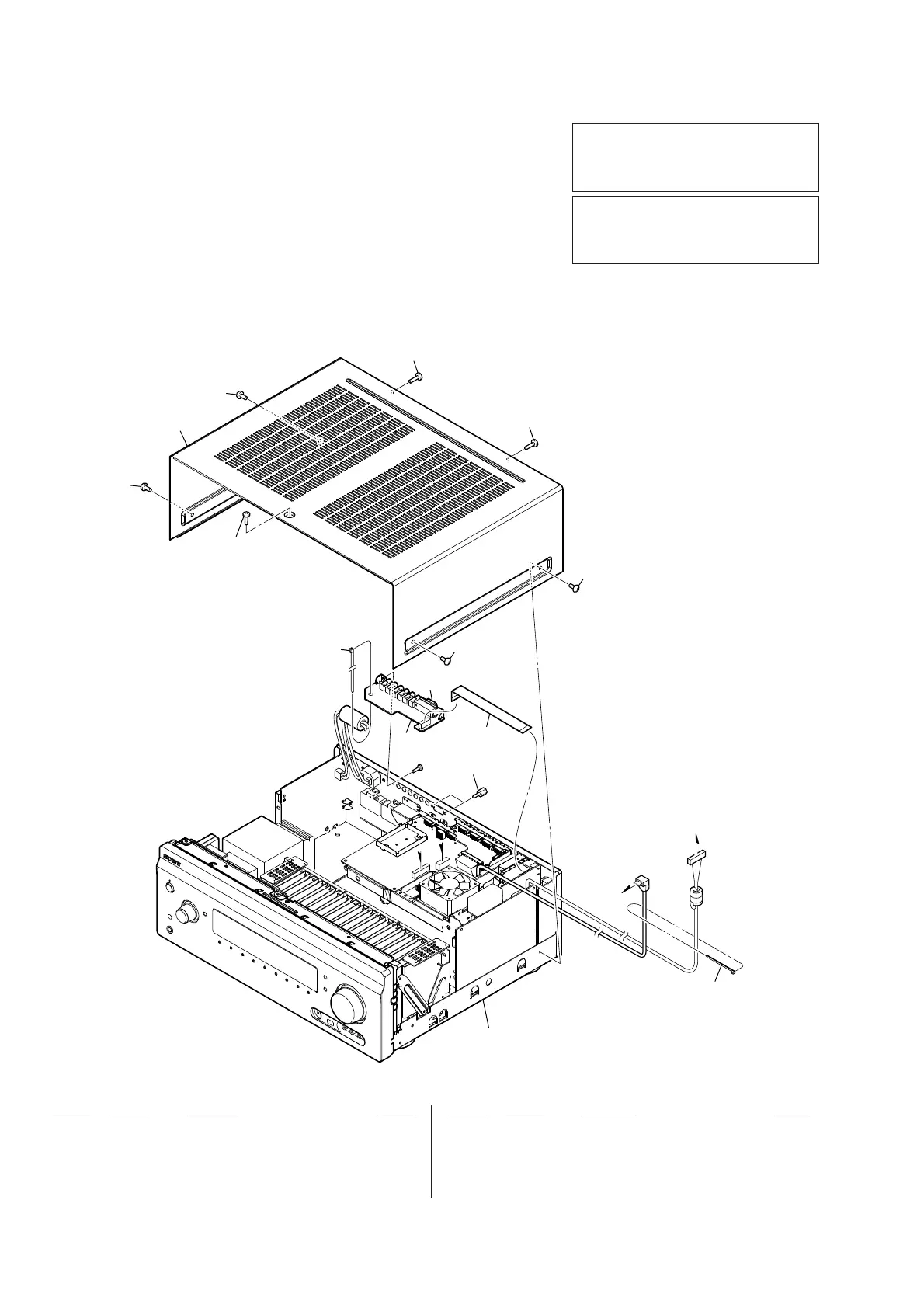

6-1. OVERALL SECTION
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
1
3
4
2
2
5
3
3
J861
FFC1
supplied
with J861
#1
2
2
SUB D-VIDEO board section
not supplied
1
1
2
2
To Next Page
