Sony STR-DA2800ES - D-AUDIO Board Block, OPT-COAX Board

STR-DA2800ES
20

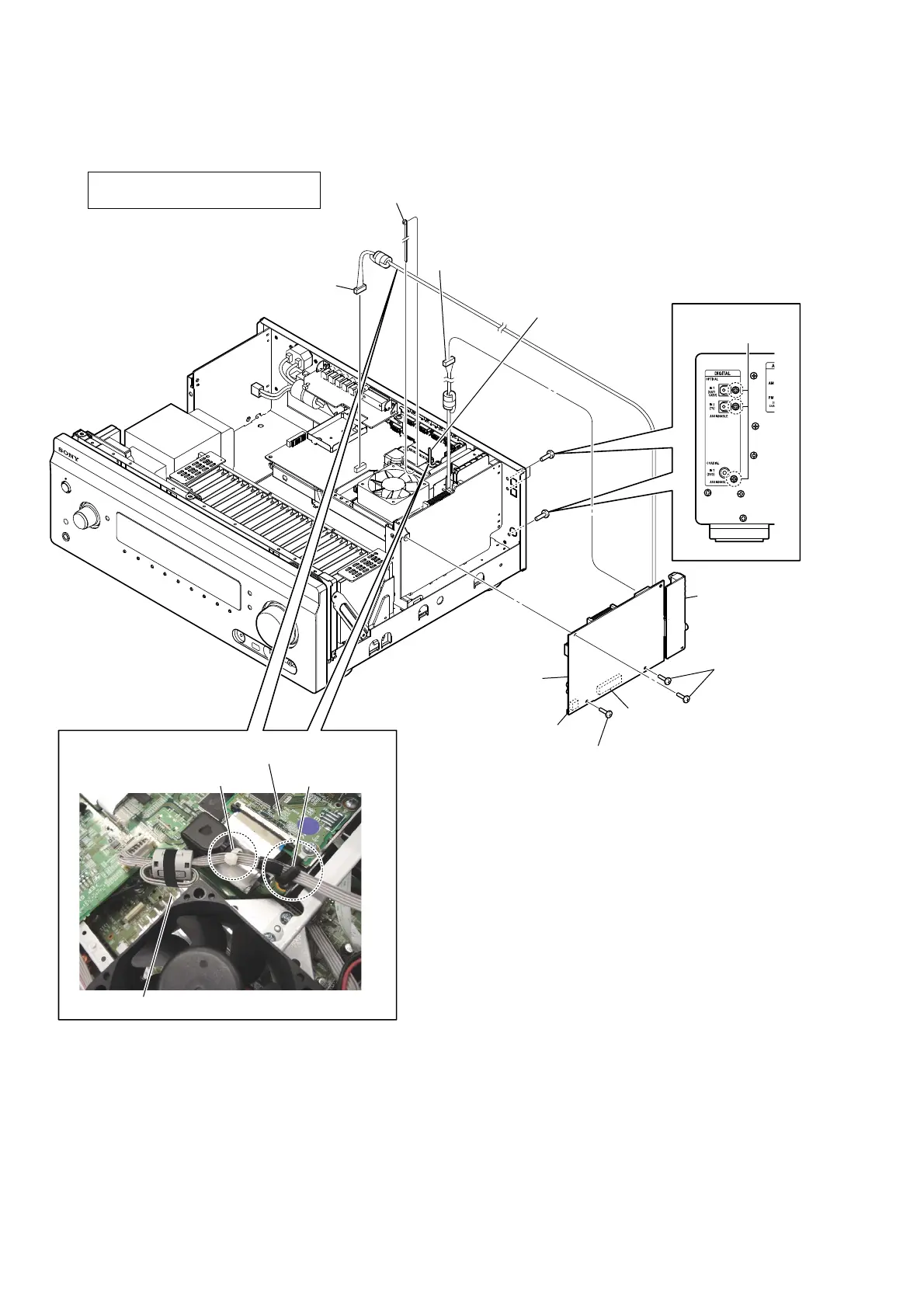

2-12. D-AUDIO BOARD BLOCK, OPT-COAX BOARD
Note 1:
In reassembling, use new cable tie
to fasten the clamp same as before.
1 Cut the cable tie.
(See Fig. A)
3 connector
(CN2211)
6 connector
(CN1114)
7 connector
(CN2401)
8 D-AUDIO board block
0 OPT-COAX board
4 connector
(CN3571)
2 Remove wire from
wiring stopper.
(See Fig. A)
:LUHsetting
5
two screws
(BVTP3
u
8)
5
screw
(BVTP3
u
8)
9
three screws
(BVTP3
u
8)
–5HDUVLGHYLHZ–
cable tie
SUB D-VIDEO board
wiring stopper
Note 3:
The wire must not touch heat sink.
