Source fire Sourcefire 3D System - 8000 Series Chassis Rear View

Version 5.2 Sourcefire 3D System Installation Guide 178
Hardware Specifications
Sourcefire 8000 Series Devices
Chapter 6
8000 Series Chassis Rear View
The 8000 Series chassis can be in the 81xx Family or 82xx Family.
81xx Family Chassis Rear View
The rear view of the chassis contains connection ports, the management
interface, and the power supplies.

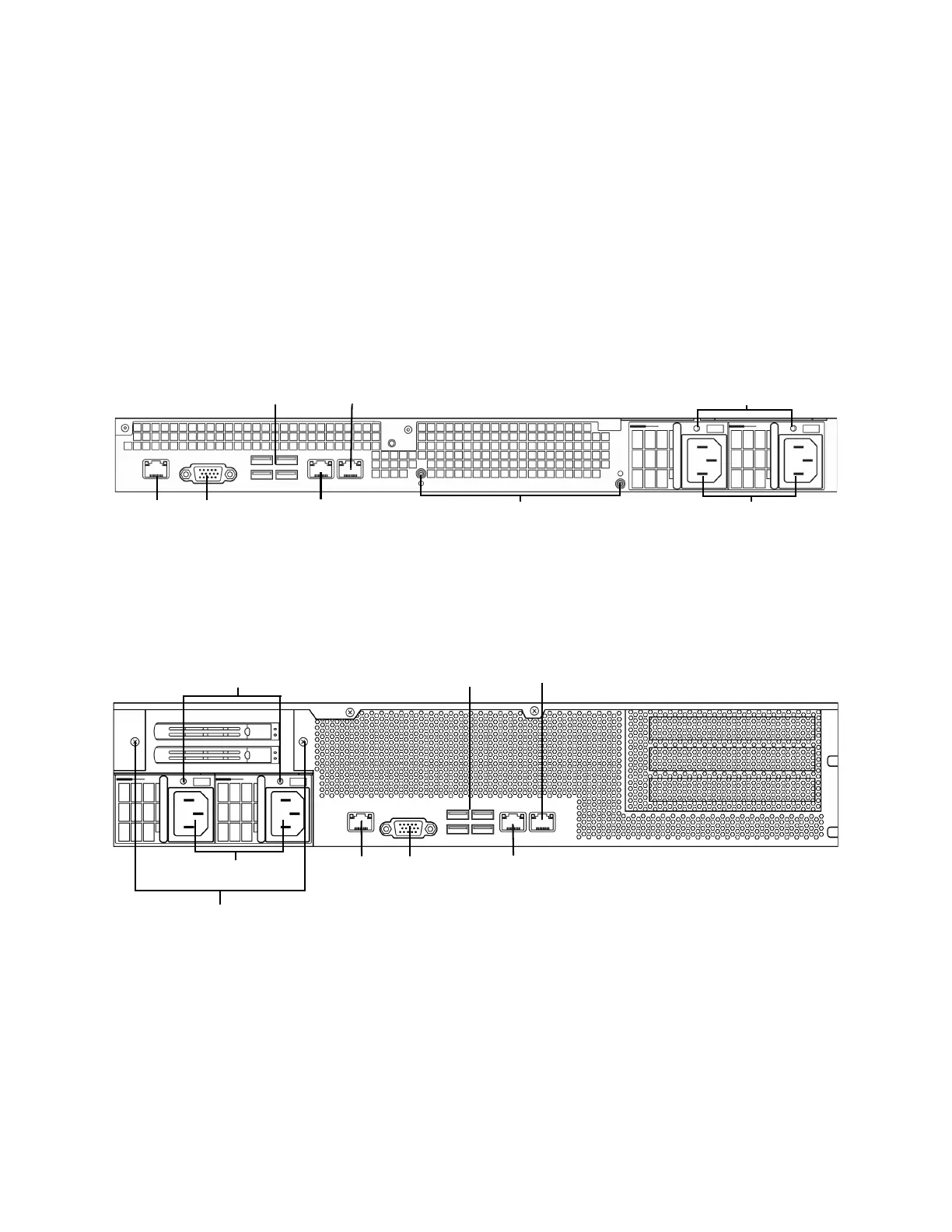

81xx Family (Chassis: CHAS-1U-AC/DC) Rear View
82xx Family Chassis Rear View
The rear view of the chassis contains power supplies, connection ports, and the
management interface.
82xx Family (Chassis: CHAS-2U-AC/DC) Rear View
VGA Port
USB 2.0 Ports
Management InterfaceSerial Port
Reserved
Redundant Power Supplies
Power Supply LEDs
Grounding Locations
Redundant Power Supplies
USB 2.0 Ports
Management InterfaceVGA Port
Serial Port
Reserved
Power Supply LEDs
Grounding Locations
