Version 5.2 Sourcefire 3D System Installation Guide 146
Hardware Specifications
Sourcefire 7000 Series Devices
Chapter 6
Sourcefire 7000 Series Devices
All 7000 Series Devices have an LCD panel on the front of the appliance where
you can view and, if enabled, configure your appliance.
See the following sections for information about your device:
• Sourcefire 3D7010, 3D7020, and 3D7030 on page 146
• Sourcefire 3D7110 and 3D7120 on page 153
• Sourcefire 3D7115 and 3D7125 on page 162
Sourcefire 3D7010, 3D7020, and 3D7030
The 3D7010, 3D7020, and 3D7030, also called the 70xx Family, are 1U
appliances, one-half the width of the rack tray, and delivered with eight copper
interfaces, each with configurable bypass capability. See
Sourcefire Series 3
Information on page 232 for safety considerations for 70xx Family appliances.
See the following sections for more information:
• 70xx Family Front View on page 146
• 70xx Family Rear View on page 151
• 70xx Family Physical and Environmental Parameters on page 152
70xx Family Front View
The front of the chassis contains the LCD panel, sensing interfaces, front panel,
and management port.

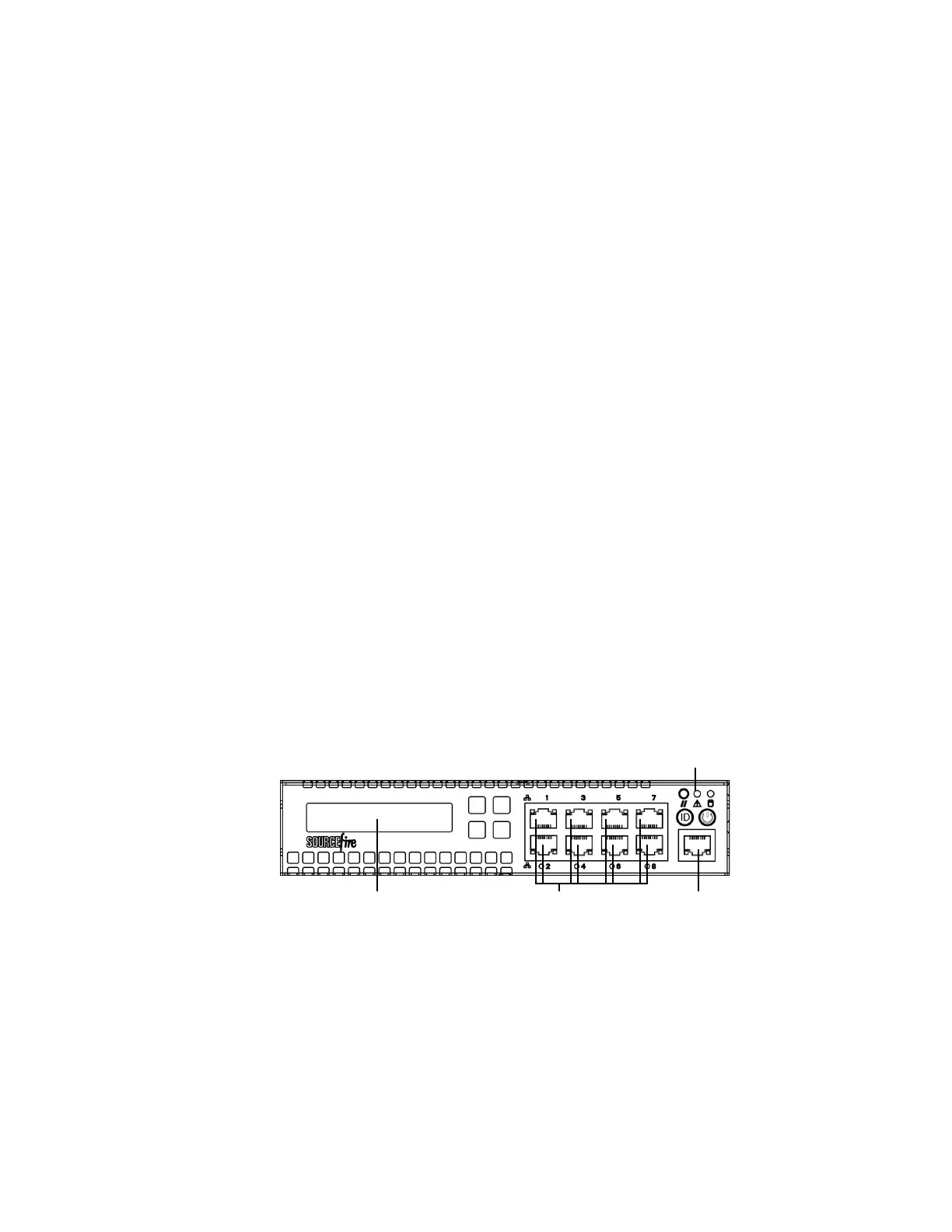

70xx Family (Chassis: CHRY-1U-AC) Front View
Front Panel
LCD Panel Sensing Interfaces Management Port
