Version 5.2 Sourcefire 3D System User Guide 252
Using SFP Transceivers on a 3D7115 or 3D7125
3D7115 and 3D7125 SFP Sockets and Transceivers
Appendix B

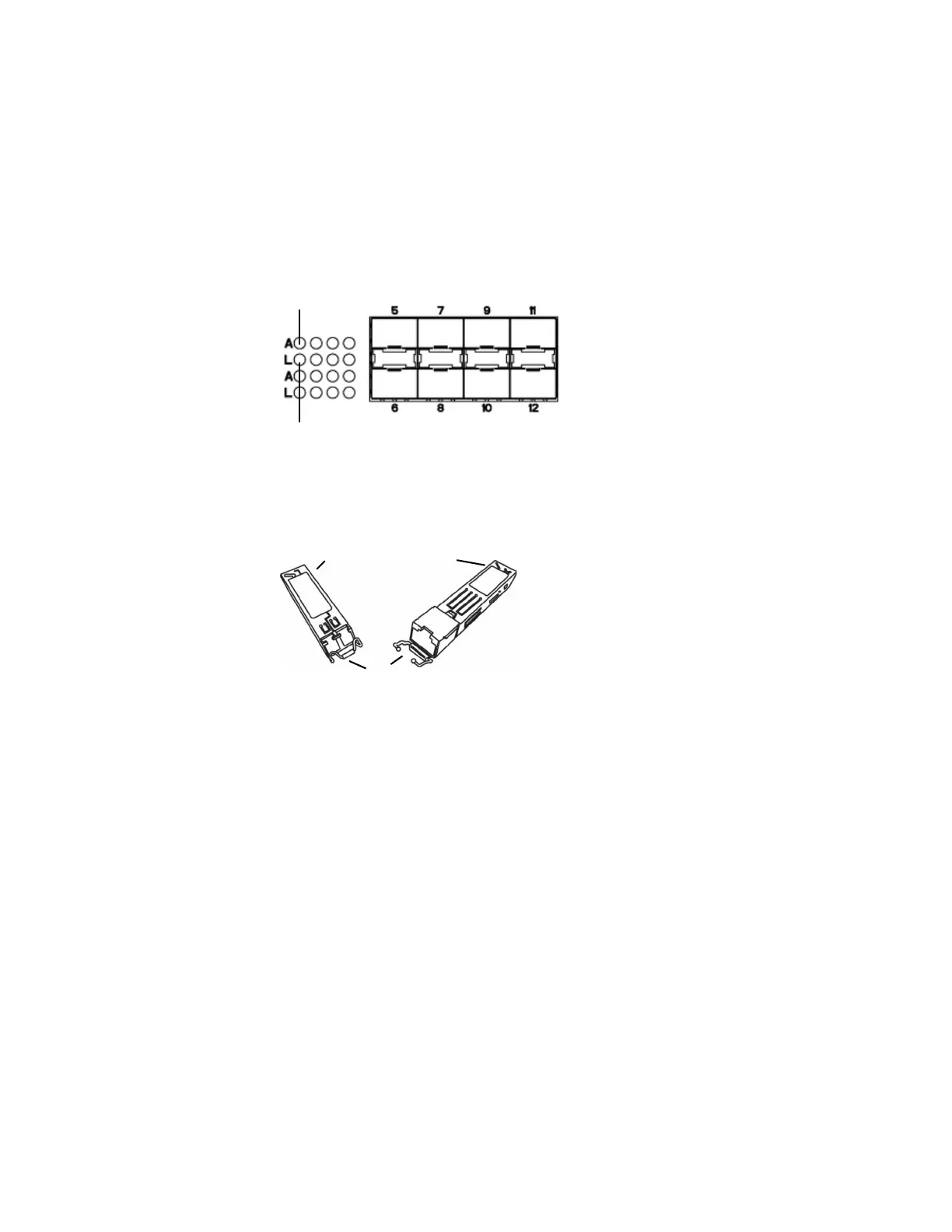

3D7115 and 3D7125 SFP Sockets
The eight SFP sockets are numbered from 5 through 12 in a vertical pattern, and
oriented in a tab-to-center configuration (the upper row faces up and the lower
row faces down).
The accompanying LEDs to the left of the sockets display information on activity
and link for each interface. See
3D7115 and 3D7125 SFP Socket Activity/Link
LEDs on page 167 for more information.
Sample SFP Transceivers
Sample Fiber Sample Copper
Front with Bale
Rear with Contacts
