9. Install the seal housing.
10. Install the 4 seal housing bolts. Torque the bolts to the
specified torque value:
11. Figure 92 shows the seal housing installed. Note the
orientation of the flush ports (arrows).

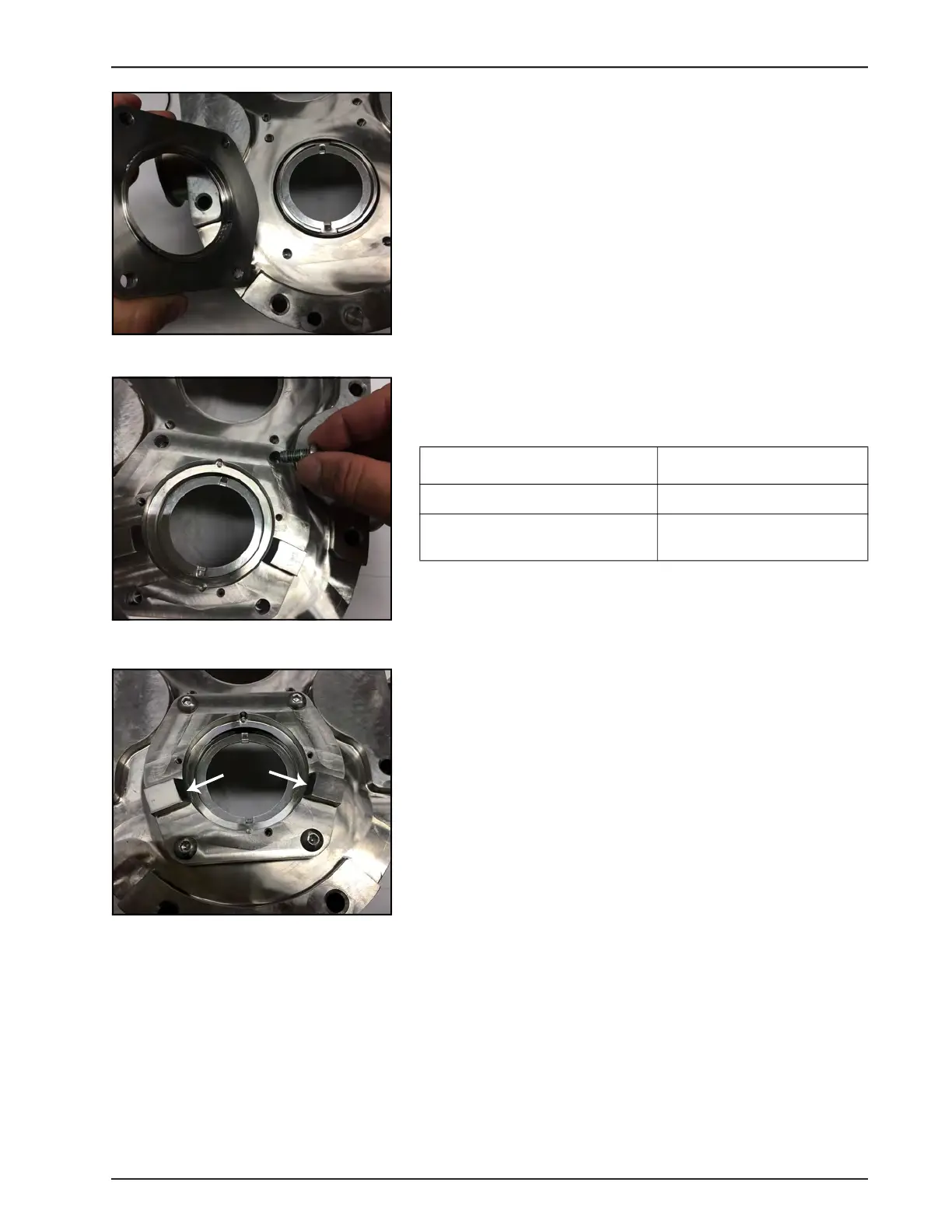

Figure 90 - Install seal housing
Figure 91 - Seal housing bolts
Table 9: Seal Housing Bolt Torque
U3 Model Seal Housing Bolt Torque
006, 015, 018 7.4 ft-lb / 10 N·m
030, 040, 045, 060, 130, 180, 220,
210, 320
14.8 ft-lb / 20 N·m
Figure 92 - Seal housing installed
