Maintenance
Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Page 52
95-03103
11/2018
12.
Install
the
lubricated
stationary
seal
O-ring
as
shown
in
Figure
93.
13.
The
stationary
seal
O-ring
is
located
between
the
seal
housing and the drive ring.
14.
Install the wave spring.
15.
Figure
96 shows the wave spring installed.

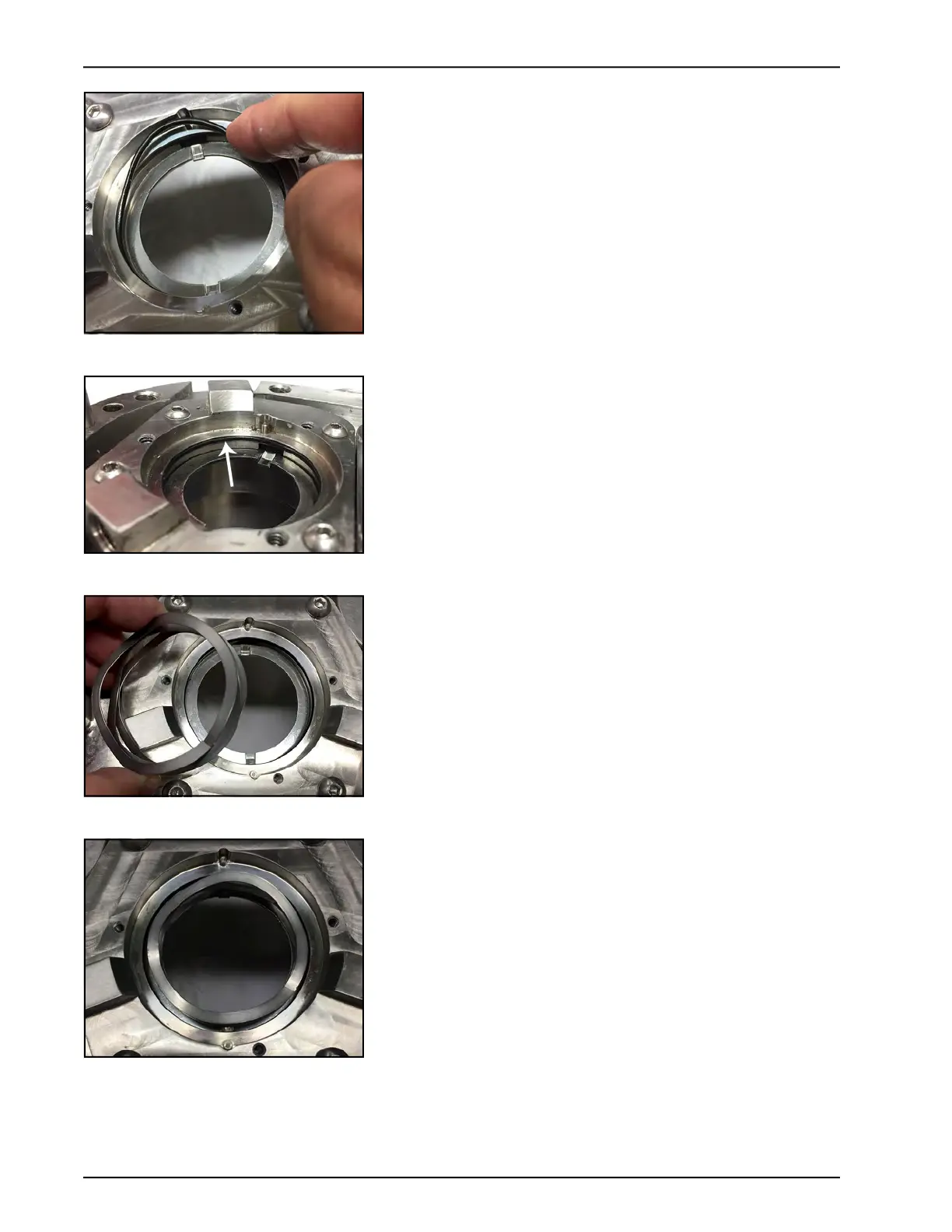

Figure 93 - Install seal O-ring
Figure 94 - Seal O-ring l
ocation
Figure 95 - Install wave spring
Figure 96 - Wave spring installed
51
53
