16. Install the lubricated adjusting ring O-ring onto the shaft
groove.
17. Figure 123 shows the O-ring installed in the shaft groove.
18. Install the adjusting ring onto each pump shaft. Make sure to
align the flats on the adjusting ring to the flats on the drive
shafts.
19. Figure 125 shows the adjusting ring installed.

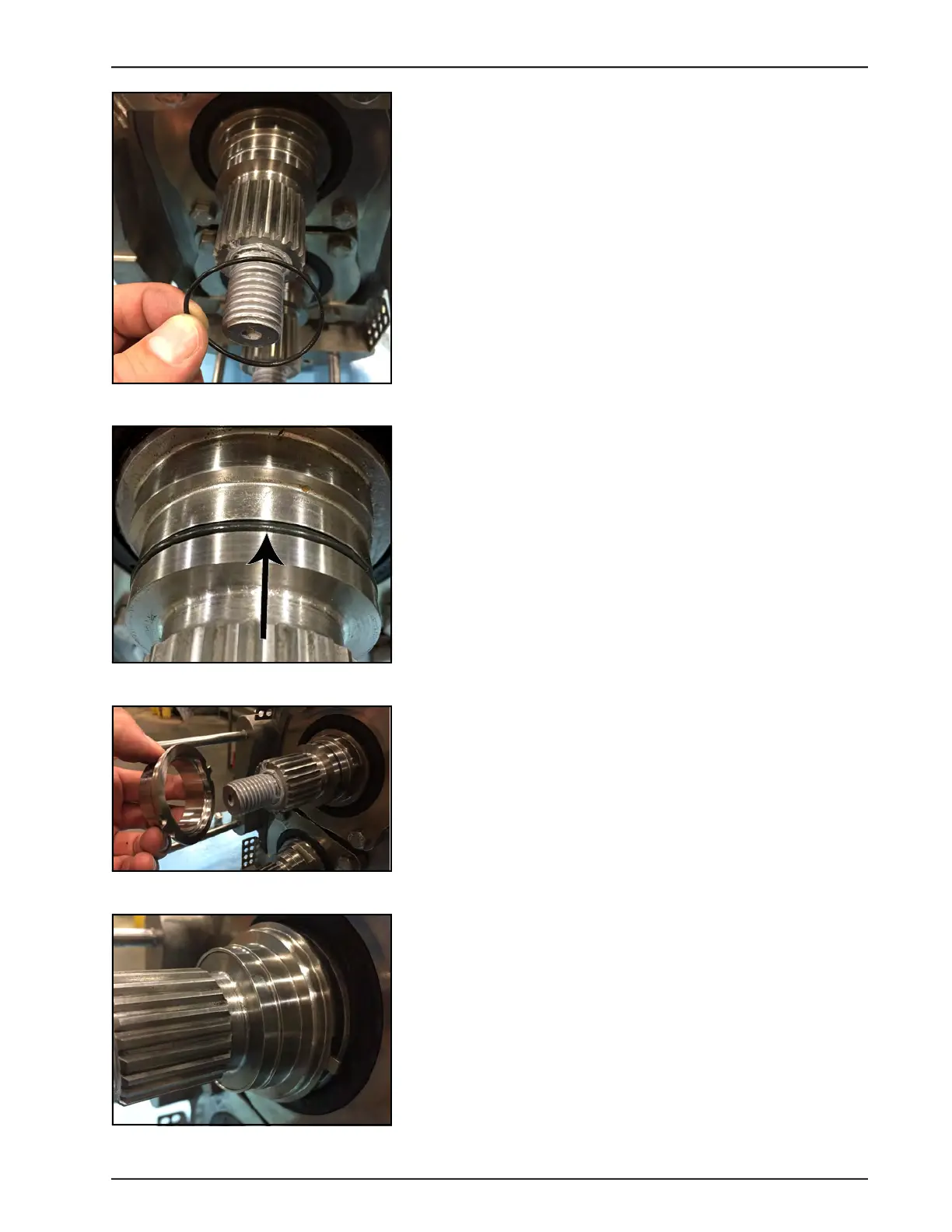

Figure 122 - Install O-ring
Figure 123 - O-ring installed
Figure 124 - Install adjusting ring
Figure 125 - Adjusting ring installed
