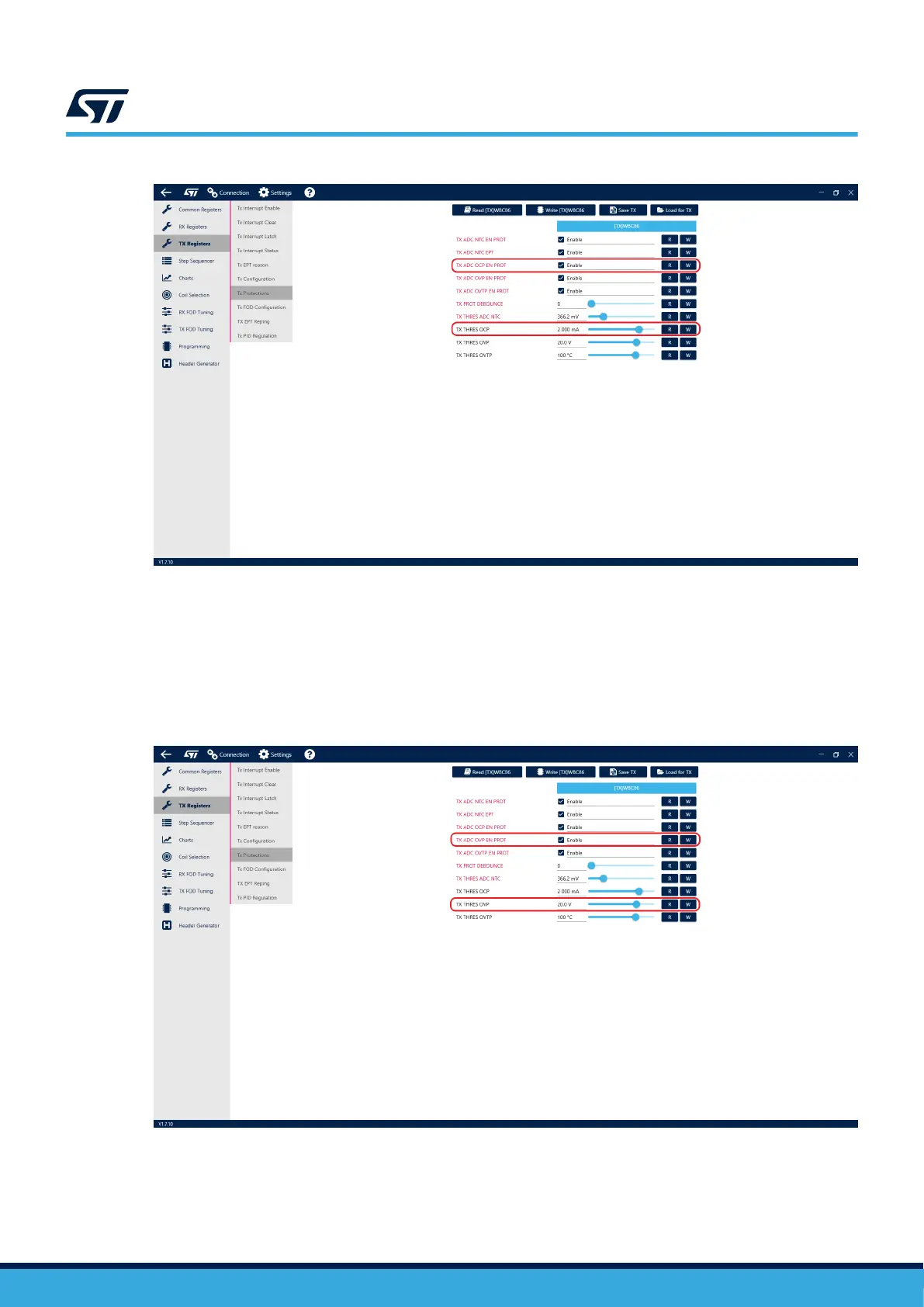

Figure 17. OCP settings

4.8.2 Overvoltage protection (OVP)

Excessive input voltage may damage the board and/or device. For this reason, a TVS diode is placed at the input

of the board. The IC is also equipped with an ADC dedicated to monitoring the input voltage level. The protection

can be enabled/disabled in the GUI and the threshold can be set in a range of 0 to 25.5 V. Triggering OVP also

leads to power transfer termination, as an increase in transmitter input voltage may also lead to an increased Rx

VRECT voltage.

Figure 18. OVP settings

UM3161

Protections overview

UM3161 - Rev 1

page 18/78
