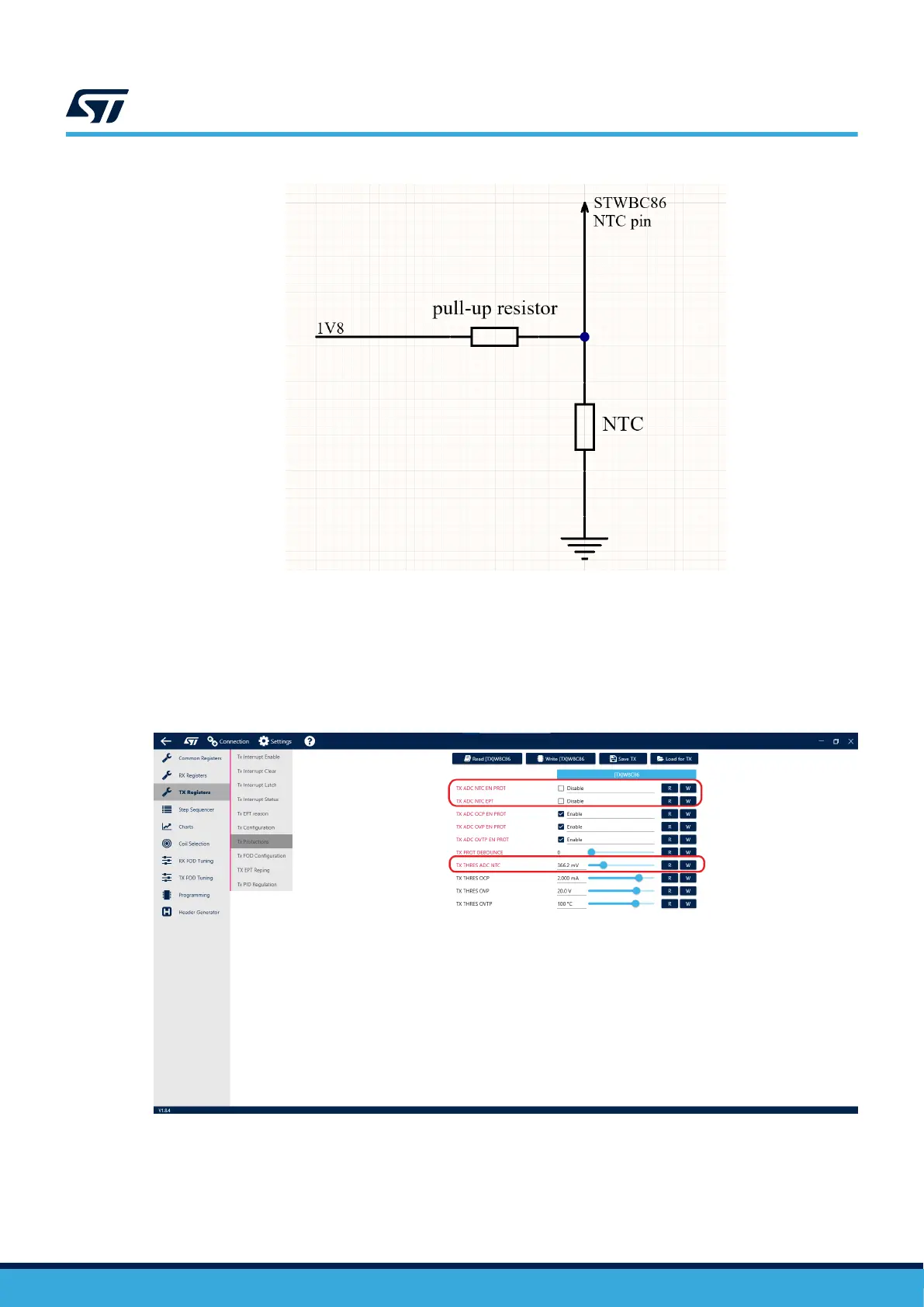

Figure 20. NTC connection on board

The user can choose if triggering this protection only generates a corresponding interrupt, or if the device also

terminates the power transfer upon triggering. The interrupt must be enabled when power transfer termination is

desired.

To set the NTC threshold using GUI, the threshold value must be set (in mV) based on the parameters of the

resistor divider. The protection will be triggered when the divider output voltage drops below the set threshold.

Figure 21. NTC settings

UM3161

Protections overview

UM3161 - Rev 1

page 20/78
