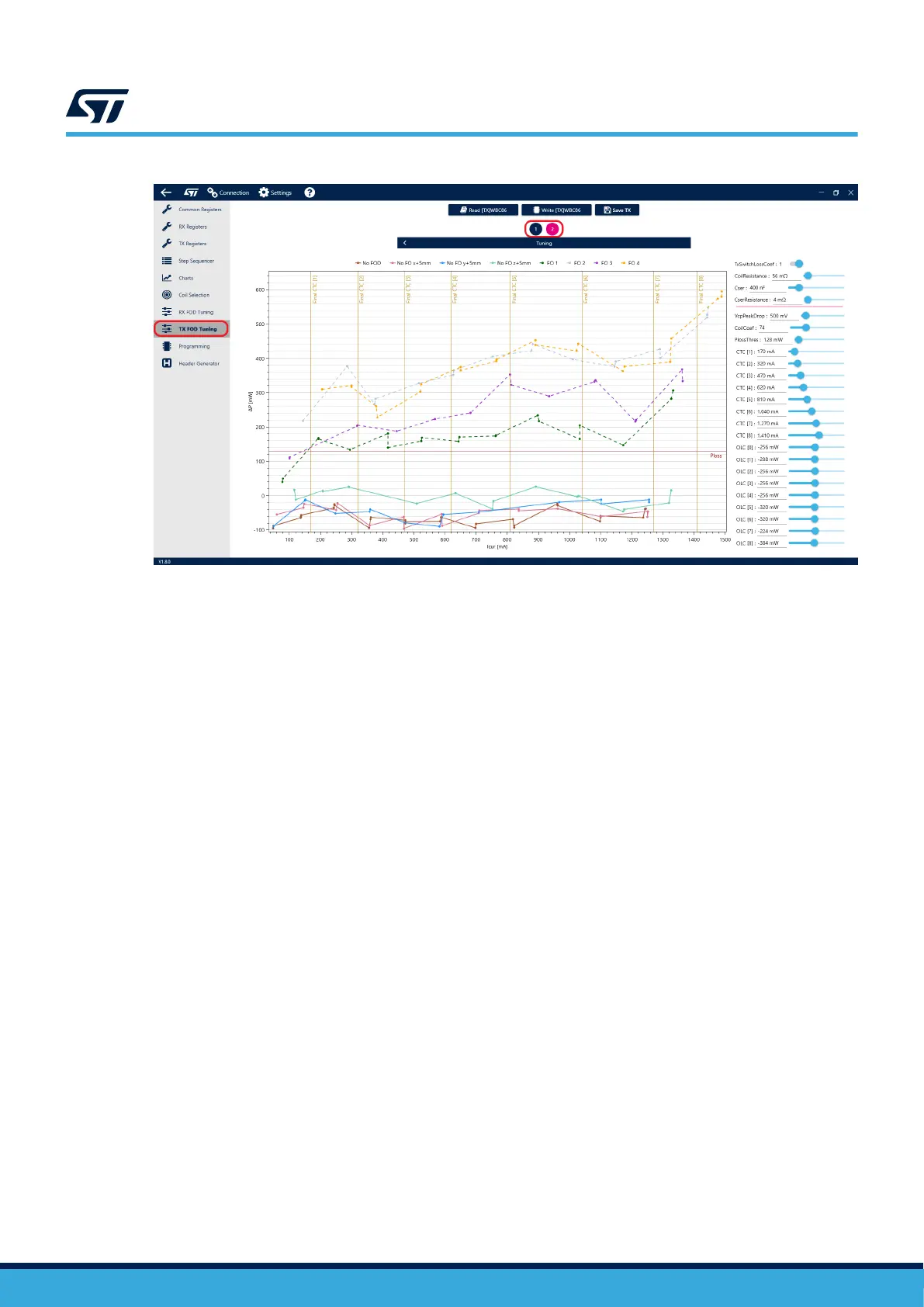

Figure 32. Plot logged data
The logged data are processed before being plotted, as the tool also takes into consideration a few physical
properties of the circuit. Those properties are set in the top part of the parameter list on the right side of the
window and include:
• TxSwitchLossCoef selects if the switch loss should be included in the calculation.
• CoilResistance refers to the STWBC86TX coil resistance.
• Cser and CserResistance refer to the STWBC86TX series resonant capacitor capacitance and resistance
values.
Values listed below are the tuneable parameters of the FOD algorithm.
VcpPeakDrop is a ring node voltage value modifier. CoilCoef is a scaling factor, which incorporates frequency
dependent losses into the calculation. Adjust the VcpPeakDrop and CoilCoef values until the foreign object and
non-foreign object curves are as separate as possible. VcpPeakDrop can be set in steps of 50 mV, CoilCoef can
be set in steps of 1
.
PlossThreshold sets a threshold for foreign object detection. If the calculated power loss is higher than the set
threshold, FOD protection is triggered. PlossThreshold can be set in steps of 32 mW.
