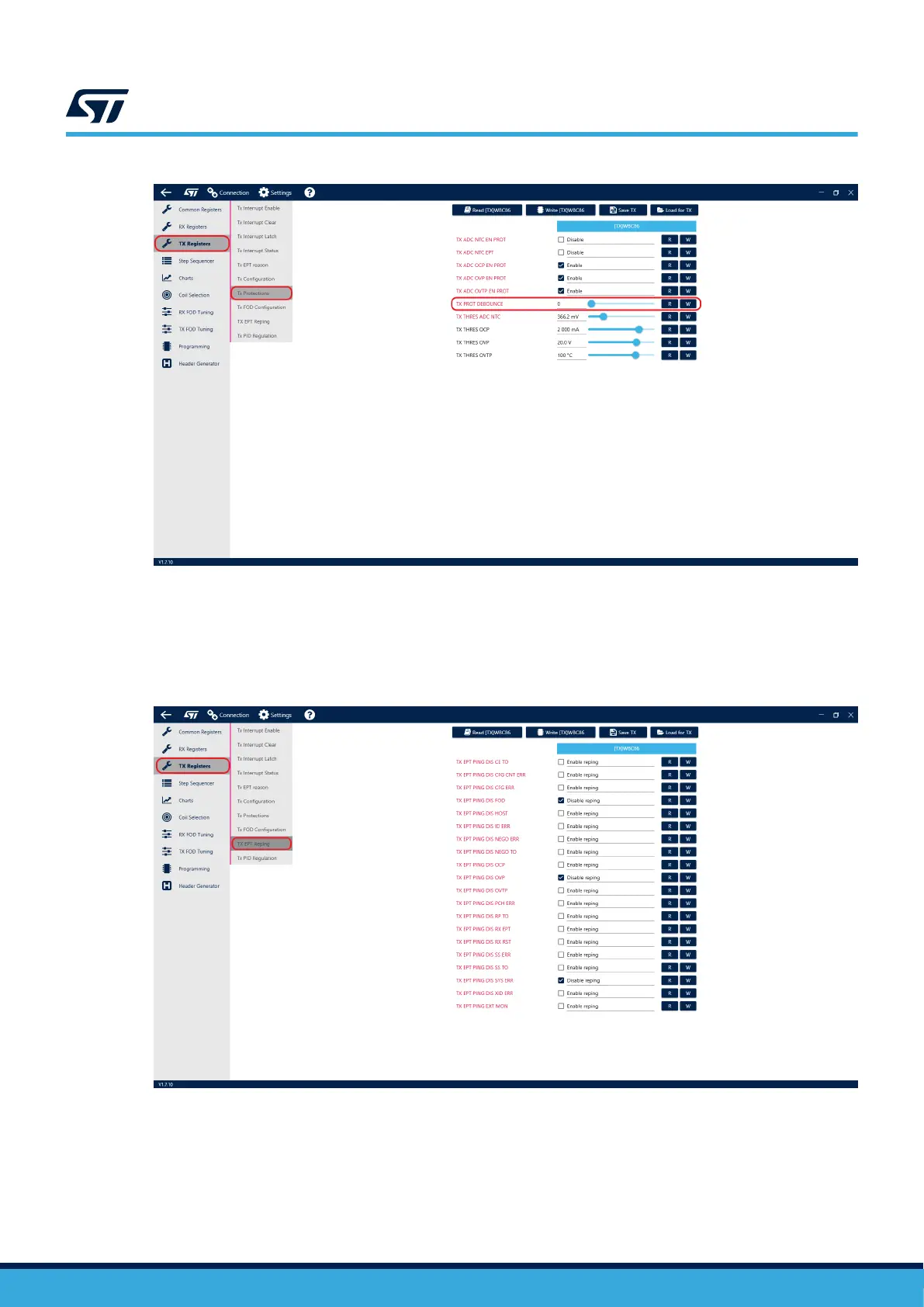

Figure 41. Protection debounce setting
The GUI enables the user to select which (EPT) condition causes the transmitter to stop pinging even after the
EPT condition no longer applies. When used, this feature keeps the device inactive until it is restarted (by a power
cycle) by the user. In addition, entering the inactive state can be indicated by assigning a TX error (0x1E) function
to one of the GPIO pins (see
Section 4.14 GPIOx and INTB pins).
Figure 42. EPT reping settings
Checking a box causes the corresponding condition to block the device from pinging after it is triggered.
4.11
WPC Qi wireless power transfer
The flowchart in the figure below shows the steps required to reach power transfer in the Baseline Power Profile
(BPP) according to Qi 1.2.4.
UM3161
WPC Qi wireless power transfer
