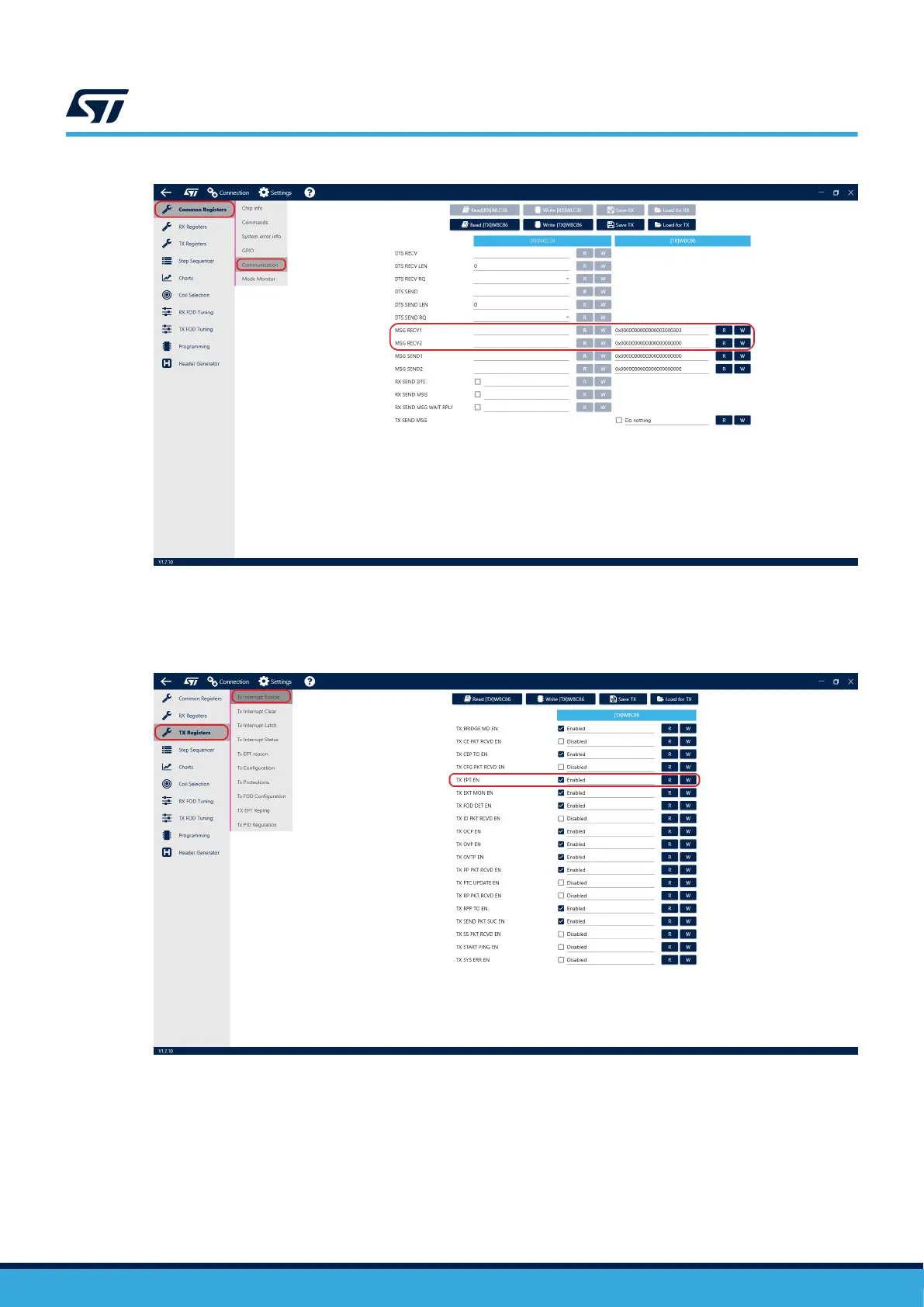

Figure 39. Received message

However, the values in the buffer are updated frequently, therefore reading the RX EPT reason requires using a

host controller triggered to an RX EPT packet interrupt.

Figure 40. EPT interrupt setting

The GUI enables the user to set a debounce value for EPT conditions. This means that the device does not

terminate the power transfer immediately upon registering an EPT condition, but rather after registering a number

of conditions greater than the specified value. As an example: when the debounce is set to 2 and the device

temperature exceeds the set overtemperature threshold, the device terminates power transfer only after

consecutive temperature measurements exceed the threshold.
