Stihl MDG 1 User Manual

MDG 1
English
22
STIHL diagnostic software and STIHL
analyzers are designed for analyzing
specific components, troubleshooting
and making adjustments.
MDG 1 Engine Analyzer
– Country-specific safety precautions
and the safety instructions in the
user manuals must be observed
when the power tool and engine
analyzer are started.
– To reduce the risk of personal injury,
do not operate the engine analyzer
if it is damaged or not properly
assembled.
– Use the engine analyzer only for
testing STIHL power tools made in
2000 and later.
– Visual inspection – check power tool
for external damage.
– Look for leaks – if there is fuel
leakage, do not start the engine.
– Before starting the test, always take
precautions to eliminate the risk of
accidents and injury from contact
with the power tool's attachment.
Position power tool accordingly and
mount safety devices or
accessories (e.g. cutterless chain) if
necessary.
– Use only spark plugs of the type
recommended by STIHL.
– Connect the engine analyzer
between the spark plug and spark
plug boot.
– Make sure the contacts are firmly
seated – grounding clips must
engage spark plug's hexagon.

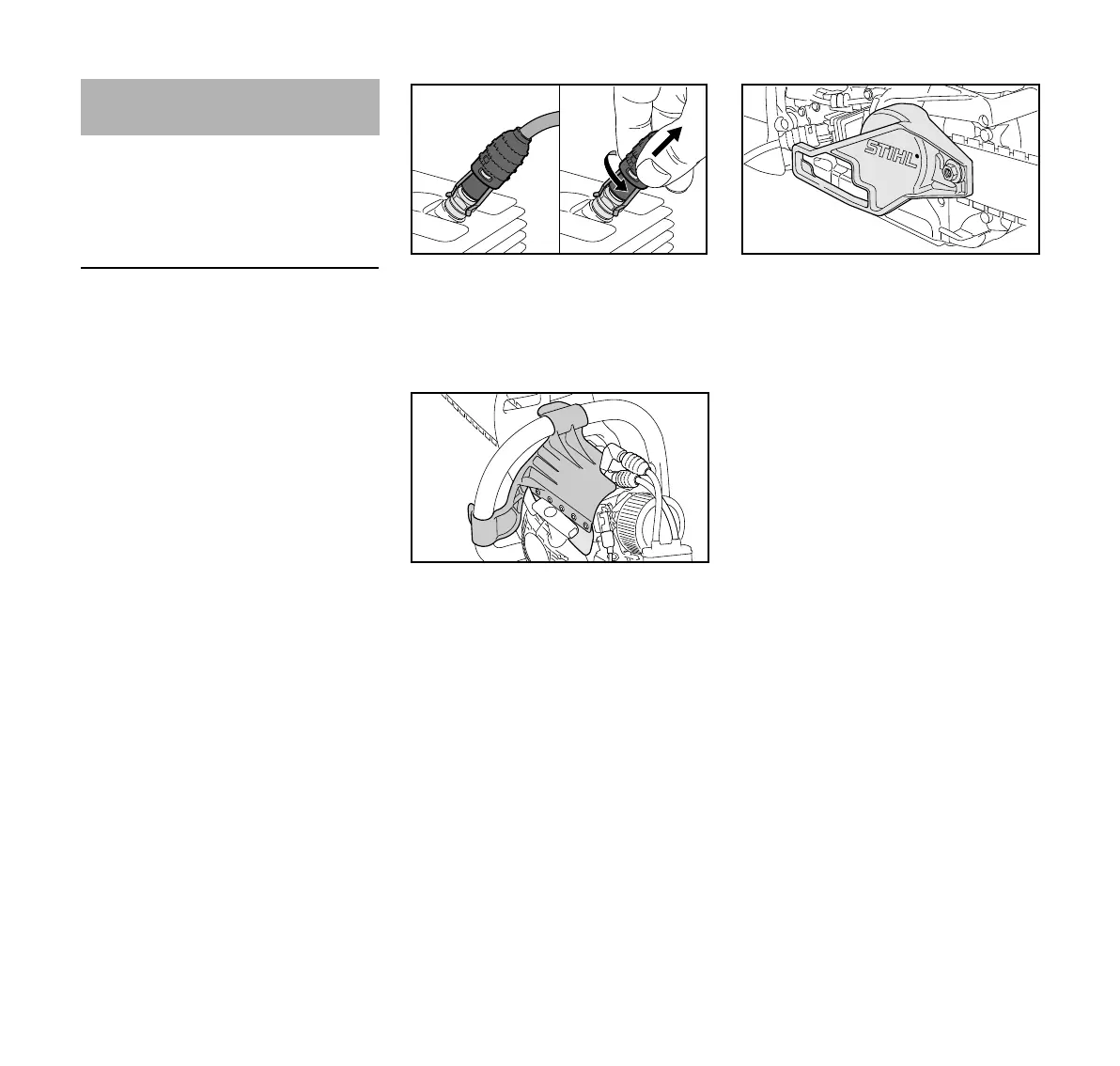

– Pull off the boot – turn slightly
counterclockwise and remove.
– On chainsaws with a one-piece
shroud, mount the cover and
cutterless chain to reduce the risk of
injury from the rotating fanwheel
and risk of engine damage due to
overheating.
– Clip the cover the the front handle –
cover must locate against outside of
fan housing.
– On chainsaws on which the clutch
drum or spur sprocket is exposed
after connecting the engine
analyzer, mount the cover and
cutterless chain to reduce the risk of
injury.
– On chainsaws on which the air filter
cannot be held in place by the
carburetor box cover after
connecting the engine analyzer:
Secure air filter with nut (1138 140
9500) to reduce the risk of engine
damage.
– Wear personal protective
equipment.
– Fuel, prepare and start the power
tool as described in the instruction
manual.
– Never run the engine indoors or in
poorly ventilated locations – risk of
fatal injury from breathing toxic
fumes
.
– Carry out adjustments with extreme
care because of the increased risk
of accidents and injury – improper
handling can result in burns and
other serious injuries.
– User entries in the computer are not
possible during the test with the
engine running – the test run is
finished by shutting off the engine.
Using the Unit
5901BA010 KN
1.
2.
5901BA007 KN
5901BA008 KN
