Stober SC6 Series User Manual

STOBER 9 | Connection
05/2019 | ID 442790.01
101
9.6.1 Power cables
Synchronous servo motors and Lean motors from STOBER are equipped with plug connectors as standard.
STOBER provides suitable cables in various lengths, conductor cross-sections and connector sizes.

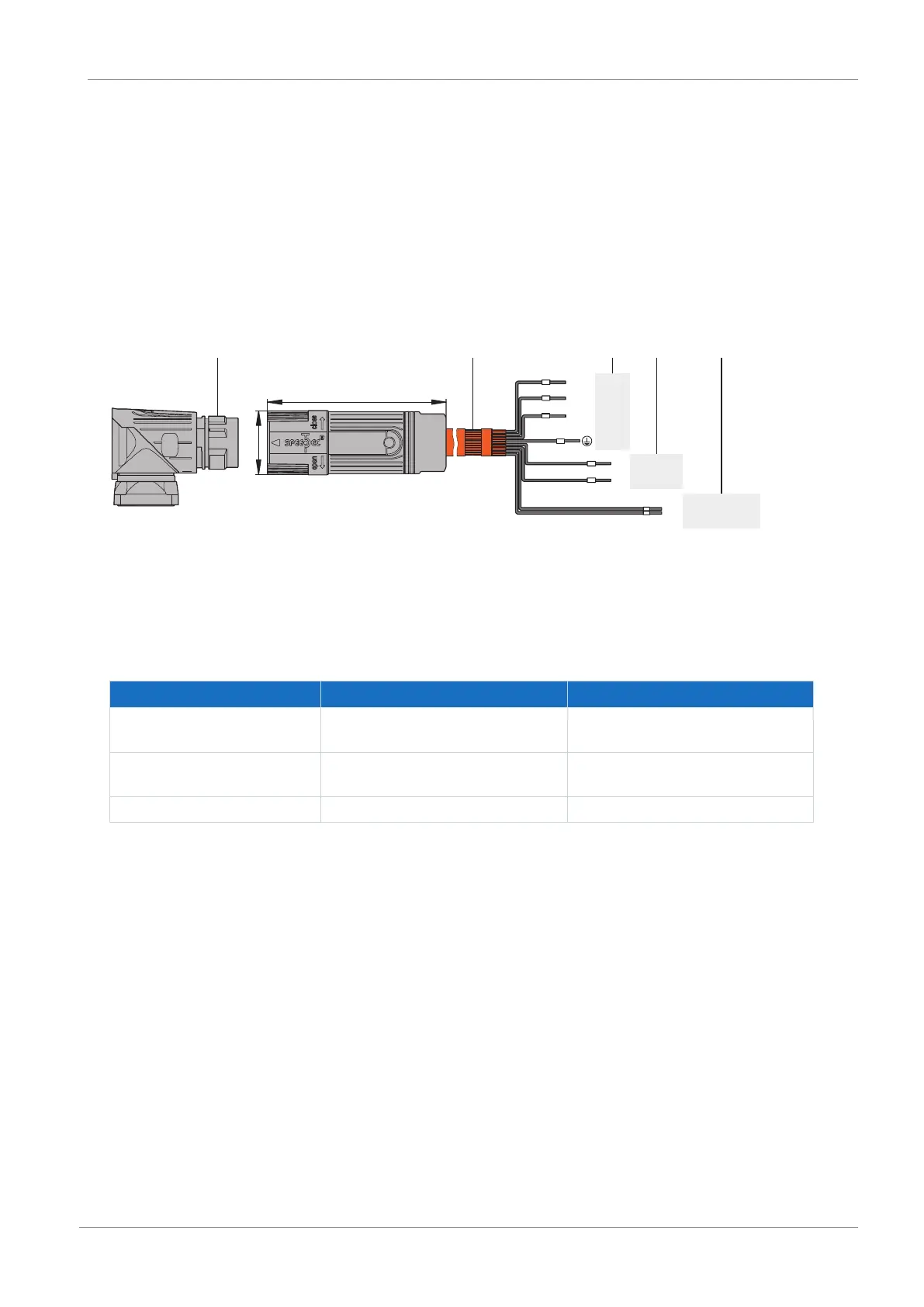

9.6.1.1 Connection description
Depending on the size of the motor plug connector, power cables are available in the following designs:
§ springtec quick lock for con.15
§ speedtec quick lock for con.23 and con.40
1
2
3 4
5
2
x
PE
y
1
3
U
V
W
6
5
6
5
8
7
8
7
1BD2
1BD1
1TP2
1TP1
1
2
3
4
1: Plug connector
2: STOBER power cable, cable shield
3: Connection to terminal X20, motor
4: Connection of terminal X300, brake
5: Connection to terminal X2, temperature sensor
Motor type Connection Size 0 to 2
Synchronous servo motor,
asynchronous motor
Without output choke 50m, shielded
Synchronous servo motor,
asynchronous motor
With output choke 100m, shielded
Lean motor Standard 50m, shielded
Tab. 105: Maximum cable length of the power cable [m]
