STOBER 9 | Connection
05/2019 | ID 442790.01
91

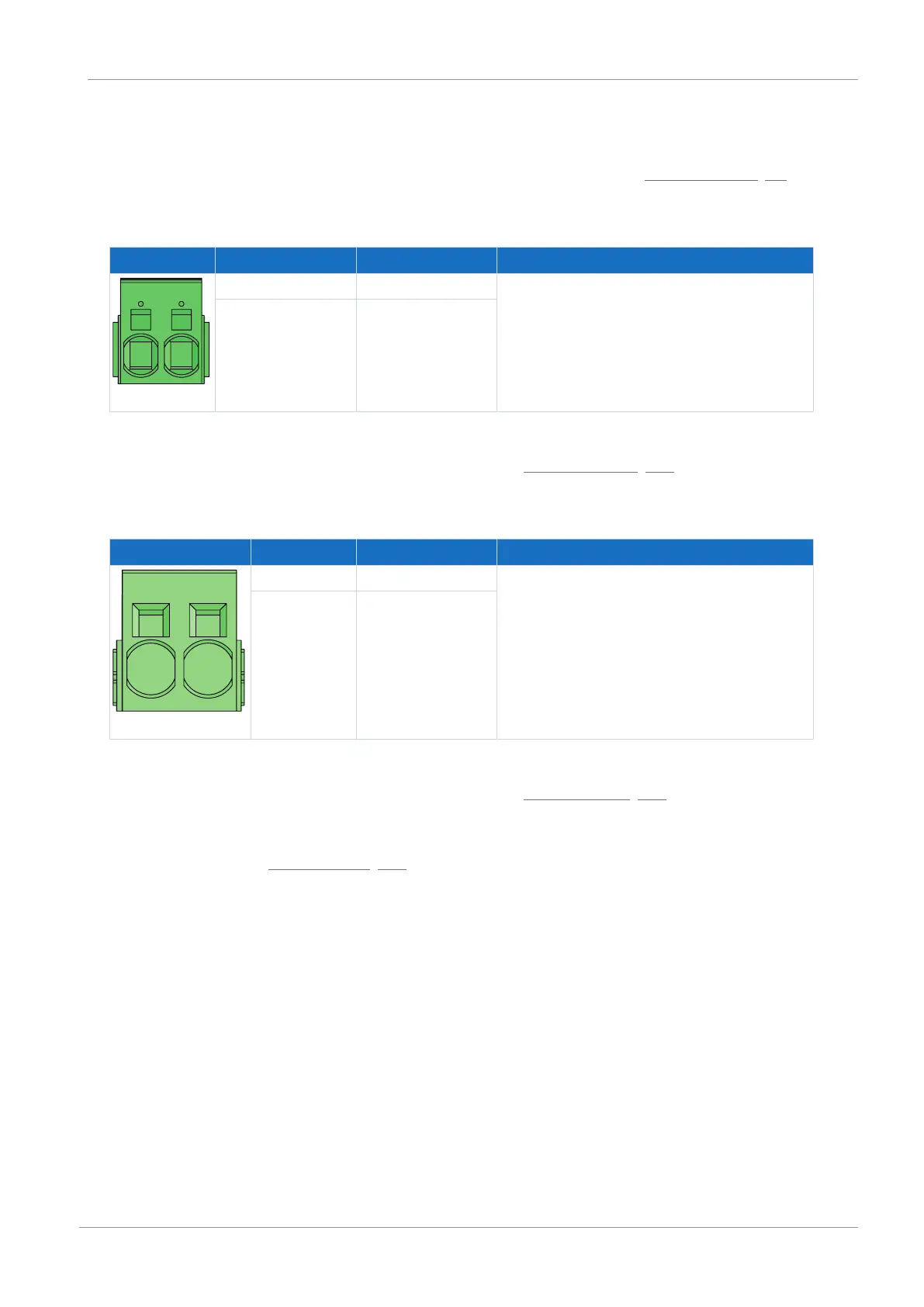

9.4.15 X22: DC link connection
Terminal X22 is available for the DC link connection of the drive controller.
For setting up the Quick DC-Link, note the information on project configuration in the chapter DC link connection [}52].
Size 0
Terminal Pin Designation Function
1 | 2
1 D− DC link connection
2 D+
Tab. 87: X22 connection description, size 0
For connecting wiring, observe the terminal specifications in the chapter ISPC 5 -STGCL-7,62 [}192].
Sizes 1 and 2
Terminal Pin Designation Function
1 | 2
1 D− DC link connection
2 D+
Tab. 88: X22 connection description, sizes 1 and 2
For connecting wiring, observe the terminal specifications in the chapter ISPC 16 -ST-10,16 [}192].
Wiring example
The example in the chapter Wiring examples [}193] illustrates the basic connection to Quick DC-Link DL6B based on a DC
link connection.
