Stober SC6 Series - Fig. 7 FZMU (1), FZZMU (2) Dimensional Drawing; Fig. 8 FZMU, FZZMU Drilling Diagram; Tab. 51 FZMU, FZZMU Dimensions [MM]

STOBER 5 | Technical data
05/2019 | ID 442790.01
49
Dimensions
Dimension FZMU 400×65 FZZMU 400×65
ID No. 49010 53895
L x D 400 × 65 400 × 65
H 120 120
K 6.5 × 12 6.5 × 12
M 430 426
O 485 450
R 92 185
U 64 150
X 10 10
Tab. 51: FZMU, FZZMU dimensions [mm]
R
L
1
2
U
K
O
M X
øD
H
R
K
U

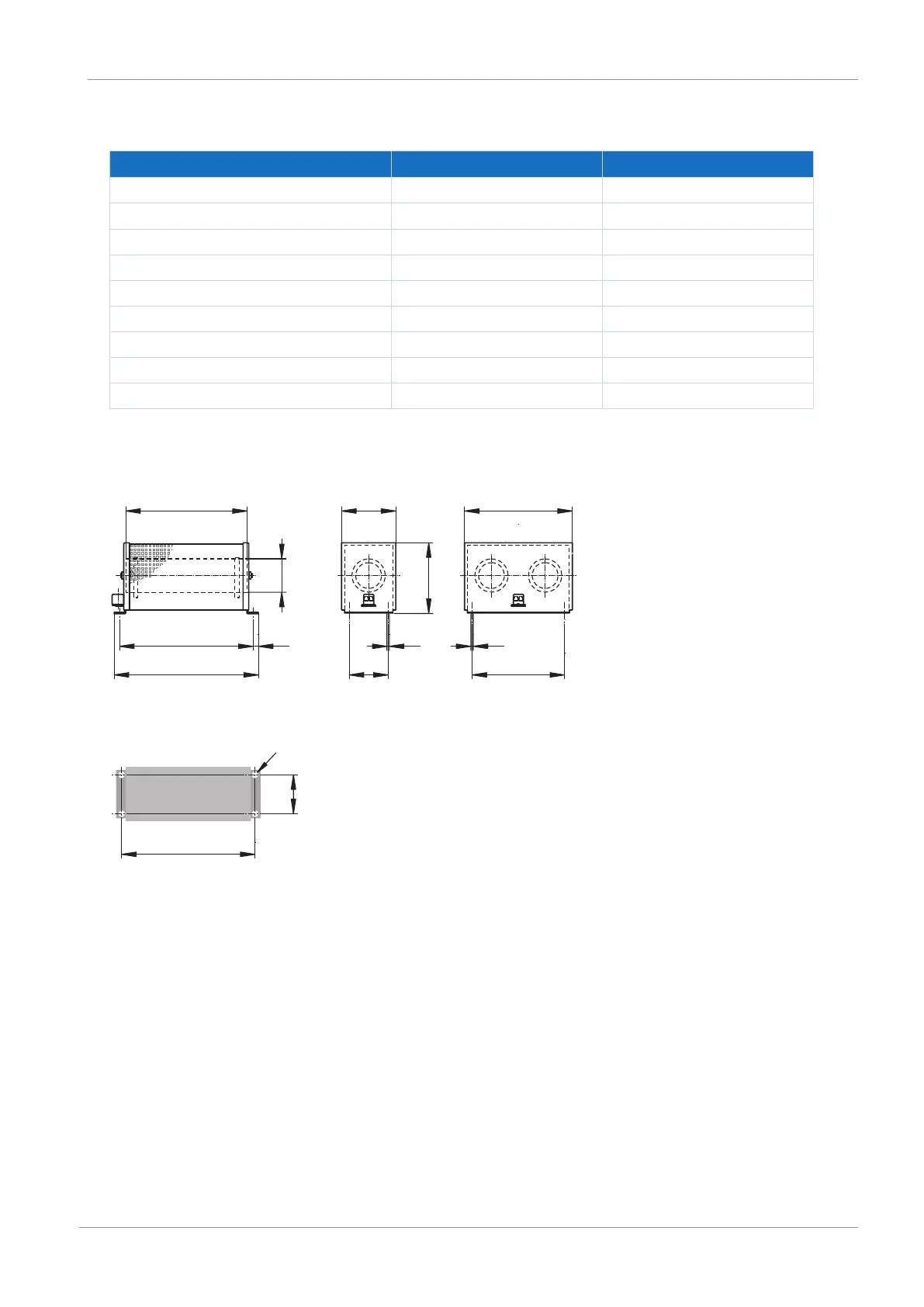

Fig.7: FZMU (1), FZZMU (2) dimensional drawing
U
M
K
Fig.8: FZMU, FZZMU drilling diagram
