12.1.5.2 PROFINET network connection
The Act. and Link LEDs at X200 and X201 on the top of the device indicate the state of the PROFINET network connection.
Link Link
2
4
3
1
X200 X201
Act Act

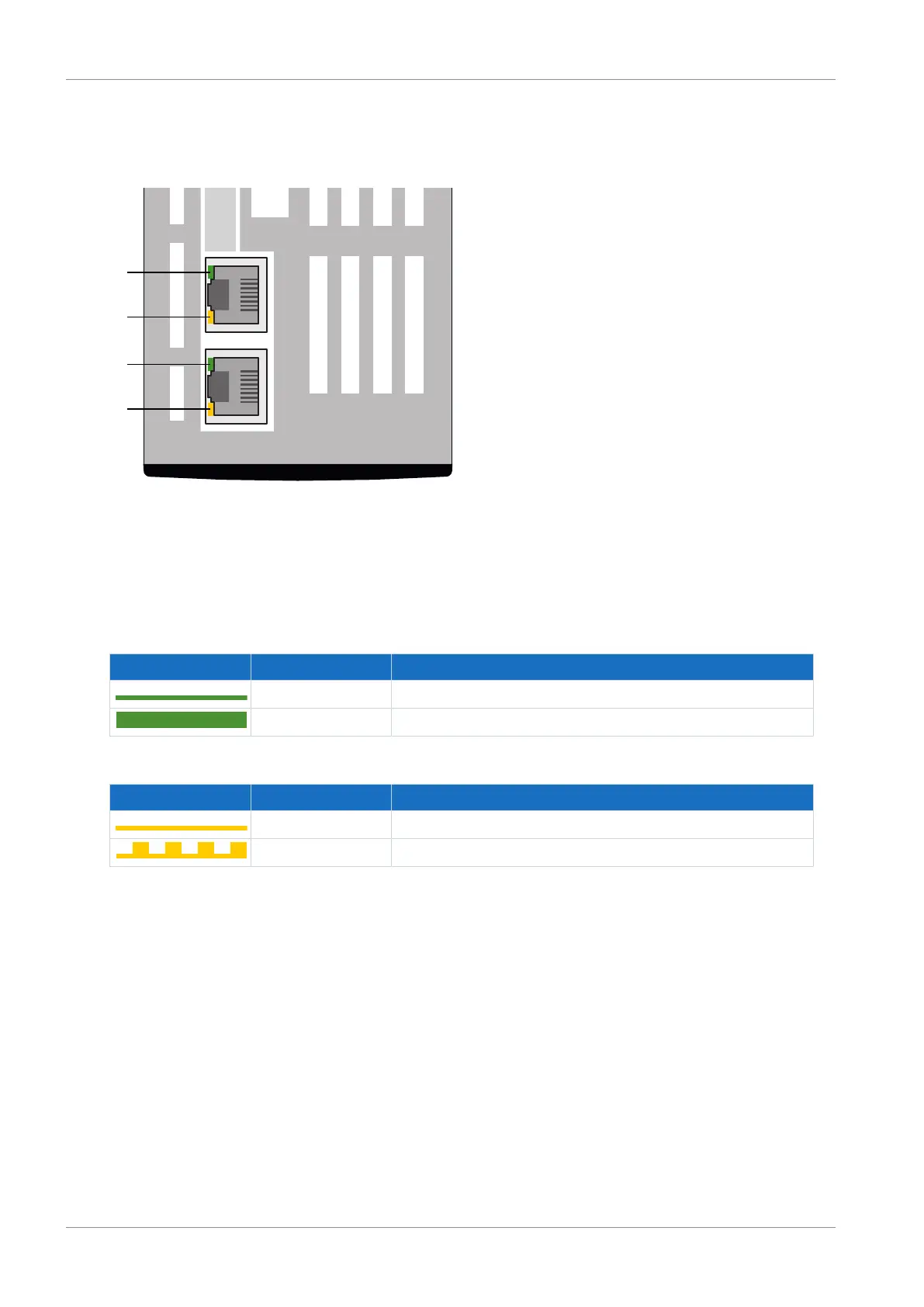

Fig.29: LEDs for the state of the PROFINET network connection
1 Green: Link at X201
2 Yellow: Activity at X201
3 Green: Link at X200
4 Yellow: Activity at X200
Green LED Behavior Description
Off No network connection
On Network connection exists
Tab. 145: Meaning of the green LEDs (Link)
Yellow LED Behavior Description
Off No data exchange
Flashing Active data exchange with IO controller
Tab. 146: Meaning of the yellow LEDs (Act.)
