9 | Connection STOBER
102
05/2019 | ID 442790.01

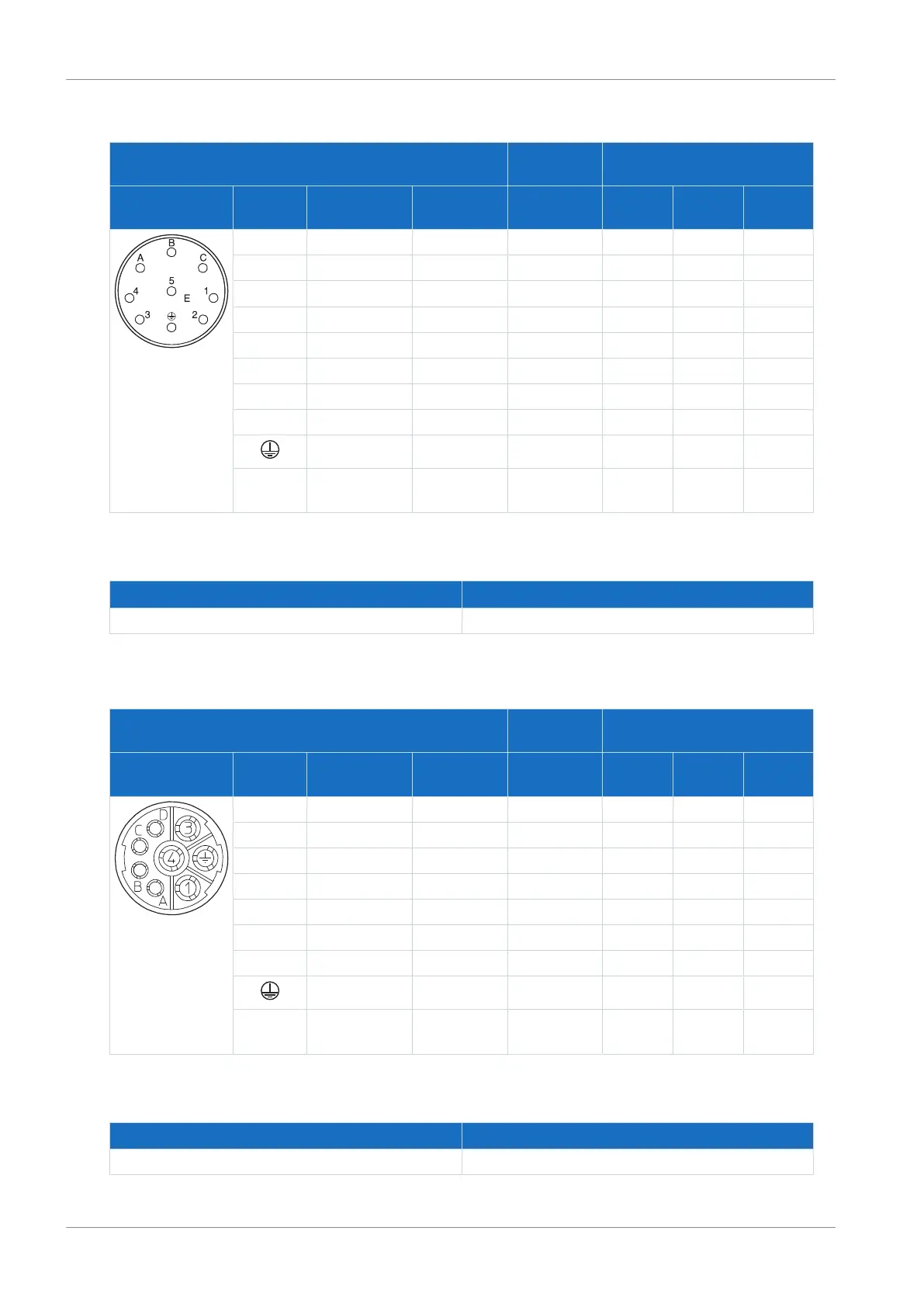

Power cables – con.15 plug connector
Motor
(1)
Cable
(2)
Drive controller
(3) – (5)
Motor connection
diagram
Pin Designation Int. motor
Core color
Core No./
Core color
Pin
X20
Pin
X300
Pin
X2
A 1U1 BK 1 1
B 1V1 BU 2 2
C 1W1 RD 3 3
1 1TP1
a)
BK 7 7
2 1TP2
a)
WH 8 8
3 1BD1 RD 5 5
4 1BD2 BK 6 6
5
PE GNYE GNYE 4
Housing Shield Shield
contact
Tab. 106: con.15 power cable pin assignment
a) PTC
Length x [mm] Diameter y [mm]
42 18.7
Tab. 107: con.15 connector dimensions
Power cables – con.23 plug connectors
Motor
(1)
Cable
(2)
Drive controller
(3) – (5)
Motor connection
diagram
Pin Designation Int. motor
Core color
Core No./
Core color
Pin
X20
Pin
X300
Pin
X2
1 1U1 BK 1 1
3 1V1 BU 2 2
4 1W1 RD 3 3
A 1BD1 RD 5 5
B 1BD2 BK 6 6
C 1TP1
a)
BK 7 7
D 1TP2
a)
WH 8 8
PE GNYE GNYE 4
Housing Shield Shield
contact
Tab. 108: con.23 power cable pin assignment
a) PTC
Length x [mm] Diameter y [mm]
78 26
Tab. 109: con.23 connector dimensions
