4.1.4.3 DC link connection
If you want to connect SC6 drive controllers into the DC link group, you will need Quick DC-Link modules of type DL6B.
You receive the DL6B rear section modules in different designs for a horizontal connection, suitable for the size of the drive
controller.
The quick fastening clamps for attaching the copper rails and an insulation connection piece are contained in the scope of
delivery. The copper rails are not included in the scope of delivery. These must have a cross-section of 5 x 12mm. Insulation
end sections are available separately.

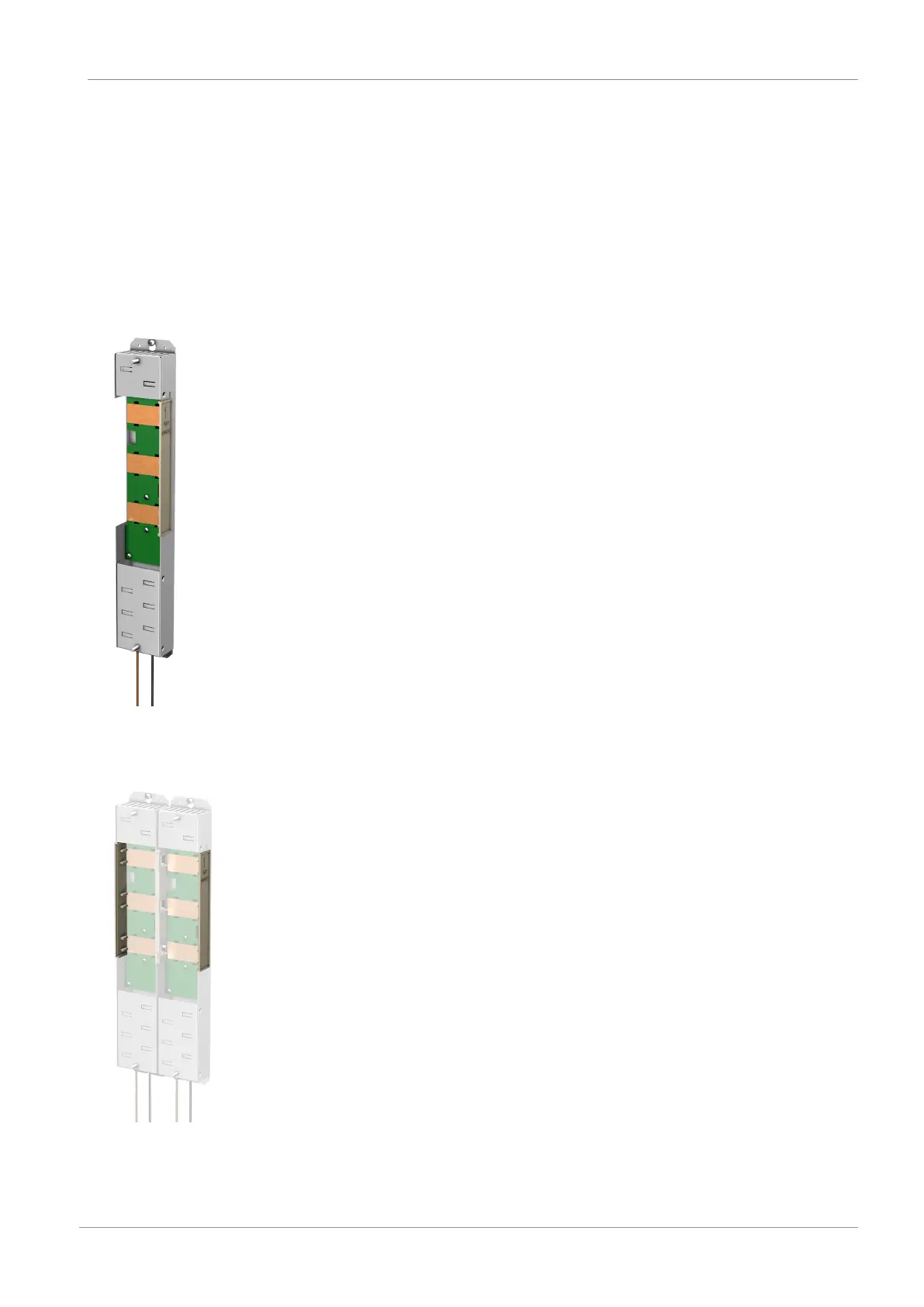

Quick DC-Link DL6B for drive controller
The following designs are available:
DL6B10
ID No. 56655
Rear section module for size 0 drive controller:
SC6A062
DL6B11
ID No. 56656
Rear section module for size 1 or 2 drive controller:
SC6A162 and SC6A261
Quick DC-Link DL6B insulation end section
ID No. 56659
Insulation end sections for the left and right termination of the group, 2 pcs.
