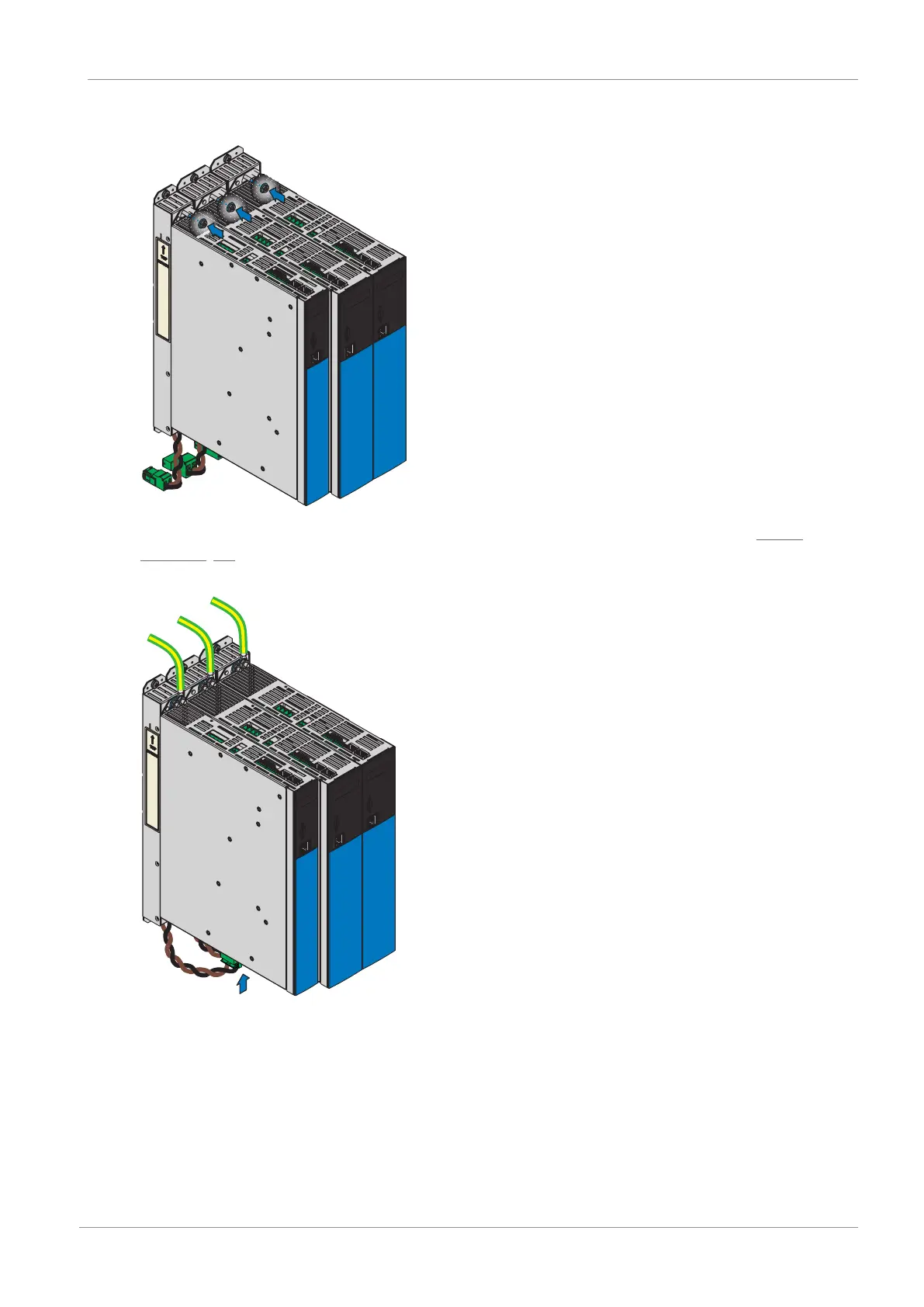

3. Fasten the drive controller to both threaded bolts of the Quick DC-Link module using the nut and washer assemblies
(M5). The nut and washer assemblies are included with the Quick DC-Link module.
4. Connect the grounding conductor to the ground bolt. Note the instructions and requirements in the chapter Housing
grounding [}77].
5. Attach the X22 terminal of the Quick DC-Link module.
ð The installation is completed. In the next step, connect the drive controller.
