65 B58FZS 0000000078 EN 002
OPERATION
Depending on the equipment of the tractor,
different operating levers can be installed for the
front loader. In most cases, it is a cross lever or a
joystick. On some tractors, there are 2 operating
levers for the control of the front loader.

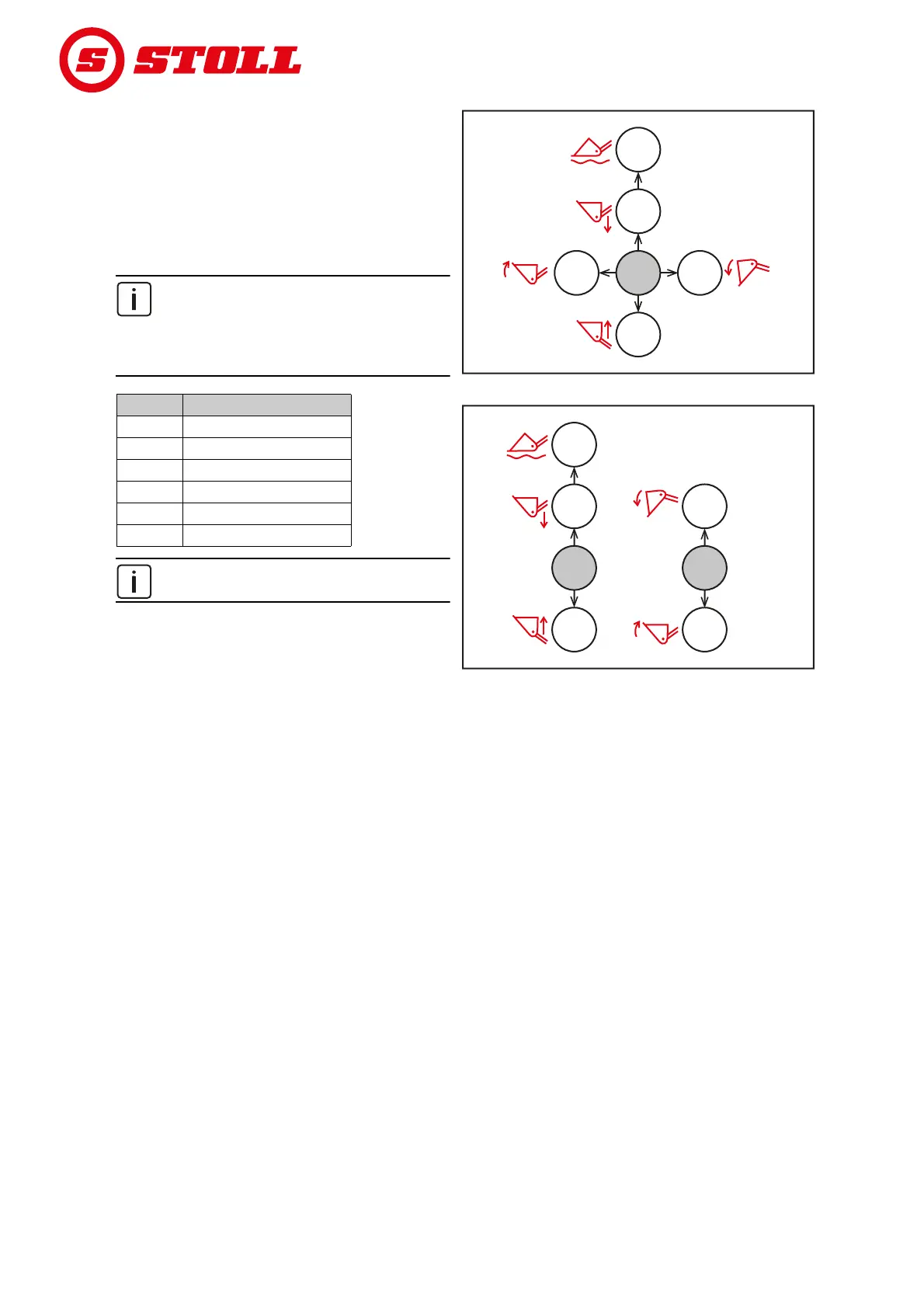

The figures show a top view of the assignment for
one operating lever (see Fig. 55) and 2 operating
levers (see Fig. 56).
The symbols marked in red are also found
on the operating lever in the tractor. If they
are missing, you must affix such symbols
according to DIN EN 12525 to clearly mark
each function.
The float position is the only position of the
lever in which it may latch in.
Fig. 55 Assignment with one operating lever
Fig. 56 Assignment with 2 operating levers
0
DD
SS
CC
B01P
0
AA
BB
Setting Assignment
0 Zero setting
A Dumping
B Scooping
CLifting
D Lowering
S Float position
