STONEX R20 - Missing Line Measurement

Stonex R20 – User Manual 42
P
0
: Station
P
X
: Target point
P
1
: Surface point

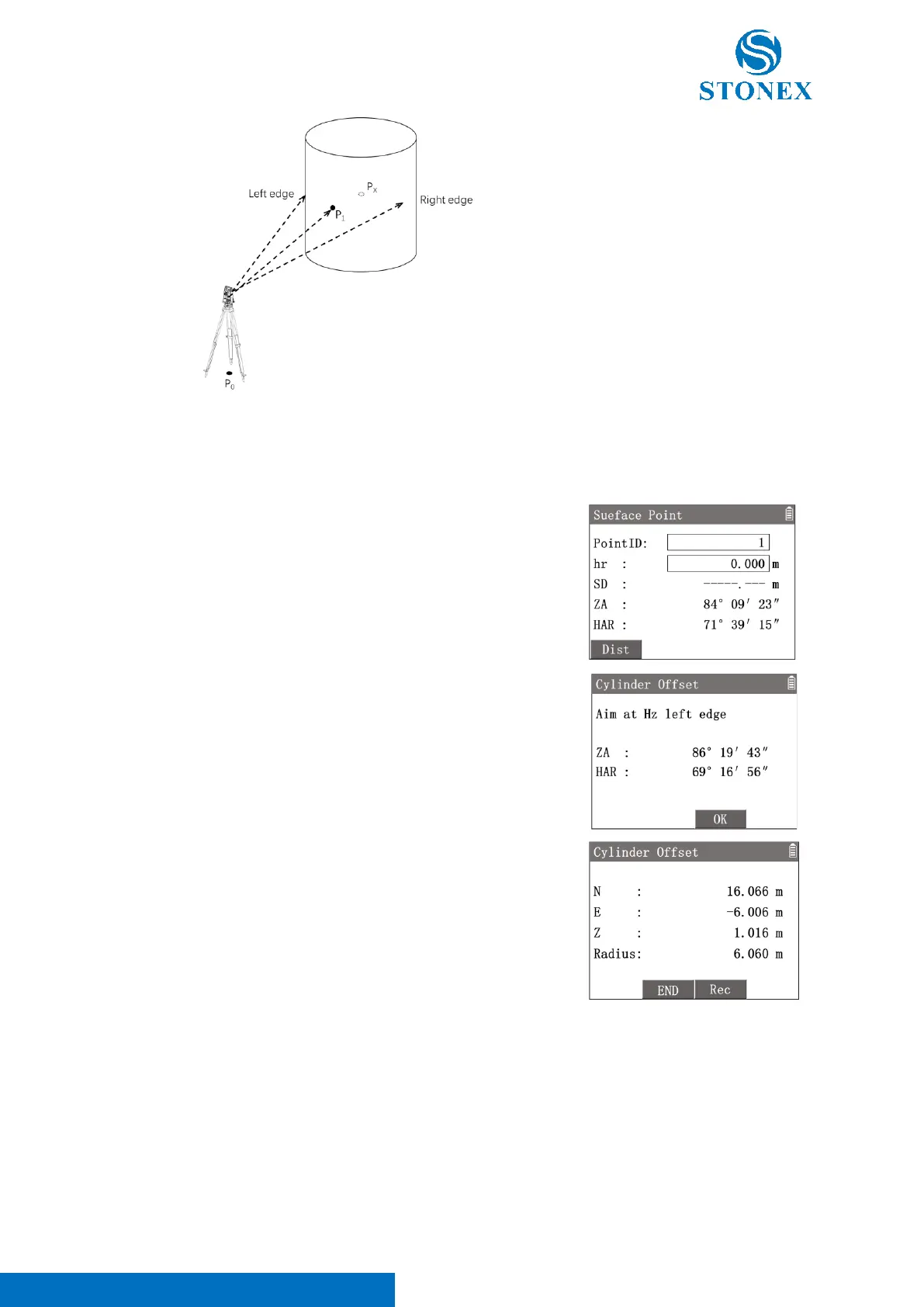

Cylinder Offset:
By measuring a surface point and two edges, cylinder offset program can calcultae the center coordinates and
the radius of the cylinder.
1. Press [7]〈7.Cylinder Offset〉to enter program.
2. Aim at a surface point of the cylinder and press [F1]【Dist】to
trigger the distance measurement. Check the result then press
[F3]【OK】to record.
3. Rotate the instrument horizontally to aim the reticle at the left
edge of the cylinder. Then press [F3]【OK】.
4. Rotate the instrument horizontally to aim the reticle at the right
edge of the cylinder. Then press [F3]【OK】.
5. Workspace display the calculated center coordinates and the
radius of the cylinder.
[F2]【END】: Exit the program.
[F3]【Rec】: Record the center point coordinates.
7.2. Missing Line Measurement
This application is used to measure and calculate the SD/HD/VD of two target points.
