page 6–73

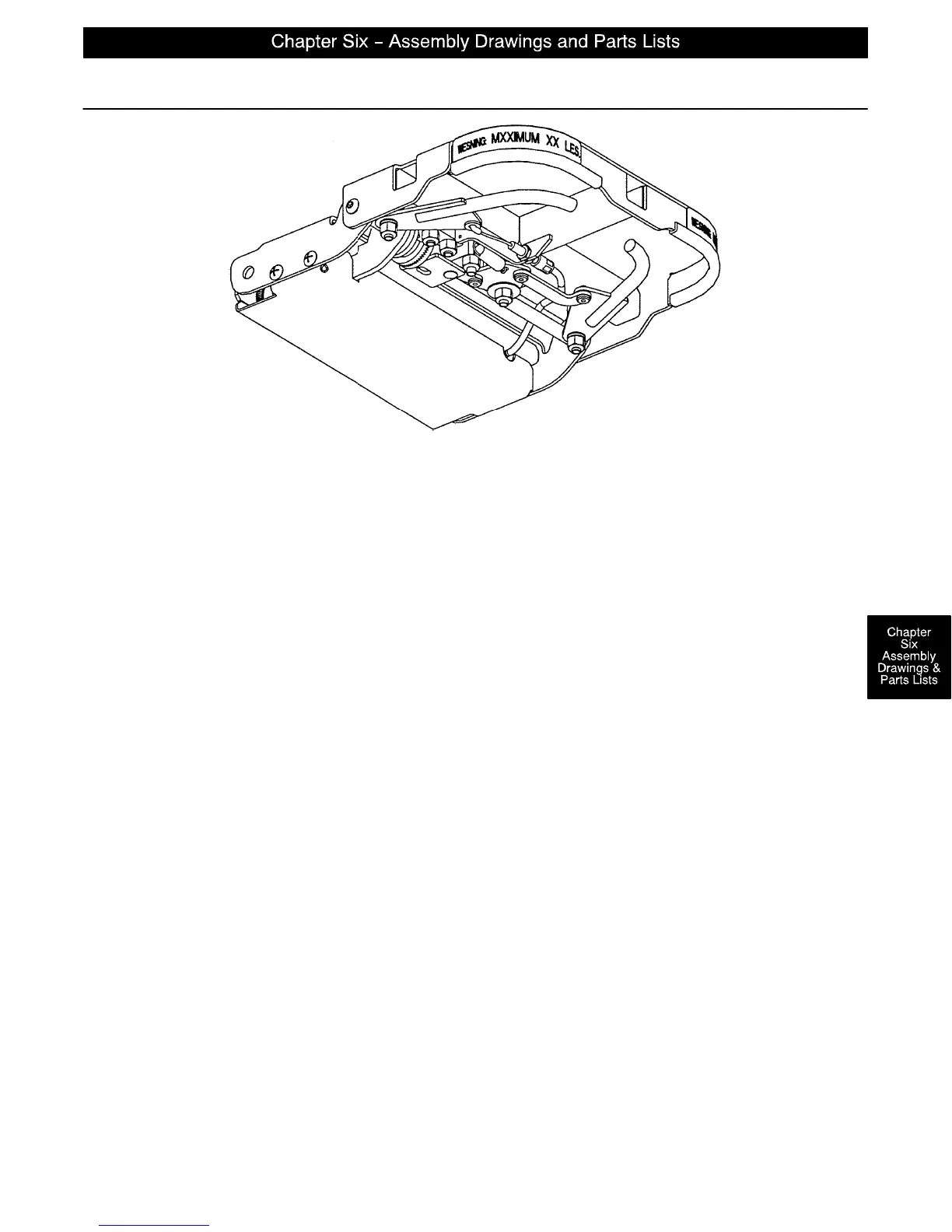

1069–33–10 Optional Dual Articulating Head Piece Assembly
BOTTOM
VIEW OF
ASSEMBLY
Item Part No. Part Name Qty.
A 1068–234–36 Head Piece Handle Grip 2
B 1069–33–30 Neck Section Weldment 1
C 1069–33–40 Head Section Weldment 1
D 1069–33–60 Handle Weldment, Left 1
E 1069–33–65 Handle Weldment, Right 1
F 1069–33–70 Anti–Rotation Gear 2
G 1069–33–75 Neck Cover 1
H 1069–33–78 Neck Torque Block Spacer 1
J 1069–33–79 Head Torque Block Spacer 1
K 1069–33–81 Gear Adjustment Block 2
L 1069–33–82 Head Torque Block 1
M 1069–33–83 Neck Torque Block 1
N 1069–33–84 Head Toggle 1
P 1069–33–85 Neck Toggle 1
Q 1069–33–86 Toggle Link 2
R 1069–33–88 Handle Link 1
S 1069–33–89 Rivet 4
T 1069–33–93 Head Pivot Shaft 1
U58–56 Edge Trim 2
V 7900–1–102 Velcro Pile 2
W 1069–33–95 Neck Release Cable 1
X11–65 Steel Washer 2
Y11–180 Steel Washer 2
Z14–2 Nylon Washer 4
AA 14–20 Nylon Washer 4
AB 16–28 Nylock Nut 10
AC 25–16 Semi–Tubular Rivet 2
AD 38–437 Extension Spring, Rt. Handle 1
AE 38–438 Extension Spring, Lt. Handle 1
AF 4–74 Soc. But. Hd. Cap Screw 2
AG 7–19 Truss Hd. Screw 4
AH 1068–91–21 Weight Label 2
AJ 13–10 External Tooth Lock Washer 4
AK 11–146 Nylon Washer 4
