page 6–98

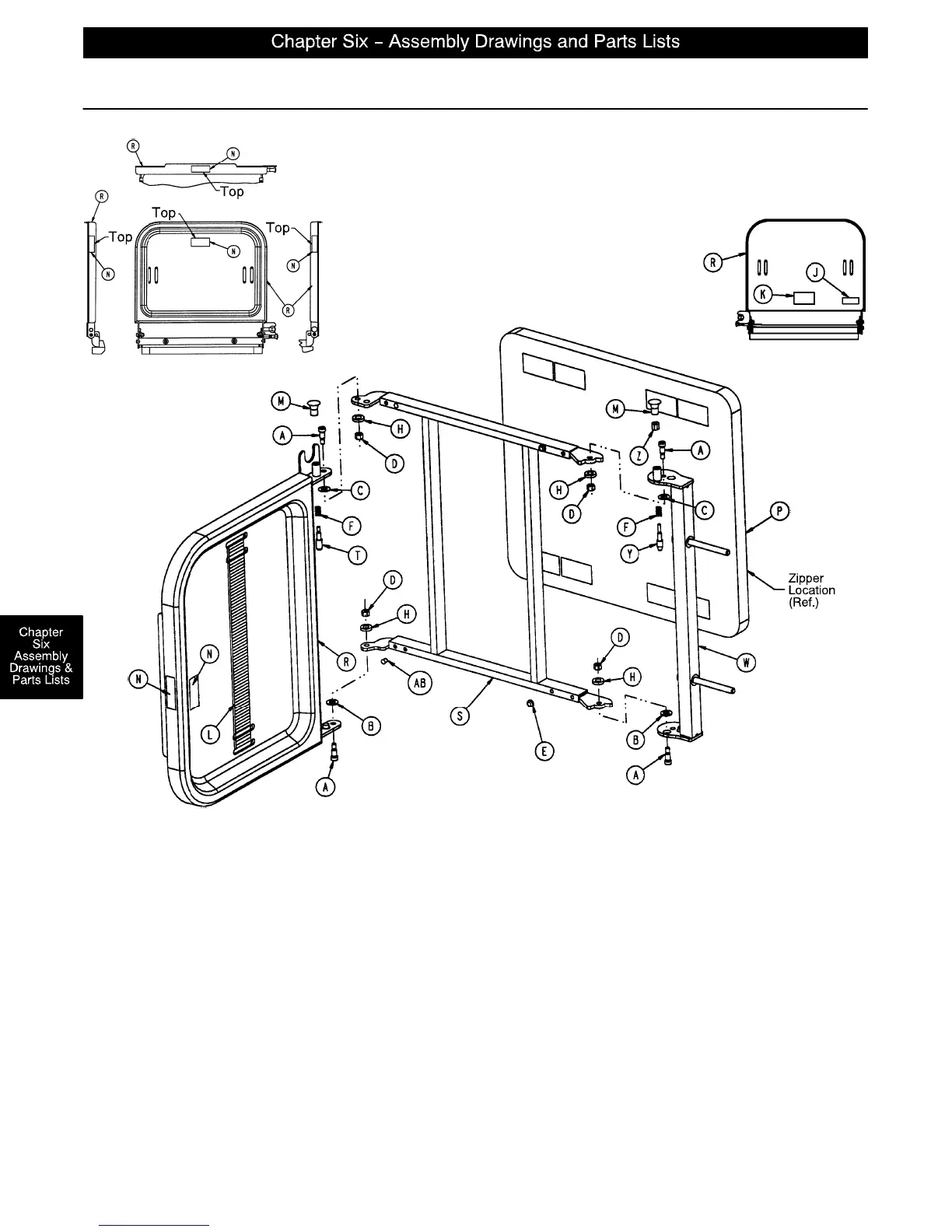

1010–50–100 Optional Foot Extension/Defibrillator Tray Assembly
Label Detail
Label Detail
Assembly part number 1010–50–210
(reference only)
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A8–49 Socket Hd. Shoulder Bolt 4 M 1010–50–50 Knob 2
B14–20 Nylon Washer 2 N 1010–50–57 “Max. Weight” Label 4
C14–21 Nylon Washer 2 P 1010–50–205 Cushion Assembly 1
D16–28 Fiberlock Nut 4 R 1010–50–218 Foot & Tray Board 1
E37–52 Rubber Bumper 2 S 1010–50–225 Pivot Frame Weldment 1
F38–133 Spring 2 T 1010–50–242 Pin Lock 1
H52–17 Spacer 4 W 1010–50–246 Base Mounting Ass’y1
J 1010–50–17 Specification Label 1 Y 1010–50–248 Lower Pin Lock 1
K 1010–50–19 “Push/Pull” Label 1 Z 1010–50–250 Pin Adjuster 1
L 1010–50–21 Long Strap 1 AB 721–31–65 Hole Plug
