page 6–99

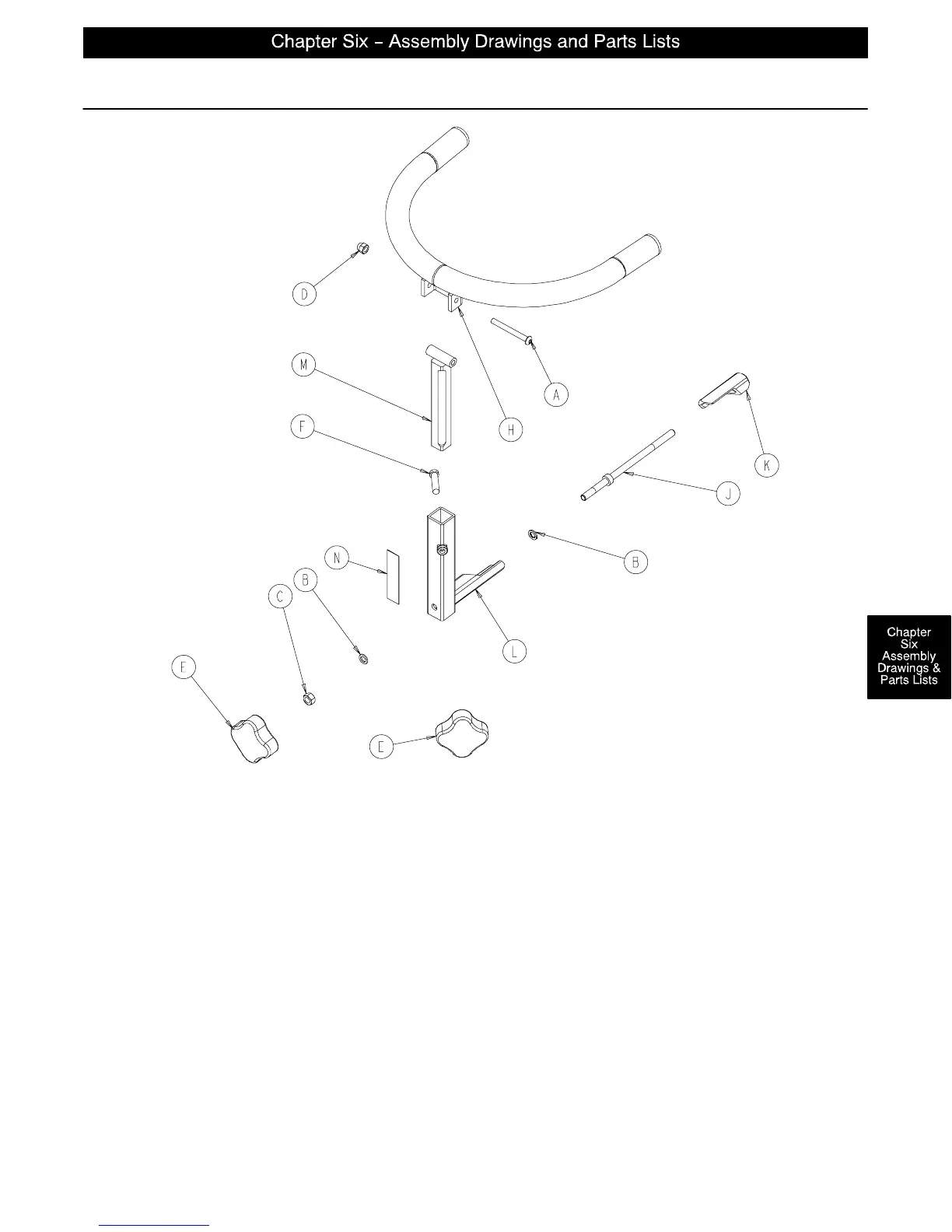

1068–250 Optional Superior Wrist Rest Assembly
Item Part No. Part Name Qty.
A4–163 But. Hd. Cap Screw 1
B14–3 Fiber Washer 2
C15–12 Hex Nut 1
D17–4 Acorn Nut 1
E24–54 Knob, Female 2
F4–510 Low Profile Soc. Hd. Cap Scr. 1
H 1068–50–55 Tube Weldment 1
J 1068–250–41 Wedge Bolt 1
K 1068–250–42 Locking Wedge 1
L 1068–250–50 Base Tube Weldment 1
M 1068–252–55 Support Bar Weldment 1
N 1068–290–50 Specification Label 1
