page 6–50

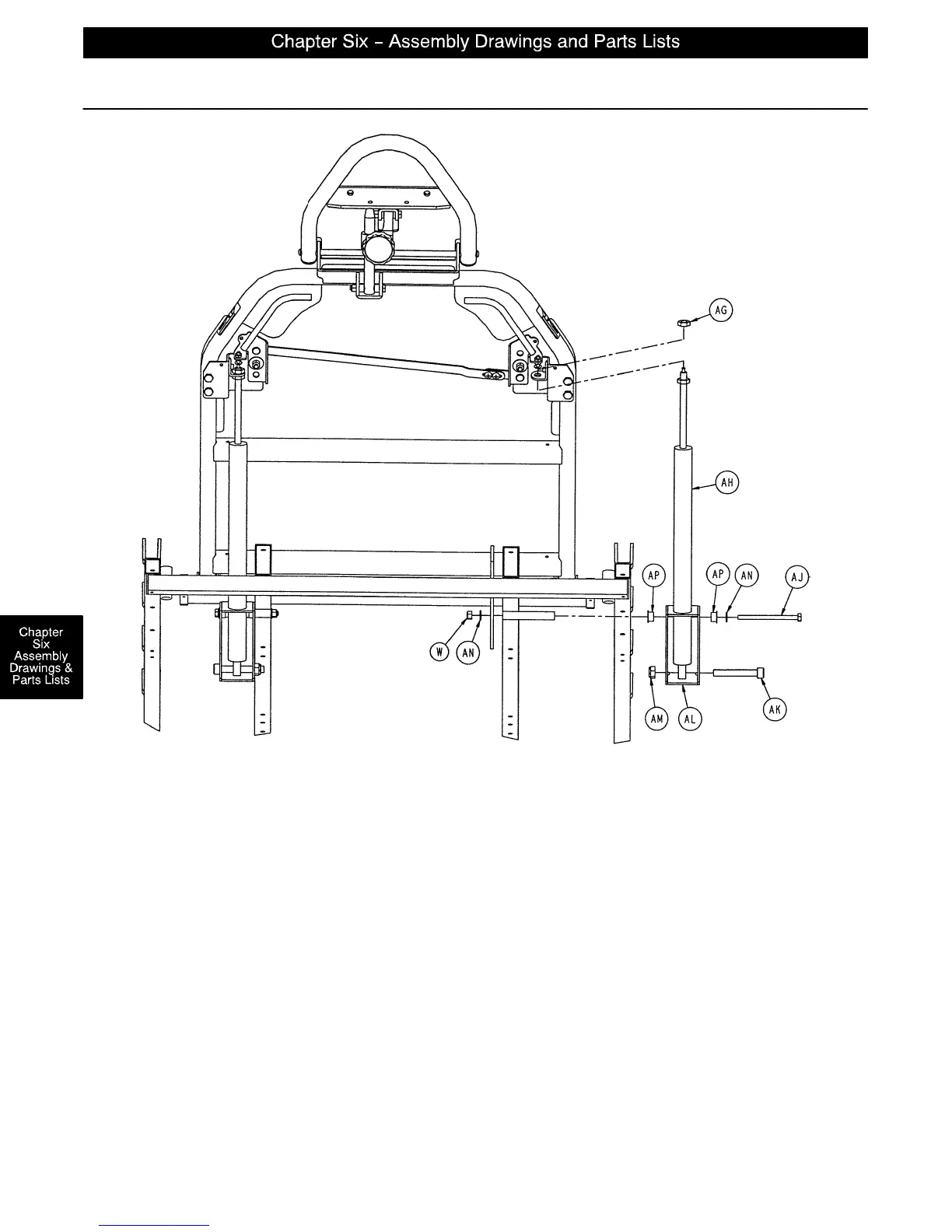

1069–32–15 Optional Single Articulating Pneumatic Fowler Ass’y
Cylinder Assembly – Both Sides
Item Part No. Part Name Qty.
A 1069–31–11 Rivet 4
B 1069–31–41 Handle Pivot Bracket, Left 1
C 1210–31–103 “L” Bracket 2
D 1069–31–46 Handle Pivot Bracket, Right 1
E 1069–31–75 Handle Weldment, Right 1
F 5050–531–200 Red Handle Cover 2
G 1069–31–31 Short Handle Adjustment Link 1
H7–50 Truss Hd. Screw 2
J15–3 Jam Nut 4
K 1069–31–70 Handle Weldment, Left 1
L 1069–31–32 Long Handle Adjustment Link 1
